Description

Price

10

Radiator

709200395

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662534

$2.11

50

Flat Washer

250200082

$0.42

60

Flange Elastic Nut M6

233261434

$4.44

70

Fan Ass'y

709200566

$279.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

110

Filler Neck

709200179

$18.49

120

Filler Neck Hose

709200264

$11.07

130

Hose_Radiator In

709200909

$21.99

140

T-Fitting

509000219

$15.89

150

Pump Hose

709200519

$27.99

155

Pump Hose

709200496

$27.99

160

Radiator Outlet Hose

709200265

$12.63

170

T-Fitting

509000372

$10.33

180

Intermediate Hose

709200904

$23.99

190

Hose Retainer

293650218

$9.39

200

Hex. Flange Screw M6 X 25

207662534

$2.11

210

Flange Elastic Nut M6

233261434

$4.44

220

Thermostat

709200406

$98.99

230

Hose

709200447

$22.49

240

Intermediate Hose

709200520

$24.99

245

Hose

709200497

$48.99

260

Gear Clamp

509000162

$7.29

270

Gear Clamp

509000162

$7.29

275

Gear Clamp

509000162

$7.29

280

Crimp Clamp

293650099

$4.29

290

Norma Gear Clamp

293650098

$4.44

300

Norma Gear Clamp

293650098

$4.44

310

Norma Gear Clamp

293650098

$4.44

330

Coolant Tank Ass'y

709200624

$27.99

330a

Tank Cap

709200587

$5.40

350a

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

360

Spring Clamp

414554800

$0.88

370

Hose Anchor

709200036

$11.12

375

Hex. Flange Screw M6 X 16

207661644

$0.74

380a

Tubing 35 MM 1000MM Long

219704428

$10.99

430

Tubing 35 MM 1000MM Long

219704428

$10.99

450

Fitting

509000914

$7.59

460

Tubing 35 MM 1000MM Long

219704428

$10.99

480a

Tubing 35 MM 1000MM Long

219704428

$10.99

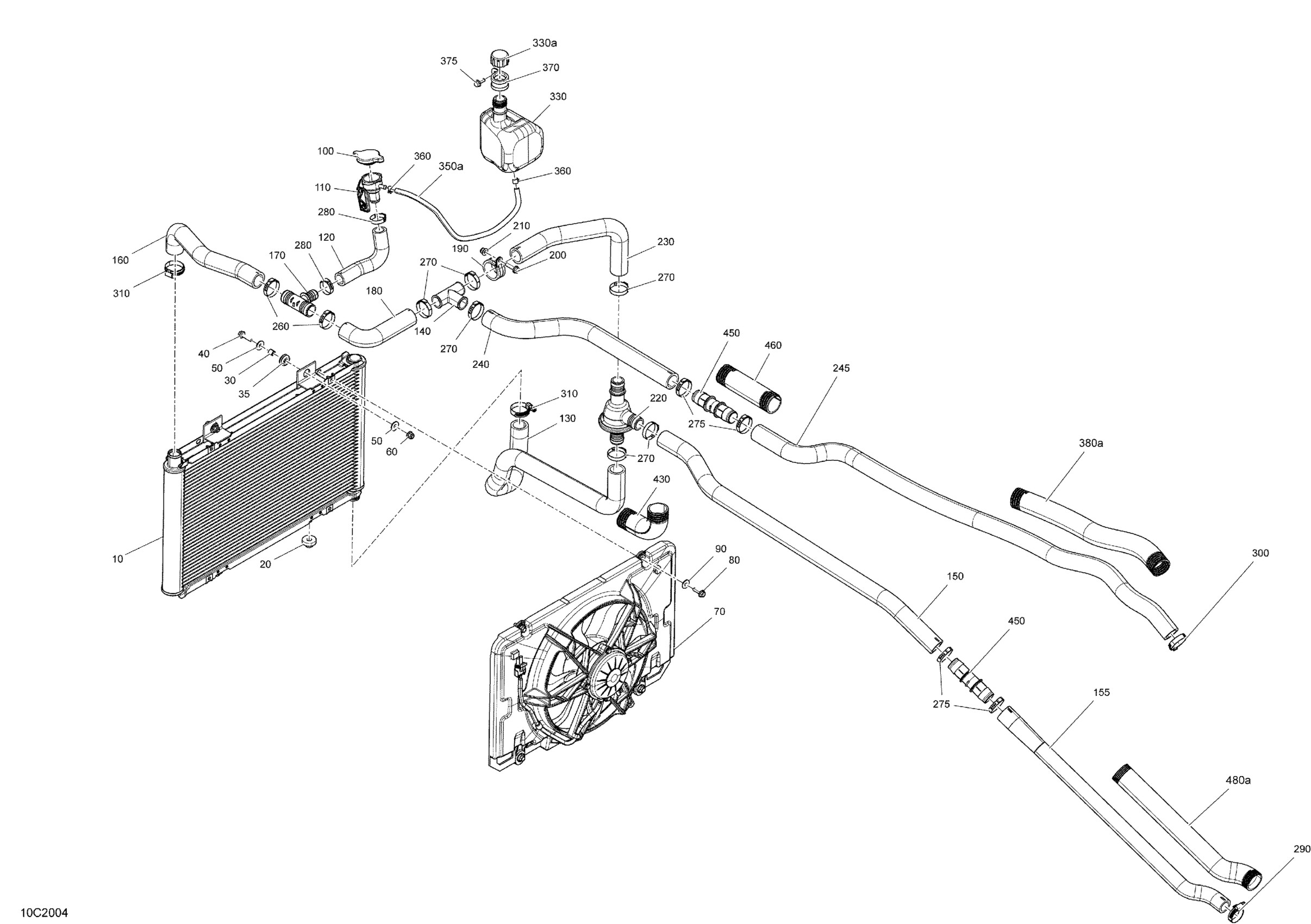

Can-Am 003 - Commander MAX 1000R EFI - International, 2020 01- Cooling - System Diagram

Radiator

Grommet

Bushing

Grommet

Hex. Flange Screw M6 X 25

Flat Washer

Flange Elastic Nut M6

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Filler Neck

Filler Neck Hose

Hose_Radiator In

T-Fitting

Pump Hose

Pump Hose

Radiator Outlet Hose

T-Fitting

Intermediate Hose

Hose Retainer

Hex. Flange Screw M6 X 25

Flange Elastic Nut M6

Thermostat

Hose

Intermediate Hose

Hose

Gear Clamp

Gear Clamp

Gear Clamp

Crimp Clamp

Norma Gear Clamp

Norma Gear Clamp

Norma Gear Clamp

Coolant Tank Ass'y

Tank Cap

Was 415110000 Polyurethane Hose 5.2 mm

Spring Clamp

Hose Anchor

Hex. Flange Screw M6 X 16

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Fitting

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long
