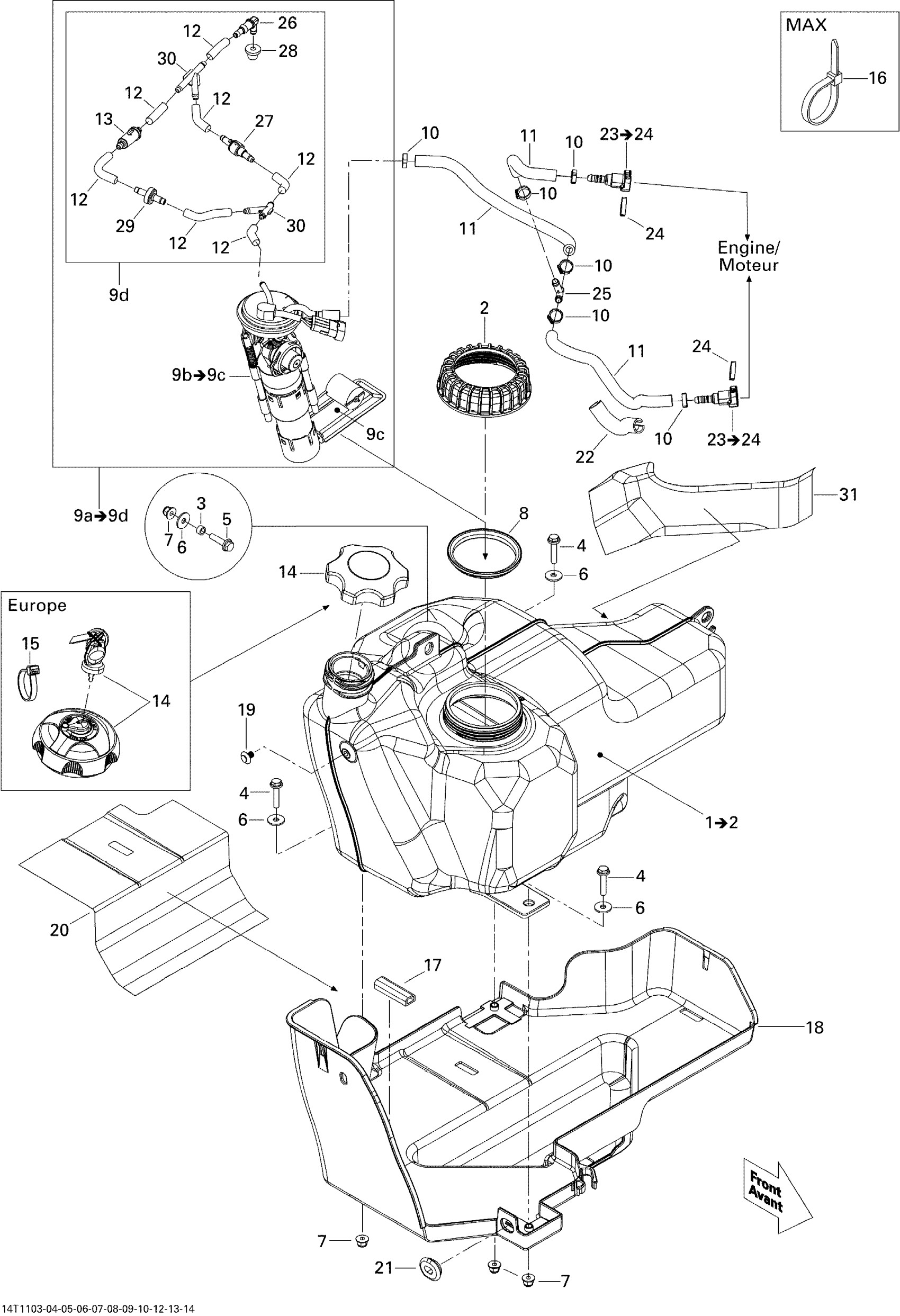

Can-Am Outlander Max 800R EFI Ltd, 2011 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

709000220

$249.99

2

Nut, Fuel Pump Module

513033040

$29.99

3

Bushing | DS 650 X

293900104

$5.50

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Hex. Flange Screw M6 X 25

207662544

$0.64

6

Washer

224060251

$0.58

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Seal

709000208

$14.99

9a

Fuel Pump Kit Ass'y

703500766

$372.49

9b

Not Available As Spare Part - Friction Washer

Unavailable

9c

Fuel Pre-Filter Kit

709000389

$79.49

9d

Fuel Vent Kit

715001288

$33.99

10

Oetiker Clamp

293650046

$2.89

11

Was 709000163 Fuel Line

219704440

$28.99

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Filter

709000330

$7.79

14

Fuel Tank Cap

513033025

$24.49

14

Fuel Tank Cap | Europe

709000267

$45.49

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Tie Wrap 368 mm

293750008

$1.04

17

Was 293200017 Neoprene Seal

219704365

$149.99

18

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

19

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

20

REFLECTING SHEET - Call your local BRP dealership

709000360

Unavailable

21

Oval Washer

705005156

$4.97

22

Was 409901800 Tubing (13 mm)

219704400

$14.49

23

Female Quick Fitting Ass'y

709000125

$15.49

24

Locking Clip

513033135

$5.89

25

Y-Fitting, 5/16''

293710136

$6.49

26

Elbow Male Connector

414580600

$4.23

27

Check Valve

513033469

$31.99

28

Grommet

293720029

$1.59

29

Check Valve

275500398

$10.99

30

Y-Fitting

293710059

$9.69

31

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable
