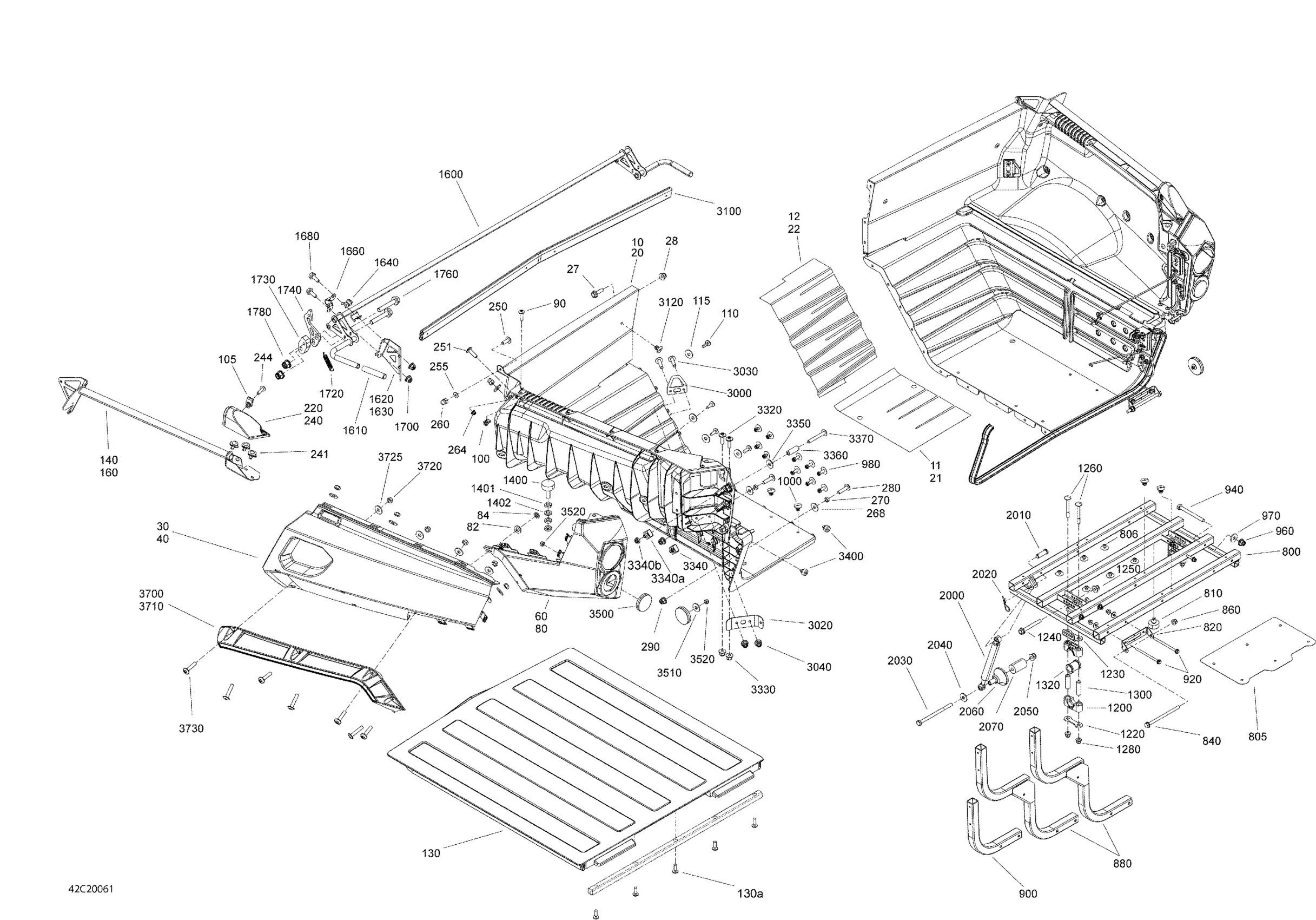

Can-Am 002 - Commander 1000R EFI - International, 2020 09- Rear Cargo Box - Box Diagram

#

Description
Price

10

Left Box Kit

715002361

$214.99

11

Heat Deflector Sheet

708300809

$10.99

12

Heat Deflector Sheet

708300811

$9.69

20

Right Box Kit | Commander

715004116

$249.99

21

Heat Deflector Sheet

708300810

$10.99

22

Heat Deflector Sheet

708300812

$10.99

27

Hex. Flange Screw M6 X 20

207662054

$1.01

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Boreal Green, LH Rear Fender | Boreal Green

708302767

$409.99

30

Asphalt Grey, LH Rear Fender | Package LTD

708303144

$409.99

40

Boreal Green, RH Rear Fender | Boreal Green

708302768

$409.99

40

Asphalt Grey, RH Rear Fender | Package LTD

708303145

$409.99

60

LH Rear Facia

708301383

$23.99

80

RH Rear Facia

708301384

$23.99

82

Flat Washer 8 mm, Nylon

234081100

$1.39

84

Push Nut

732610072

$2.19

90

Torx Screw M5 X 20

250000724

$1.69

100

Panel Nut M5 X 0.8

250000958

$4.23

105

Panel Nut M5 X 0.8

250000958

$4.23

110

Torx Screw K50 X 16

250000720

$1.69

115

Stainless Steel Flat Washer

234062670

$2.11

130

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

130a

Torx Screw K50 X 16

250000720

$1.69

140

LH Welded Rail | XT

708300231

$74.99

160

RH Welded Rail | XT

708300232

$74.99

220

LH Rail Cover

708301380

$3.69

240

RH Rail Cover

708301381

$3.69

241

Pop Rivet 3/16 | XT

293150190

$5.89

244

Torx Screw M5 X 20

250000724

$1.69

250

Torx Truss Screw M6 X 16

250000721

$1.69

251

Torx Screw M6 X 20

250000722

$1.68

255

Stainless Steel Flat Washer

234062670

$2.11

260

Domed Nut M6

232361493

$2.11

264

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

268

Stainless Steel Flat Washer

234062670

$2.11

270

Bushing

708300737

$5.99

280

Torx Screw M6 X 25

250000758

$2.11

290

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

800

Black Box Support

708300875

$309.99

805

Heat Deflector

708300780

$13.99

806

Pop Rivet 3/16"

293150103

$0.55

810

Rubber Stopper

708000884

$6.89

820

Bracket Pivot

708300185

$4.79

840

Hex. Flange Screw M8 X 130

230683034

$7.51

860

Hex. Flange Elastic Nut M8

233281414

$1.47

880

Black Welded Lateral Support

708300879

$49.99

900

Black Lateral Support

708300877

$184.99

920

Hex. Flange Screw M6 X 95

207669584

$3.38

940

Hex. Screw M6 X 65

207066544

$0.46

960

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

970

Flat Washer 6 mm

234062410

$0.77

980

Pop Rivet 3/16"

293150100

$1.09

1000

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200

Housing Half

506150400

$7.62

1220

Stopper Plate

506150600

$4.39

1230

Adjustable Stopper Plate

708300210

$4.79

1240

Hex. Flange Screw M6 X 50

207665044

$4.12

1250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1260

Carriage Bolt M8 X 70

207787044

$1.37

1280

Hex. Flange Elastic Nut M8

233281414

$1.47

1300

Housing Bushing

506150500

$7.99

1320

Pivot Bushing

708300172

$4.79

1400

Frame Rubber Bumper

293720091

$9.39

1401

Hex. Jam Nut M8

232180600

$0.67

1402

Lock Washer 8 mm

234181401

$0.92

1600

Cargo Handle Ass'y

708300751

$72.99

1610

Cap Latch Lever

708300358

$6.59

1620

LH Latch Lever Support

708300278

$9.69

1630

RH Latch Lever Support

708300351

$9.69

1640

Half Ring

705500033

$8.29

1660

Clamp Reatiner

708300392

$2.68

1680

Hex. Flange Screw M6 X 16

207661644

$0.74

1700

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1720

Spring

708300454

$4.79

1730

Spacer

708300902

$9.69

1740

Box Retainer

708300136

$8.69

1760

Hex. Flange Screw M6 X 45

250001028

$1.26

1780

Hex. Flange Elastic Nut M8

233281414

$1.47

2000

Gaz Shock

708301136

$39.99

2010

Pin

414079100

$2.39

2020

Hair Pin

414575600

$1.89

2030

Hex. Screw M6 X 90

207069044

$4.87

2040

Flat Washer 6 mm

234062410

$0.77

2050

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2060

Spacer

708301059

$19.49

2070

Spacer

708300470

$7.73

3000

Retaining Plate

708300183

$9.69

3020

Retaining Plate Support

708300206

$5.19

3030

Torx Screw M6 X 25

250000758

$2.11

3040

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3100

Front Support

708301633

$28.99

3120

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3320

Torx Screw M6 X 20

250000722

$1.68

3330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3340

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

3340a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

3340b

Hex. Elastic Stop Nut M6

232561600

$1.15

3350

Stainless Steel Flat Washer

234062670

$2.11

3360

Spacer

708300736

$9.69

3370

Torx Screw M6 X 45

250000748

$1.90

3400

Rubber Bumper

293830005

$8.09

3500

Red Reflector

705011221

$14.49

3510

Stainless Steel Flat Washer

234062670

$2.11

3520

Elastic Stop Nut M5

232551414

$0.87

3700

LH Upper Rear Mudguards | LTD

705008671

$34.99

3710

RH Upper Rear Mudguards | LTD

705008673

$34.99

3720

Elastic Stop Nut M6

232561434

$1.99

3725

Stainless Steel Flat Washer

234062670

$2.11

3730

Stainless, Torx Screw M6 X 30

250000842

$2.11
