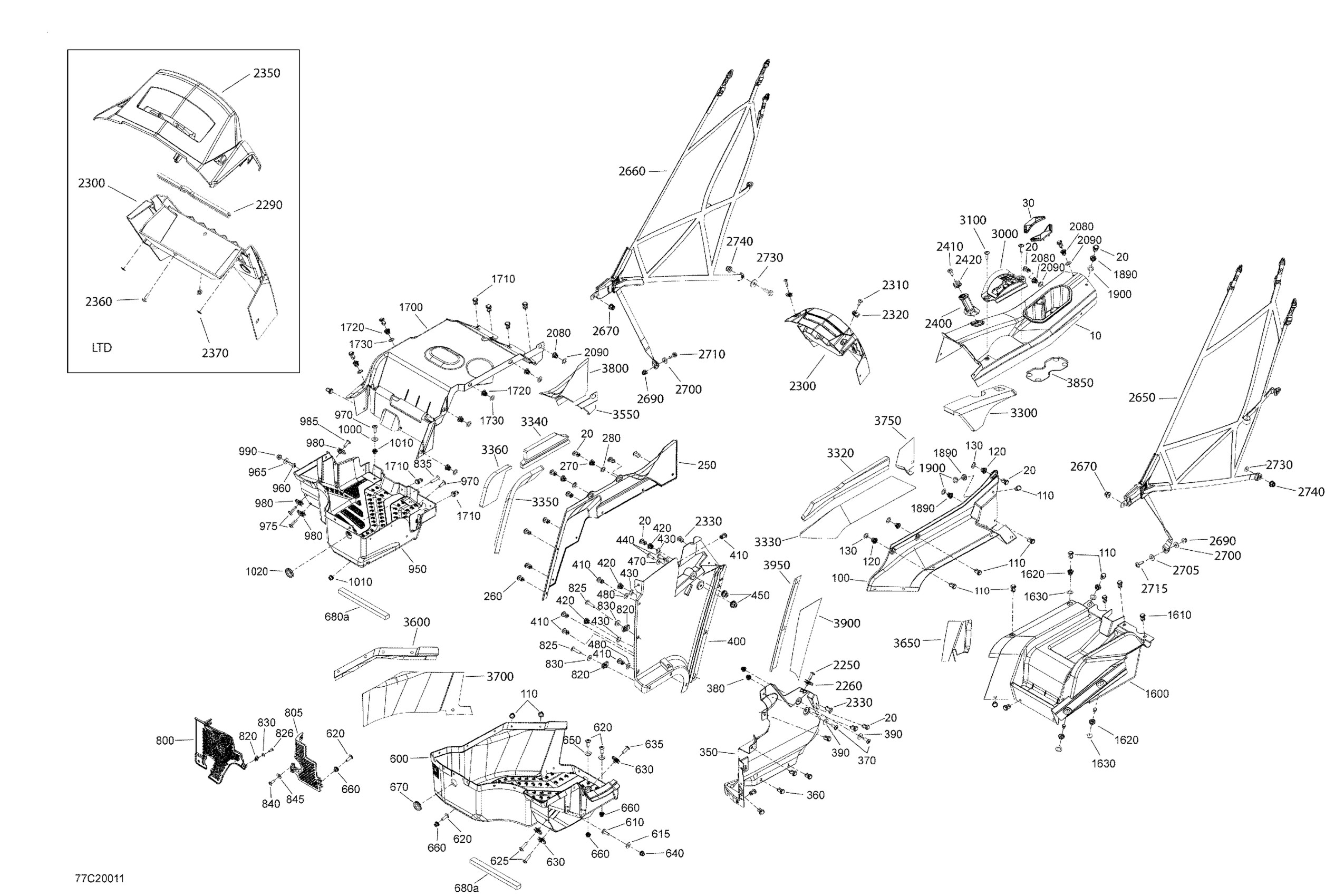

Can-Am 002 - Commander 1000R EFI - International, 2020 09- Cab Interior - Lower part Diagram

#

Description
Price

10

Center Console Assembly | Except Package LTD

715006466

$154.99

10

Console Ass'y | Package LTD

715005502

$164.99

20

Tuflok Plastic Rivet

293150230

$1.47

30

Cup Retainer

707900036

$6.89

100

LH Side Console

707900001

$44.99

110

Tuflok Plastic Rivet

293150230

$1.47

120

Insert

707900133

$2.89

130

Washer

503189273

$3.28

250

RH Side Console

707900002

$36.99

260

Tuflok Plastic Rivet

293150230

$1.47

270

Insert

707900133

$2.89

280

Washer

503189273

$3.28

350

Front Side Dash Panel

707900193

$69.99

360

Tuflok Plastic Rivet

293150230

$1.47

370

Torx Screw M6 X 20

250000722

$1.68

380

Insert Half Hex Body M6 x 1.0

250100199

$3.19

390

Stainless Steel Flat Washer

234062670

$2.11

400

RH Fixe Side Console

707900021

$76.99

400

RH Fixe Side Console | LTD Model

707900098

$88.99

410

Tuflok Plastic Rivet

293150230

$1.47

420

Insert

707900133

$2.89

430

Washer

503189273

$3.28

440

Torx Screw M6 X 20

250000722

$1.68

450

Insert Half Hex Body M6 x 1.0

250100199

$3.19

470

Stainless Steel Flat Washer

234062670

$2.11

480

Washer

506151252

$3.17

600

LH Lower Floor

707900022

$269.99

610

Torx Screw M6 X 20

250000712

$2.11

615

Stainless Steel Flat Washer

234062670

$2.11

620

Torx Screw M6 X 20

250000722

$1.68

625

Torx Truss Screw M6 X 25

250000807

$2.11

630

Panel Nut M6 X 1.0

250100198

$2.11

635

Torx Screw M6 X 20

250000722

$1.68

640

Hex. Flange Elastic Nut M6

233261494

$1.58

650

Stainless Steel Flat Washer

234062670

$2.11

660

Insert Half Hex Body M6 x 1.0

250100199

$3.19

670

Rubber Cover

293250242

$6.99

680a

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

800

Grille

707900178

$10.99

805

Grille

707900180

$10.99

820

Panel Nut M6 X 1.0

250100198

$2.11

825

Torx Truss Screw M6 X 30

250000843

$2.11

826

Torx Screw M6 X 20

250000722

$1.68

830

Stainless Steel Flat Washer

234062670

$2.11

835

Torx Truss Screw M6 X 30

250000843

$2.11

840

Torx Screw K50 X 16

250000720

$1.69

845

Washer M5

250200025

$0.74

950

RH Lower Floor

707900023

$194.99

960

Torx Screw M6 X 20

250000712

$2.11

965

Stainless Steel Flat Washer

234062670

$2.11

970

Torx Screw M6 X 20

250000722

$1.68

975

Torx Truss Screw M6 X 25

250000807

$2.11

980

Panel Nut M6 X 1.0

250100198

$2.11

985

Torx Screw M6 X 20

250000722

$1.68

990

Hex. Flange Elastic Nut M6

233261494

$1.58

1000

Stainless Steel Flat Washer

234062670

$2.11

1010

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1020

Rubber Cover

293250242

$6.99

1600

LH Under Seat Plate

707900218

$81.99

1610

Tuflok Plastic Rivet

293150230

$1.47

1620

Insert

707900133

$2.89

1630

Washer

503189273

$3.28

1700

RH Under Seat Plate

707900006

$114.99

1710

Tuflok Plastic Rivet

293150230

$1.47

1720

Insert

707900133

$2.89

1730

Washer

503189273

$3.28

1890

Insert

707900133

$2.89

1900

Washer

503189273

$3.28

2080

Insert

707900133

$2.89

2090

Washer

503189273

$3.28

2250

Torx Screw M6 X 20

250000722

$1.68

2260

Panel Nut M6 X 1.0

250100198

$2.11

2290

Was 271000110 Protection Trim

219704353

$15.99

2300

Lower Central Dashboard Ass'y | Europe

707900019

$40.99

2300

DASHBOARD CTRL. - Call your local BRP dealership | LTD Model

707900065

Unavailable

2310

Torx Screw M5 X 20

250000724

$1.69

2320

Panel Nut M5 X 0.8

250000958

$4.23

2330

Tuflok Plastic Rivet

293150230

$1.47

2350

Gauge Support | LTD Model

707900066

$38.99

2360

Torx Screw K50 X 16

250000720

$1.69

2370

Push Nut

732610072

$2.19

2400

Passenger Handle

707900011

$13.75

2410

Torx Screw M6 X 20

250000722

$1.68

2420

Connector Tube

707900048

$6.19

2650

Front LH Safety Net

707900237

$119.99

2660

Front RH Safety Net

707900238

$119.99

2670

Hex. Flange Elastic Nut M8

233281414

$1.47

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2700

Flat Washer 6 mm

234062410

$0.77

2705

Stainless Steel Flat Washer

234062670

$2.11

2710

Hex. Flange Screw M6 X 20

207662044

$2.00

2715

Torx Screw M6 X 25

250000758

$2.11

2730

Flat Washer 8 mm

234082410

$1.47

2740

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Lever Indicator

707900070

$15.49

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3300

Front Central Console Foam

707900619

$18.99

3320

Left Upper Lateral Console Foam

707900620

$16.49

3330

LH Lower Lateral Console Foam

707900621

$23.99

3340

RH Lateral Console Foam

707900622

$16.49

3350

RH Lateral Console Foam

707900623

$16.49

3360

RH Lateral Console Foam

707900624

$16.49

3550

Heat Sheet

707900148

$7.49

3600

Heat Sheet

707900149

$8.89

3650

Heat Sheet

707900150

$1.09

3700

Heat Sheet

707900151

$10.99

3750

Heat Sheet

707900146

$11.99

3800

Heat Sheet

707900147

$8.89

3850

Heat Sheet

707900145

$11.99

3900

Heat Sheet

707900190

$9.39

3950

Heat Sheet

707900191

$1.09

4000

Torx Screw M5 X 14

250000742

$1.47

4005

Flat Washer

250200040

$1.90

4010

Torx Screw M6 X 20

250000722

$1.68
