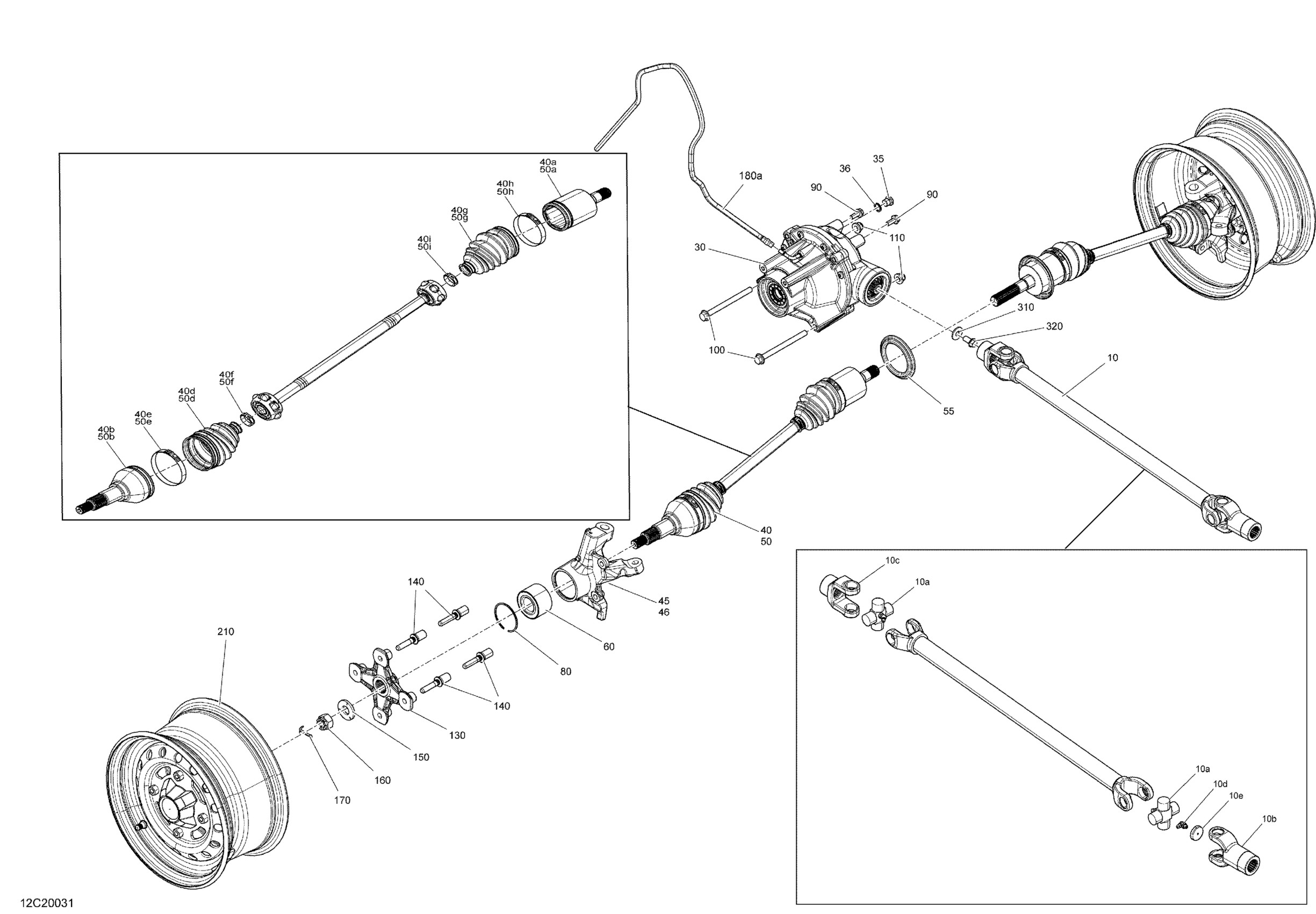

Can-Am 002 - Commander 1000R EFI - International, 2020 07- Front Drive - Common Parts Diagram

#

Description
Price

10

Axle Drive Ass'y

705402066

$259.49

10a

U-Joint Cross Kit | Engine 450

715900435

$78.49

10b

Fixed Yoke Joint

715900497

$59.49

10c

Yoke Joint | Cover 715900483

715900231

$26.49

10d

Grease Fitting

703500815

$5.24

10e

Cover

715900483

$9.88

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

35

Fill Level Plug | 4X4

705500504

$10.01

36

Copper Washer | 4X4

705500506

$0.45

40

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$243.99

40a

RH Plunging Joint

715900431

$259.49

40b

CV Joint

715900427

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40e

Oetiker Clamp

715900282

$5.29

40f

Oetiker Clamp, Small

715900283

$5.29

40g

Boot Kit, Differential Side

705401346

$42.49

40h

Oetiker Clamp, Large

715900284

$5.29

40i

Oetiker Clamp, Small

715900261

$5.29

45

LH Front Knuckle

705401548

$132.49

46

RH Front Knuckle

705401549

$104.99

50

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$243.99

50a

LH Plunging Joint

715900430

$259.49

50b

CV Joint

715900427

$259.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50e

Oetiker Clamp

715900282

$5.29

50f

Oetiker Clamp, Small

715900283

$5.29

50g

Boot Kit, Differential Side

705401346

$42.49

50h

Oetiker Clamp, Large

715900284

$5.29

50i

Oetiker Clamp, Small

715900261

$5.29

55

Wear Sleeve

705400780

$7.90

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Wheel Hub

705501900

$132.49

140

Wheel Stud

250300060

$11.49

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

180a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

210

Front Wheel | P-LTD

705402084

Unavailable

210

Front Wheel | P-XT

705402085

Unavailable

310

Flat Washer M10 | 4X4

250200014

$1.49

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44
