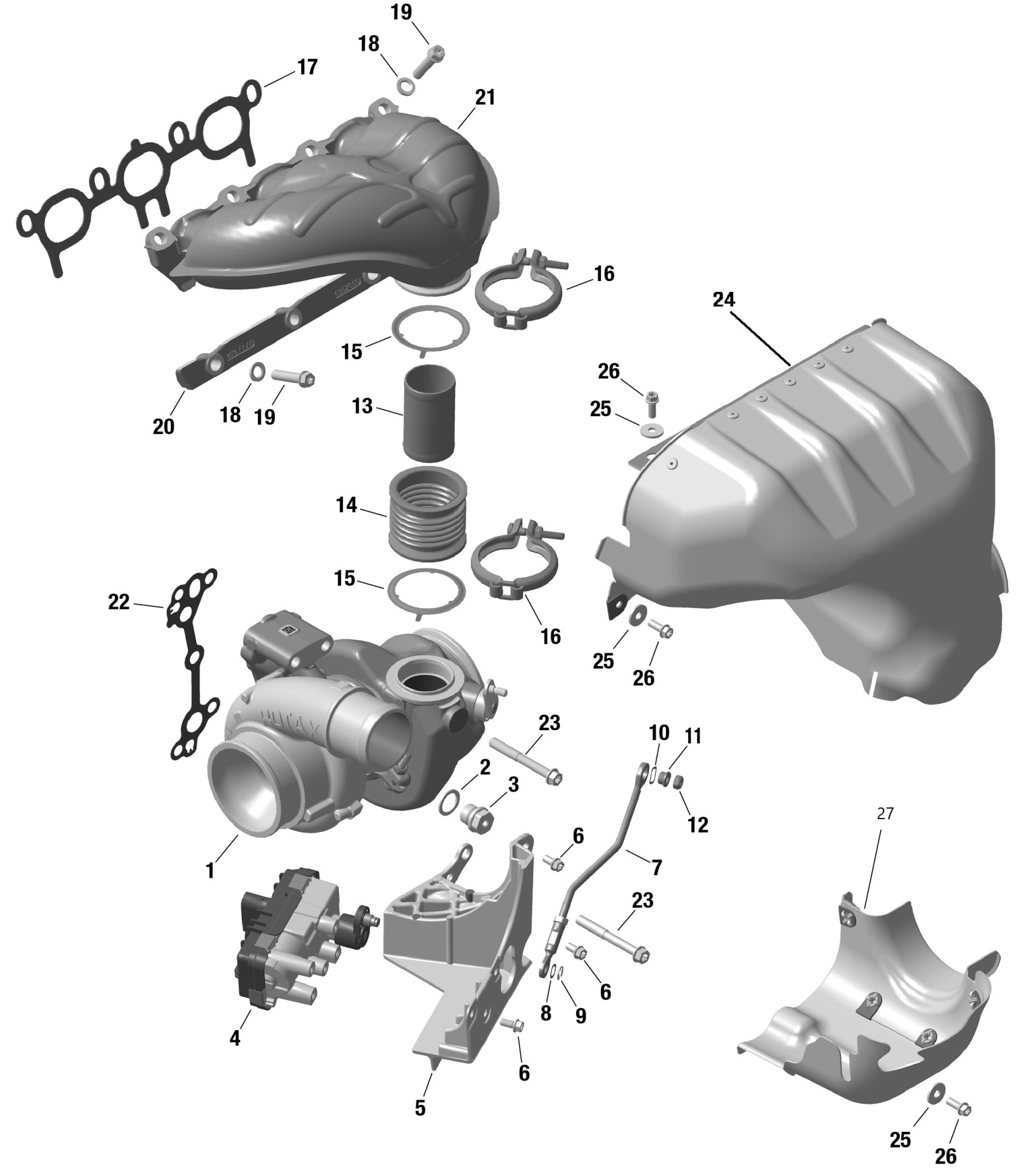

Can-Am CE - Maverick R 996NT - XRS - 7ARJ - Timeless Black Metallic - 77" Width, 2024 01- ROTAX - Turbocharger Diagram

#

Description
Price

1

Turbocharger Ass'y | Includes 1-12

420893747

$1,869.99

2

O-Ring

420430622

$4.44

3

Plug Screw

420641327

$8.57

4

Servo Motor Ass'y | Includes 4-6

420265846

$709.99

5

Wastegate Bracket

420651851

$47.99

6

Hex. Flange Screw M6 X 12

420440149

$2.11

7

Wastegate Rod Ass'y

420971635

$279.99

8

Wave Shim 7.6/11.8/0.1

420945712

$3.17

9

Retaining Ring

420945710

$0.50

10

Shim Wave 10.35/14.1/0.15

420945714

$3.29

11

Steped Cartridge

420247493

$14.99

12

Lock Nut M6

420442173

$1.37

13

Compensator Tube

420873525

$34.99

14

Compensator

420873521

$88.99

15

Exhaust Manifold Gasket Kit | Includes 15-19

420686233

$105.99

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Clamping Plate

420952000

$82.99

21

Exhaust Manifold Ass'y

420273043

$769.99

22

Gasket

420250612

$45.49

23

Torx Flange Screw M8 X 65

420440402

$7.41

24

Upper Heat Shield

420975104

$229.99

25

Flat Washer 6 mm

234062410

$0.77

26

Hex. Flange Screw M6 X 16

207661644

$0.74

27

Lower Heat Shield

420975106

$229.99
