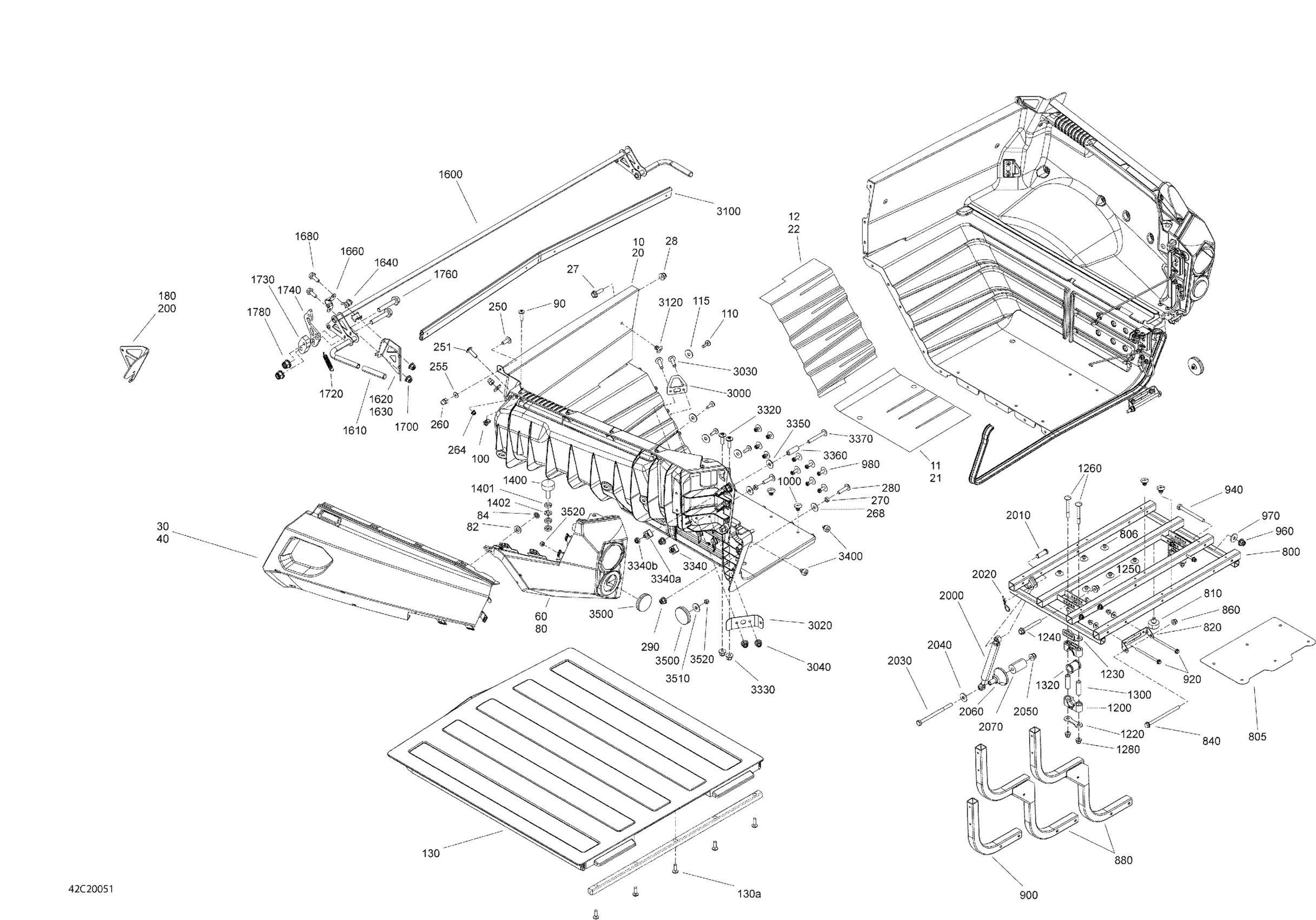

Can-Am 001 - Commander 800R EFI - International, 2020 09- Rear Cargo Box - Box Diagram

Left Box Kit

715002361

$214.99

Heat Deflector Sheet

708300809

$10.99

Heat Deflector Sheet

708300811

$9.69

Right Box Kit | Commander

715004116

$249.99

Heat Deflector Sheet

708300810

$10.99

Heat Deflector Sheet

708300812

$10.99

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

White, LH Rear Fender | Bright White Models

708301254

$139.99

Squadron Green, LH Rear Fender | Squadron Green Models

708302337

$139.99

White, RH Rear Fender | Bright White Models

708301255

$139.99

Squadron Green, RH Rear Fender | Squadron Green Models

708302338

$139.99

LH Rear Facia

708301383

$23.99

RH Rear Facia

708301384

$23.99

Flat Washer 8 mm, Nylon

234081100

$1.39

Push Nut

732610072

$2.19

Torx Screw M5 X 20

250000724

$1.69

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw K50 X 16

250000720

$1.69

Stainless Steel Flat Washer

234062670

$2.11

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

Torx Screw K50 X 16

250000720

$1.69

LH Painted Rail Cap | Except XT

708300333

$15.99

RH Painted Rail Cap | Except XT

708300334

$16.99

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Domed Nut M6

232361493

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Bushing

708300737

$5.99

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Black Box Support

708300875

$309.99

Heat Deflector

708300780

$13.99

Pop Rivet 3/16"

293150103

$0.55

Rubber Stopper

708000884

$6.89

Bracket Pivot

708300185

$4.79

Hex. Flange Screw M8 X 130

230683034

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

Black Welded Lateral Support

708300879

$49.99

Black Lateral Support

708300877

$184.99

Hex. Flange Screw M6 X 95

207669584

$3.38

Hex. Screw M6 X 65

207066544

$0.46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 6 mm

234062410

$0.77

Pop Rivet 3/16"

293150100

$1.09

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Housing Half

506150400

$7.62

Stopper Plate

506150600

$4.39

Adjustable Stopper Plate

708300210

$4.79

Hex. Flange Screw M6 X 50

207665044

$4.12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Carriage Bolt M8 X 70

207787044

$1.37

Hex. Flange Elastic Nut M8

233281414

$1.47

Housing Bushing

506150500

$7.99

Pivot Bushing

708300172

$4.79

Frame Rubber Bumper

293720091

$9.39

Hex. Jam Nut M8

232180600

$0.67

Lock Washer 8 mm

234181401

$0.92

Cargo Handle Ass'y

708300751

$72.99

Cap Latch Lever

708300358

$6.59

LH Latch Lever Support

708300278

$9.69

RH Latch Lever Support

708300351

$9.69

Half Ring

705500033

$8.29

Clamp Reatiner

708300392

$2.68

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Spring

708300454

$4.79

Spacer

708300902

$9.69

Box Retainer

708300136

$8.69

Hex. Flange Screw M6 X 45

250001028

$1.26

Hex. Flange Elastic Nut M8

233281414

$1.47

Gaz Shock

708301136

$39.99

Pin

414079100

$2.39

Hair Pin

414575600

$1.89

Hex. Screw M6 X 90

207069044

$4.87

Flat Washer 6 mm

234062410

$0.77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Spacer

708301059

$19.49

Spacer

708300470

$7.73

Retaining Plate

708300183

$9.69

Retaining Plate Support

708300206

$5.19

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Front Support

708301633

$28.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Hex. Elastic Stop Nut M6

232561600

$1.15

Stainless Steel Flat Washer

234062670

$2.11

Spacer

708300736

$9.69

Torx Screw M6 X 45

250000748

$1.90

Rubber Bumper

293830005

$8.09

Red Reflector

705011221

$14.49

Stainless Steel Flat Washer

234062670

$2.11

Elastic Stop Nut M5

232551414

$0.87
