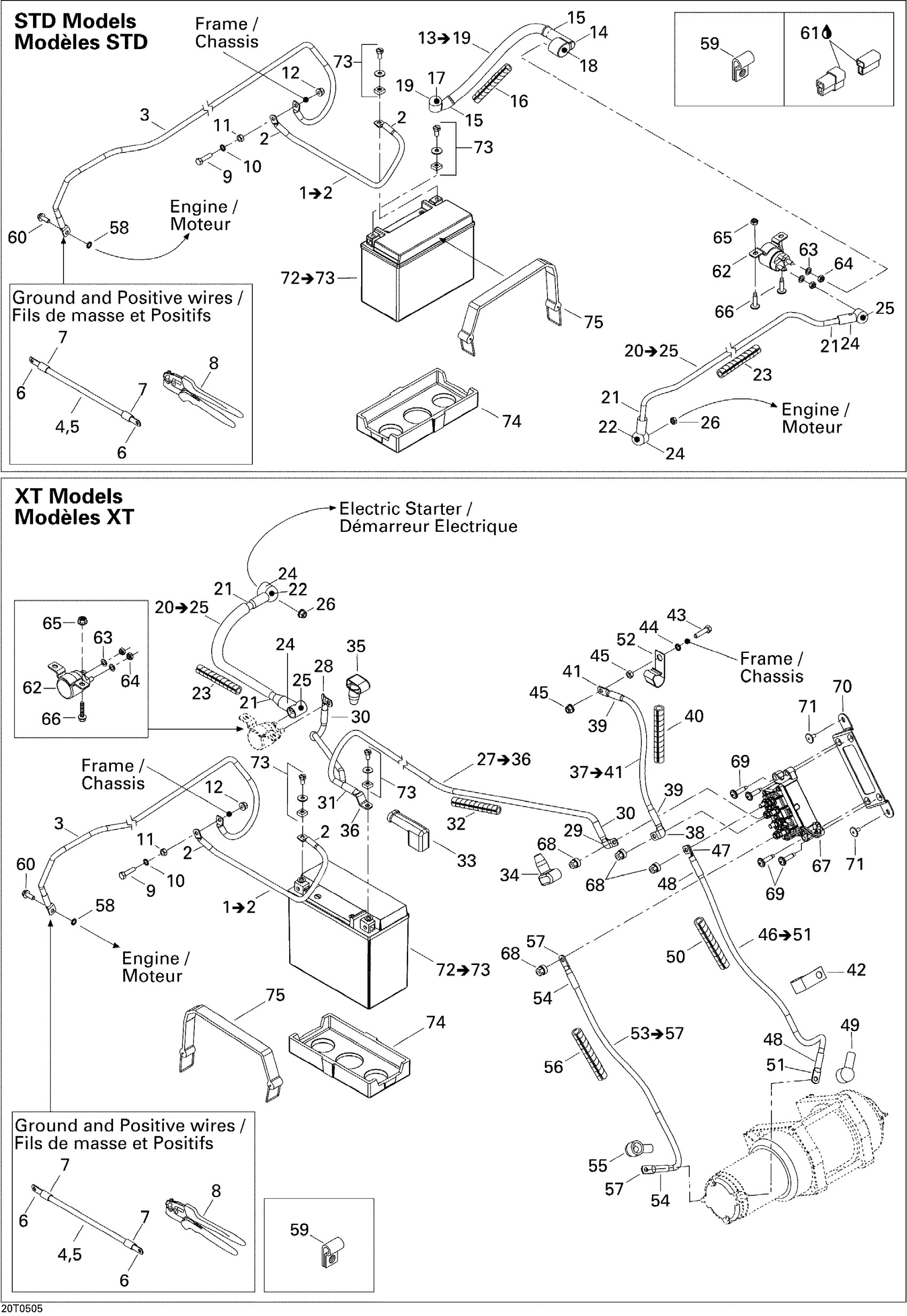

Can-Am Outlander 400 XT 4 X 4, 2005 10- Electrical System Diagram

#

Description
Price

1

Battery Ground Cable | Includes 1 To 2

710000259

Unavailable

2

Was 710000483 Heat Shrink Tubing

219704447

$78.99

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ground Cable Battery, no 6, meter)

278001680

Unavailable

5

Cable Battery, no 6, meter)

278001690

Unavailable

6

Terminal 45°, Small Hole

278001682

Unavailable

6

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

6

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

6

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

6

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

6

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

6

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

6

Terminal 30°, 2 Holes

278001776

Unavailable

7

Was 710000483 Heat Shrink Tubing

219704447

$78.99

8

Crimp Plier

529035730

Unavailable

9

Hex. Screw M6 X 25

207162544

$1.15

10

External Serrated Lock Washer 6 mm

234461608

$1.15

11

Hex. Nut M6

232061414

$0.53

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Positive Cable, Battery/Solenoid | STD Models, Includes 13 To 19

710000520

Unavailable

14

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

15

Was 710000483 Heat Shrink Tubing

219704447

$78.99

16

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

17

Protector Cap | STD Models

710001829

$9.95

18

Protector Cap | STD Models

710000523

Unavailable

19

Open Barrel | STD Models

710000518

$11.12

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Was 710000483 Heat Shrink Tubing

219704447

$78.99

22

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

23

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

24

Open Barrel

710000530

Unavailable

25

Protector Cap

710000526

$10.99

26

Hex. Elastic Stop Nut M6

232561600

$1.15

27

Not Available As Spare Part - Friction Washer

Unavailable

28

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

29

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

30

Was 710000483 Heat Shrink Tubing

219704447

$78.99

31

Shrink Tubing | XT Models

275500578

Unavailable

32

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

33

Protector Cap | STD Models

710001829

$9.95

34

Protector Cap | XT Models

710001828

$23.49

35

Protector Cap | STD Models

710000523

Unavailable

36

Open Barrel | XT Models

710000519

$9.95

37

NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41

710000455

Unavailable

38

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

39

Was 710000483 Heat Shrink Tubing

219704447

$78.99

40

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

41

Open Barrel

710000530

Unavailable

42

CLAMP - Call your local BRP dealership

705600311

Unavailable

43

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

44

External Serrated Lock Washer 6 mm

234461608

$1.15

45

Hex. Nut M6

232061414

$0.53

46

Winch Positive Cable, Blue | XT Models, Includes 46 To 51

710000451

Unavailable

47

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

48

Was 710000483 Heat Shrink Tubing

219704447

$78.99

49

Protector Cap

710000494

Unavailable

50

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

51

Open Barrel

710000530

Unavailable

52

CLAMP - Call your local BRP dealership

705600311

Unavailable

53

WINCH POSITIVE CABLE, YELLOW - Call your local BRP dealership | XT Models, Includes 53 To 57

710000454

Unavailable

54

Was 710000483 Heat Shrink Tubing

219704447

$78.99

55

Protector Cap

710000494

Unavailable

56

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

57

Open Barrel

710000530

Unavailable

58

External Serrated Lock Washer 6 mm

234461608

$1.15

59

Clip

414227300

$1.67

60

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

61

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

62

Starter Relay

515176011

$62.49

63

Lock Washer Helical M6

234161601

$1.15

64

Hex. Nut M6

232061600

$1.15

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

66

Hex. Flange Screw M6 X 16

207661644

$0.74

67

Winch Solenoid | XT Models

710001000

$121.99

68

Elastic Stop Nut M6

232561414

$0.55

69

Torx Screw M6 X 25 | XT Models

250000728

$4.44

70

Winch Relay Bracket | XT Models

705200773

Unavailable

71

Pop Rivet 3/16"

390406500

$0.88

72

Battery, 13 Amperes | Includes 7 to 8

710000283

$154.99

72

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

73

Battery Bolt Kit

250000282

$7.29

74

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

75

Retainer Strap

293850097

$11.64
