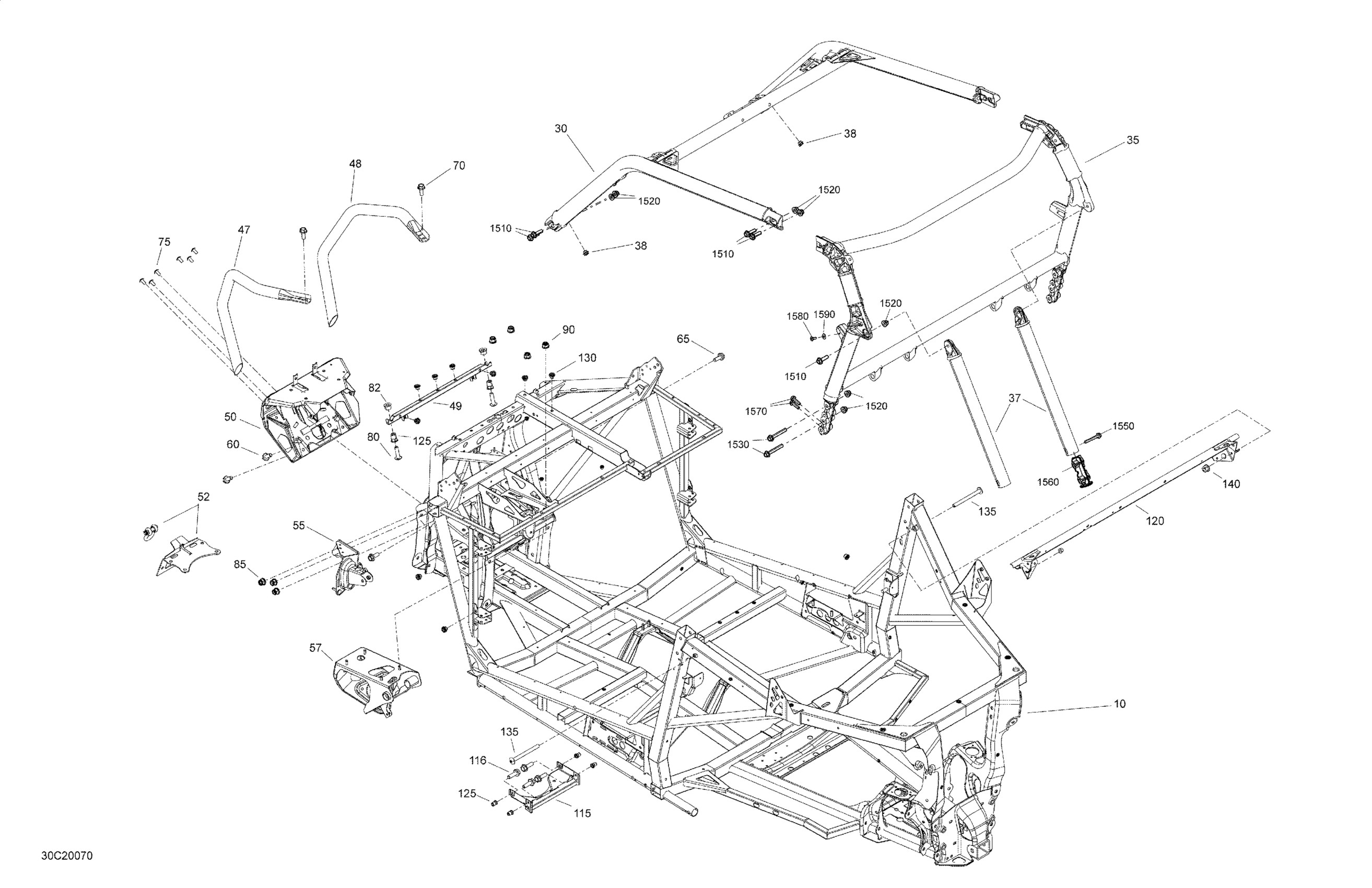

Can-Am 004 - Maverick Sport 1000R - XMR - North America, 2020 09- Frame Diagram

#

Description
Price

10

Frame Kit

715008534

$2,969.99

30

Green, Front Cage Profile Kit

715009364

$619.99

35

Manta Green, Rear Cage Kit

715009378

$619.99

37

Manta Green, Rear Cage Extension

705208395

$24.99

38

Insert Half Hex Body M6 x 1.0

250100199

$3.19

47

Manta Green, LH Front Bumper

705208398

$116.49

48

Manta Green, RH Front Bumper

705208401

$116.49

49

Cross Member

705206313

$39.99

50

Deep Black, Front Bumper

705209043

$457.49

52

ASSY FRONT ANCHOR - Call your local BRP dealership

715005229

Unavailable

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

75

Torx Truss Screw M8 X 16

250000746

$3.38

80

Hex Torx Truss M8 X30

250000745

$3.17

82

Bushing

705207229

$14.49

85

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Elastic Flange Nut M8

233281416

$1.48

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

140

Hex. Flange Nut M8

233081416

$1.15

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Flange Elastic Nut M10

233201466

$3.17

1530

Hex. Flange Screw M10 X 70

207607056

$4.29

1550

Hex. Flange Screw M8 x 60

207686044

$3.07

1560

Sleeve

705210648

$9.90

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

1580

Torx Head Screw M6 X 16

250000717

$2.11

1590

Stainless Steel Flat Washer

234062670

$2.11
