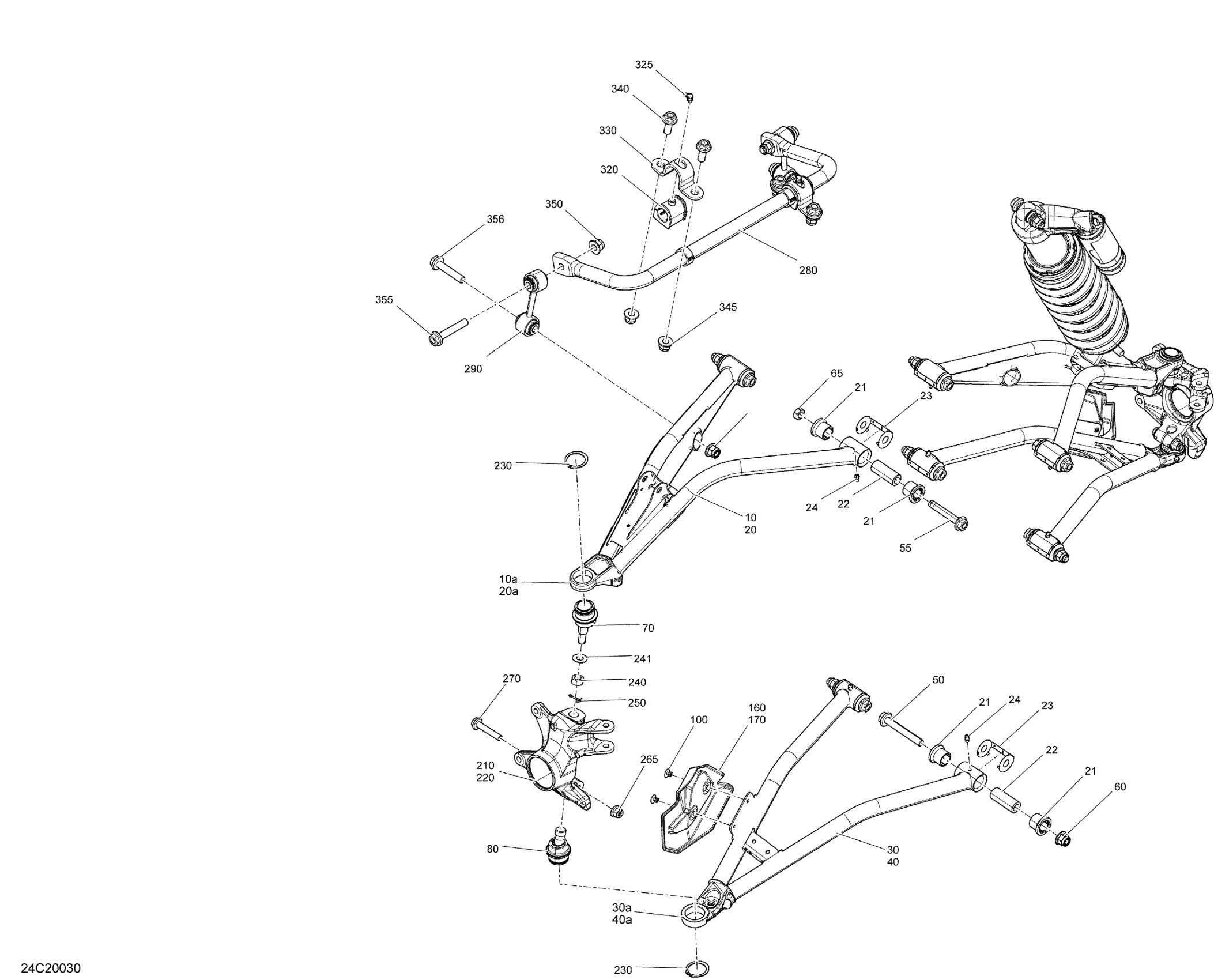

Can-Am 004 - Maverick Sport 1000R - XMR - North America, 2020 07- Front Suspension Diagram

Manta Green, LH Upper Suspension Arm | Includes 10 to 10a

706204059

$190.99

LH Upper Front Suspension Arm

706203329

$190.99

Manta Green, RH Upper Suspension Arm | Includes 20 to 20a

706204060

$190.99

RH Upper Front Suspension Arm

706203330

$190.99

Suspension Arm Bushing

706204409

$9.10

Interior Bushing

706202257

$9.79

Wear Plate

706202300

$2.29

Grease Fitting

408200700

$3.49

Manta Green, LH Lower Suspension Arm | Includes 30 to 30a

706204028

$190.99

Black, LH Lower Front Suspension Arm

706203341

$190.99

Manta Green, RH Lower Suspension Arm | Includes 40 to 40a

706204029

$190.99

Black, RH Lower Front Suspension Arm

706203342

$190.99

Flange Screw M12 X 85

250000859

$4.76

Hex. Flange Screw M12x1.75

250000985

$6.67

Elastic Flange Nut M12

233221466

$2.89

Hex. Nut M12

250100204

$9.80

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH CV joint Guard

706202135

$11.01

LH CV joint Guard

706202134

$11.01

LH Front Knuckle

706202842

$211.99

RH Front Knuckle

706202844

$211.99

Circlip

293370035

$2.64

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 55

207605546

$2.11

Sway Bar Ass'y

706203649

$126.99

Sway Bar Double Link

706202937

$111.49

Stabilizer Bar Bushing

706204414

$8.43

Grease Fitting 90°

293550056

$1.15

Clamp

706203437

$14.81

Hex. Flange Screw DIN.6921

250000951

$7.17

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41
