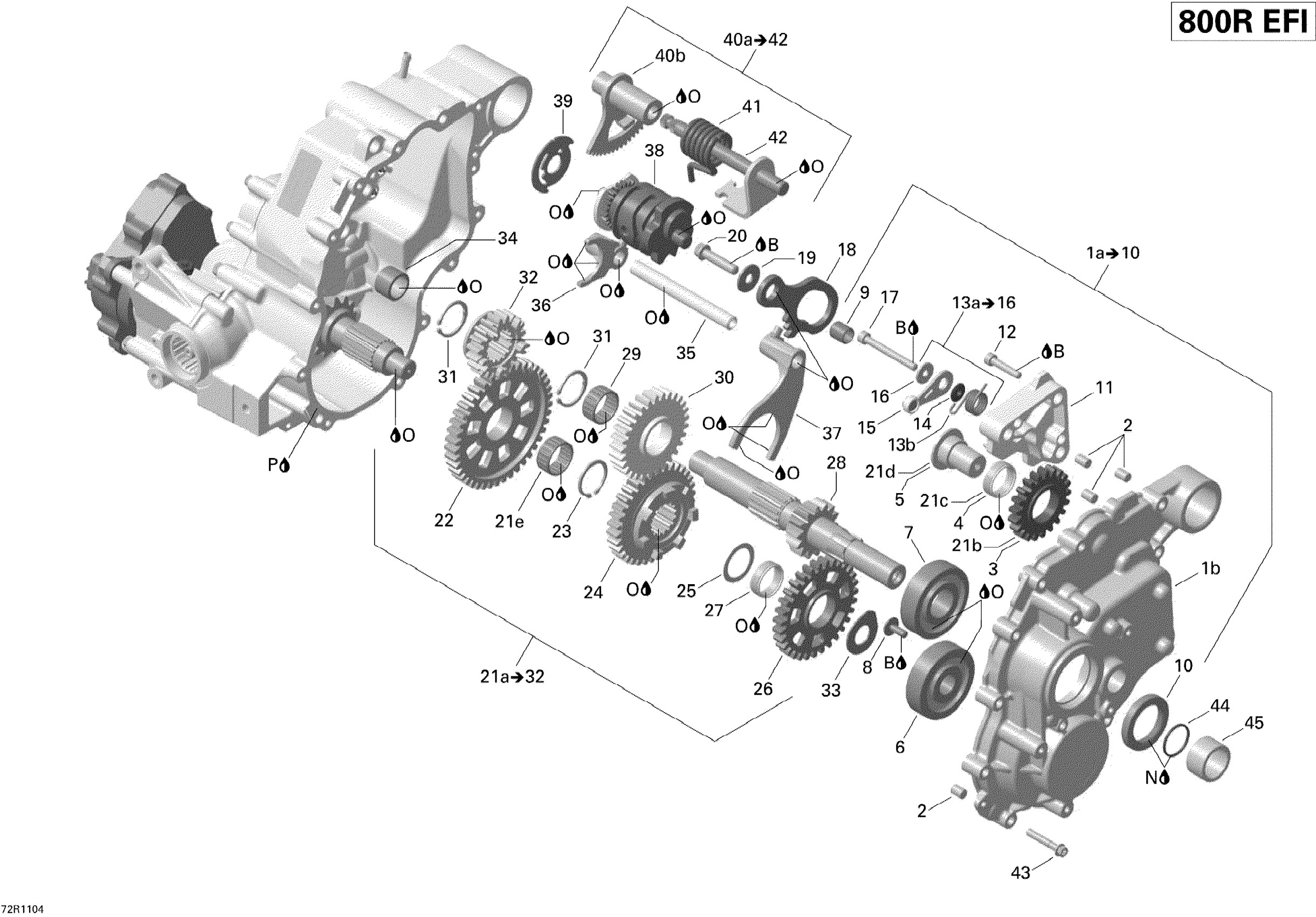

Can-Am Outlander Max 800R EFI, 2011 01- Gear Box And Components Diagram

#

Description
Price

1a

LH Gear Housing Ass'y | Includes 1a to 10

420212215

$561.49

1b

Not Available As Spare Parts

XXX

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Not Available As Spare Parts

XXX

Unavailable

4

Needle Bearing | See Item 21a

420232654

$20.99

5

Not Available As Spare Parts

XXX

Unavailable

6

Ball Bearing

420632295

$47.49

7

Ball Bearing

420932822

$30.49

8

Torx Screw M6 X 16

420241529

$2.11

9

Not Available As Spare Parts

XXX

Unavailable

10

Oil Seal

420950089

$19.49

11

Support

420611451

Unavailable

12

Socket Head Screw M6 X 30

205063044

$1.69

13a

Index Lever Ass'y | Includes 13a to 16

420248530

Unavailable

13b

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Allen Screw M6 X 55

420240332

$5.35

18

Kit Parking Lock Lever Assembly

703501128

$164.99

19

Plain Washer

420227937

$13.24

20

Torx Flange Screw M8 X 35

420641188

$7.41

21a

Gear Set | Includes 21a to 32

420281288

Unavailable

21b

Not Available As Spare Parts

XXX

Unavailable

21c

Needle Bearing | See Item 21a

420232654

$20.99

21d

Not Available As Spare Parts

XXX

Unavailable

21e

Needle Bearing

420632070

$25.99

22

Not Available As Spare Parts

XXX

Unavailable

23

Retaining Ring

420845772

$6.38

24

Not Available As Spare Parts

XXX

Unavailable

25

Thrust Washer

420427011

$5.79

26

Not Available As Spare Parts

XXX

Unavailable

27

Needle Bearing | See Item 21a

420232654

$20.99

28

Not Available As Spare Parts

XXX

Unavailable

29

Needle Bearing

420632070

$25.99

30

Not Available As Spare Parts

XXX

Unavailable

31

Retaining Ring

420845772

$6.38

32

Not Available As Spare Parts

XXX

Unavailable

33

Thrust Washer Set, CVT Side

420281302

$86.99

34

Needle Bushing

420832240

$20.99

35

Fork Spindle

420258383

$21.99

36

Shifting Fork

420657311

$89.99

37

Shifting Fork

420657321

$88.99

38

Kit Parking Lock Lever Assembly

703501128

$164.99

39

Isolating Washer

420626092

$6.67

40a

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 40a to 42

420620657

Unavailable

40b

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Torx Flange Screw M6 X 35

420641258

$3.38

44

O-Ring

420631612

$4.33

45

Distance Ring

420247118

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Parts

XXX

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
