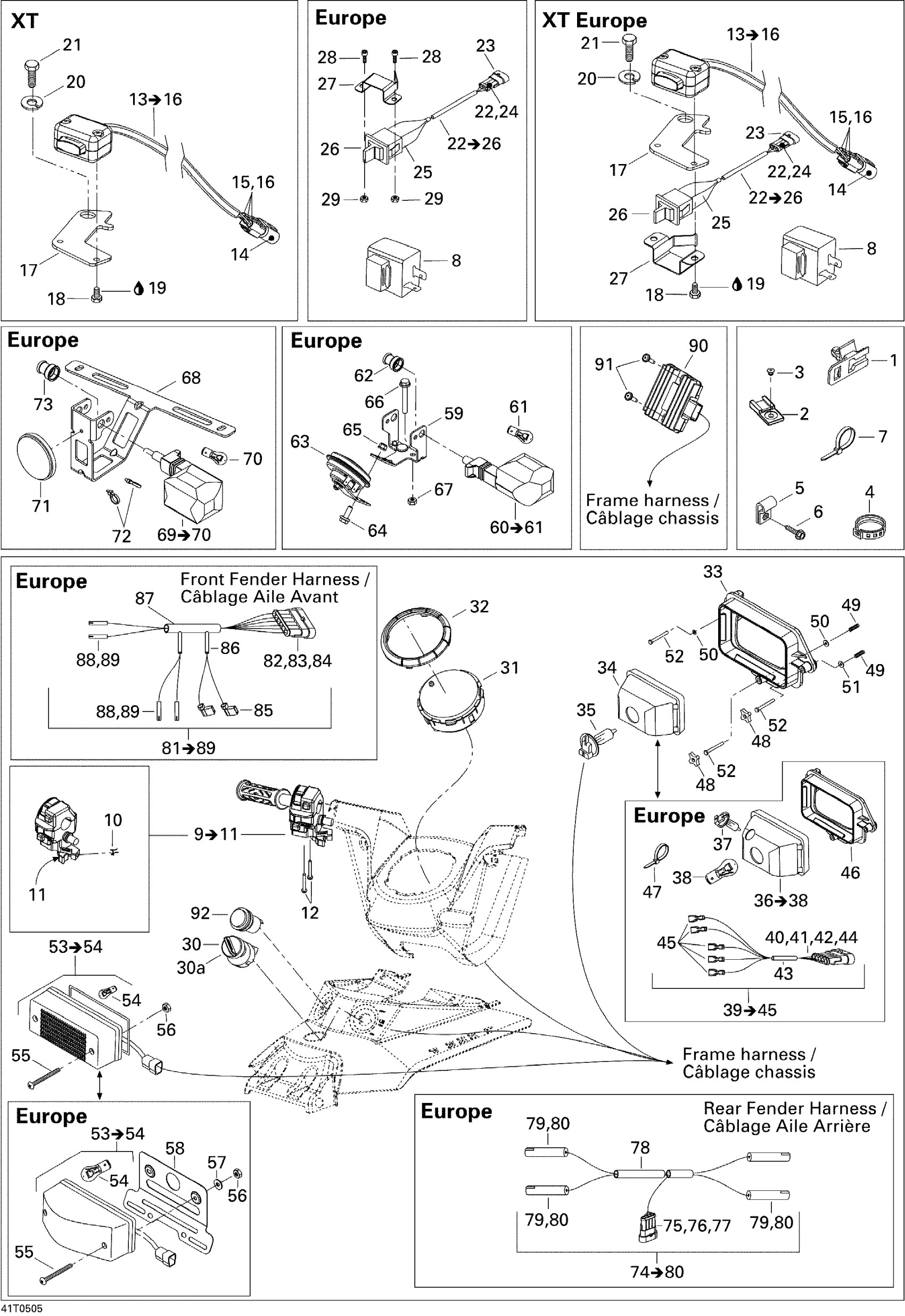

Can-Am Outlander 400 XT 4 X 4, 2005 10- Electrical Accessories Diagram

Housing Support

515175283

$9.19

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Oetiker Clamp

293650100

$3.38

CLAMP - Call your local BRP dealership

705600311

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

FLASHER UNIT - Call your local BRP dealership | Europe Models

710000581

Unavailable

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

CLIP - Call your local BRP dealership

710000631

Unavailable

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

Socket Head Screw M5 X 35

205053588

$1.90

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Male Terminal | XT Models

278000222

$3.19

Wire Seal

278001065

$7.69

WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models

710000755

Unavailable

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Hex. Screw | Europe XT Models

250000224

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

Flasher Switch | Europe Models, Includes 22 To 26

710000610

Unavailable

Male Terminal | Europe Models

409012900

$3.28

Housing

710000568

$11.12

Wire Seal

278001013

$3.28

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

FLASHER SWITCH - Call your local BRP dealership | Europe Models

710000555

Unavailable

Switch Support | STD Europe Models

710000753

Unavailable

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.15

Elastic Stop Nut M4

232541414

$0.58

Switch_Ignition

710007867

$87.99

Key, Groove on Left Side

715900019

$26.49

Key, Groove on Right Side

715900029

$26.49

SPEEDOMETER - Call your local BRP dealership

710000805

Unavailable

Speedometer | Europe Models

710000761

Unavailable

TRIM RING - Call your local BRP dealership

710000353

Unavailable

RH Headlight Support

710000236

Unavailable

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

BULB - Call your local BRP dealership

710000176

Unavailable

Front Light | Europe Models, Includes 36 To 38

710000593

Unavailable

BULB - Call your local BRP dealership | Europe Models

710000663

Unavailable

Bulb, headlight | Europe Models

710000665

Unavailable

Light Harness | Europe Models, Includes 39 To 45

710000763

Unavailable

Male Terminal | Europe Models

409012900

$3.28

Housing | Europe Models

710000779

$22.49

Wire Seal

278001013

$3.28

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

Female Terminal | Europe Models

710000764

Unavailable

RH Headlight Support

710000236

Unavailable

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$1.03

Handle

572106600

$10.33

SPRING - Call your local BRP dealership

710000285

Unavailable

Flat Washer 4 mm, Stainless

234042600

$1.15

Flat Washer 4 mm

234040600

$0.55

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$95.99

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$56.99

Bulb

520000758

$9.10

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Nut M6

232061600

$1.15

Flat Washer

224061121

$0.53

Plate Support | Europe Models

705001668

Unavailable

Bracket | Europe Models

705001734

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

Flasher Bulb | Europe Models

710000662

Unavailable

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

Horn | Europe Models

710000783

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 45

207664544

$1.46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flasher Bracket RH | Europe Models

710000768

Unavailable

Flasher Bracket LH | Europe Models

710000808

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

Flasher Bulb | Europe Models

710000662

Unavailable

REFLECTOR - Call your local BRP dealership | Europe Models

710000775

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$1.03

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

Rear Fender Harness | Europe Models, Includes 74 To 80

710000813

Unavailable

Male Terminal | Europe Models

409012900

$3.28

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

Wire Seal

278001013

$3.28

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Insulated Sheath

278001007

$3.58

Female Terminal

710000421

$6.11

Front Fender Harness | Europe Models, Includes 81 To 89

710000814

Unavailable

Male Terminal | Europe Models

409012900

$3.28

Housing, 6 Circuits | Europe Models

710000815

Unavailable

Wire Seal

278001013

$3.28

Female Terminal

409010300

$4.39

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Was 409901700 Tubing (9 mm)

219704399

$84.99

Insulated Sheath

278001007

$3.58

Female Terminal

710000421

$6.11

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Hexagonal Head Screw

210262050

$2.11

Outlet Power Kit, 12 Volts

861507200

$36.99
