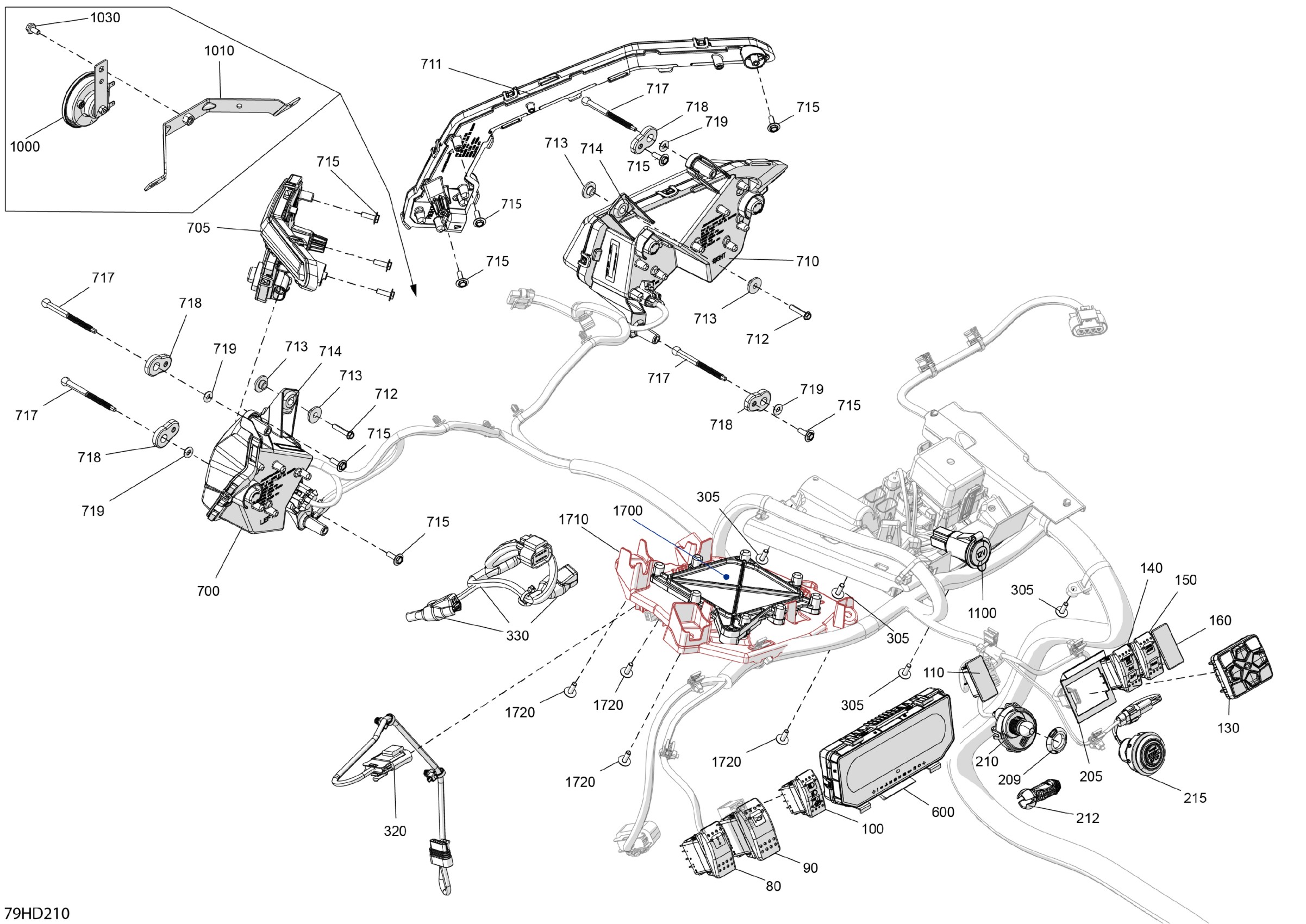

Can-Am CE - Maverick Turbo RR - XRC - 9MRC - Hybrid White Pearl - 72" Width, 2024 08- Electric - Front Section Diagram

Description

Price

Hex. Flange Elastic Nut M6

233261494

$1.58

Switch Winch

710002052

$28.49

Horn Switch

710006788

$23.49

100

Headlights Switch

710007022

$68.99

110

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

130

Switch Multifunction

710006059

$87.99

140

Differential Switch

710006040

$31.99

150

Differential Mode Switch

710006558

$23.49

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

205

Rubber Stopper

707900778

$3.29

209

Specialized Nut

278004274

$3.28

210

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

215

Start-Stop Button | Not Shown

710005213

$60.49

305

Screw PT Type K-50 X 16

250000959

$2.11

320

Cable Throttle Pedal

710005291

$239.99

330

Front Differential Wiring Harness

710006807

$49.99

600

Multifunction Gauge Mid

710008297

$379.99

700

LH Front Auxiliary LED Light

710008811

$459.99

705

LH Signature Beam

710004994

$169.99

710

RH Front Auxiliary LED Light

710008812

$449.99

711

RH Signature Beam

710004995

$169.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.69

715

Screw PT Type K-50 X 16

250000959

$2.11

717

Ajustment Screw

710005837

$6.35

718

Ball Socket

293900157

$9.59

719

O-Ring

293300192

$4.92

1000

Horn

710004791

$38.99

1010

Horn Bracket

710006573

$13.49

1030

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

1100

12V Power Outlet

710005374

$33.99

1700

Differential Module

710008842

$479.99

1710

FDM Support

710005807

$8.60

1720

Screw PT Type K-50 X 16

250000959

$2.11
