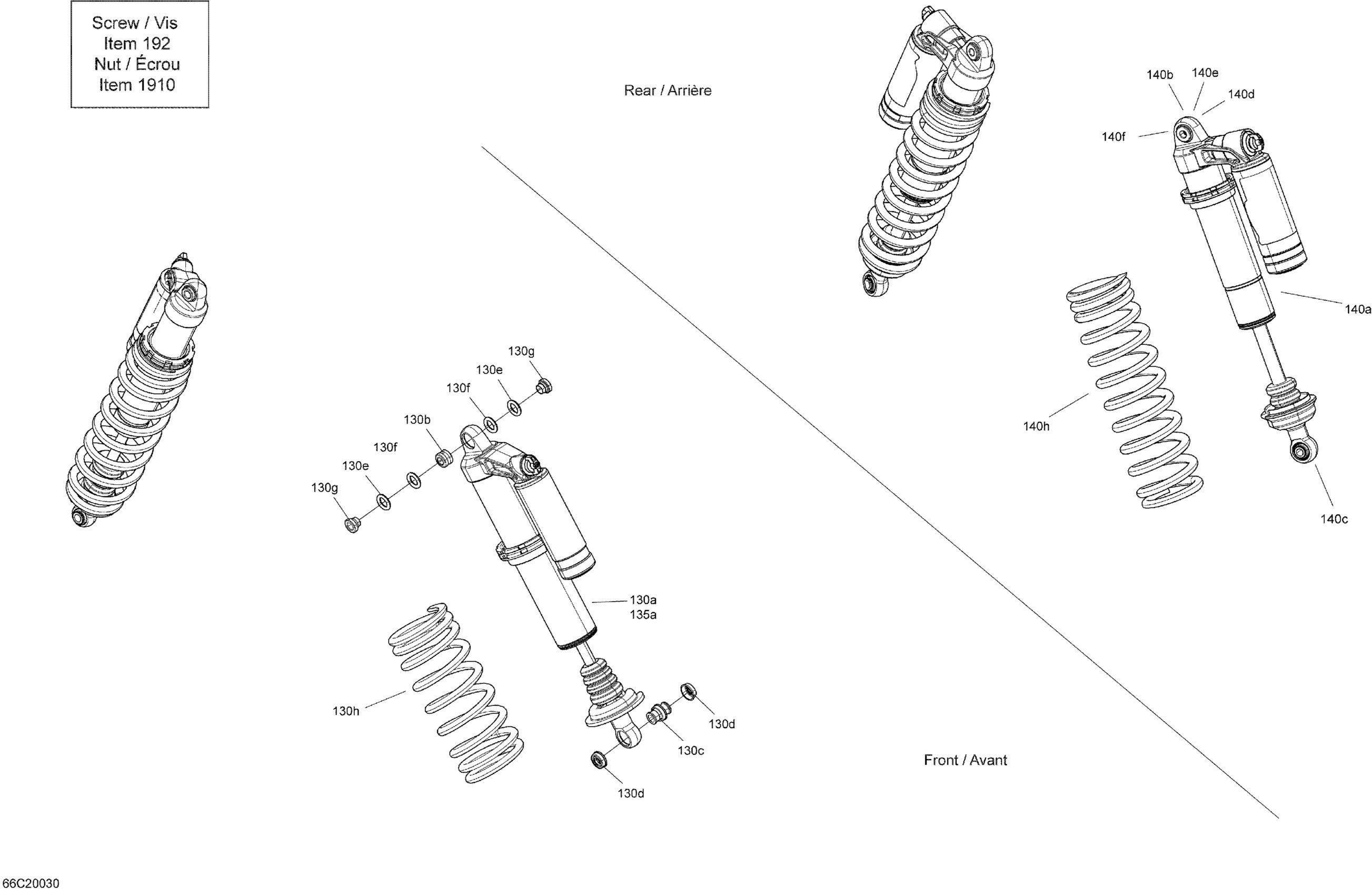

Can-Am 005 - Maverick Sport 1000R - XRC - North America, 2020 07- Shocks Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a6

706203352

$719.99

130b

Spherical Bearing

715900329

$84.99

130c

Spherical Bearing

715900330

$84.99

130d

Protector

715900331

$13.99

130e

O-Ring Bushing

715900268

$14.75

130f

Retaining Ring

715900252

$12.49

130g

Internal Bushing

715900267

$26.49

130h

SPRING_COMPRESSION F B-337 PAINTED - Call your local BRP dealership

706203926

Unavailable

135a

RH Front Shock | Includes 135a to 135a6

706203353

$919.99

140a

Rear Shock | Includes 130a to 130a5

706003181

$789.99

140b

Spherical Bearing

715900337

$84.99

140c

Ball Joint

706004078

$47.49

140d

O-Ring Bushing

715900338

$12.63

140e

Circlip

715900480

$11.49

140f

Reducer

715900481

$27.99

140h

Orange Crush, Rear Compression Spring

706003741

$121.49

192

Flange Screw M12 X 60

250000857

$7.41

1910

Elastic Flange Nut M12

233221466

$2.89
