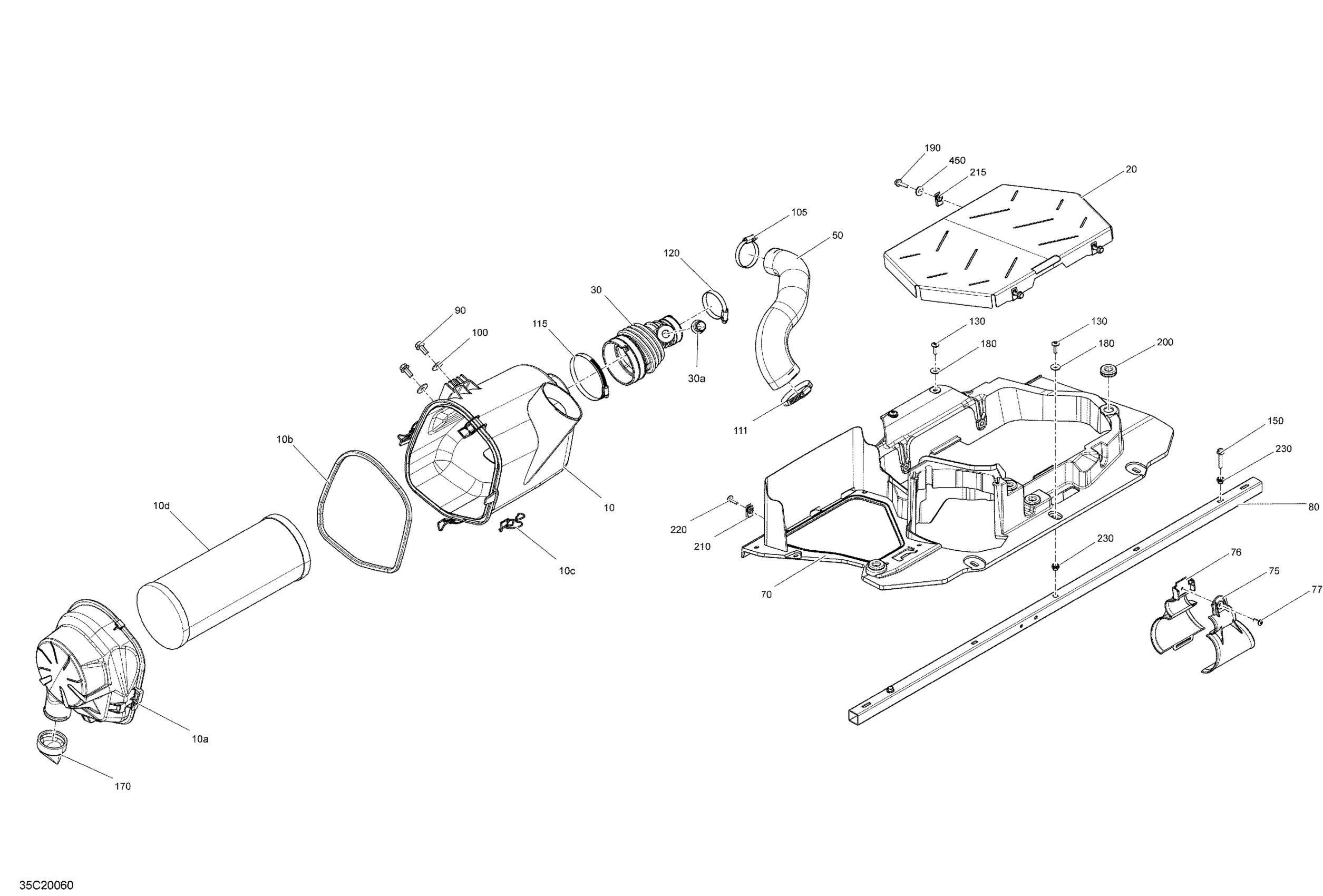

Can-Am 003 - Maverick Turbo - XRC - North America, 2020 02- Air Intake Diagram

#

Description
Price

10

Silencer Intake Ass'y | Includes 10 to 10f

707800859

$129.99

10a

Cover

707800852

$88.99

10b

Gasket Intake Silencer

707800853

$22.49

10c

Clip

293730086

$9.69

10d

Air Filter

715900422

$52.99

20

Protection Grille

707800889

$129.99

30

Hose | Includes 30 to 30b

707800856

$49.99

30a

Breather Valve

273000234

$14.49

50

Air Intake

707800746

$64.99

70

Radiator Support

707801049

$238.49

75

Hose Support

707900756

$5.79

76

Hose Support

707900762

$5.50

77

Torx Screw K50 X 16

250000720

$1.69

80

Square Tube

707801133

$54.99

90

Hex. Flange Screw M8 X 20

207682044

$1.15

100

Flat Washer 8 mm

234082410

$1.47

105

Mounting Clamp

293650303

$3.59

111

Mounting Clamp

293650302

$3.72

115

Norma Clamp

514052924

$14.22

120

Mounting Clamp

293650303

$3.59

130

Torx Screw M6 X 20

250000722

$1.68

150

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

170

Duct Bill Valve

715003114

$13.49

180

Stainless Steel Flat Washer

234062670

$2.11

190

Hex. Flange Screw M6 X 25

207562544

$1.69

200

Grommet

517303756

$4.09

210

Panel Nut M6 X 1.0

250100198

$2.11

215

Panel Nut M6 X 1.0

250100198

$2.11

220

Torx Screw M6 X 20

250000722

$1.68

230

Insert Half Hex Body M6 x 1.0

250100199

$3.19

450

Flat Washer 6 mm

234062410

$0.77
