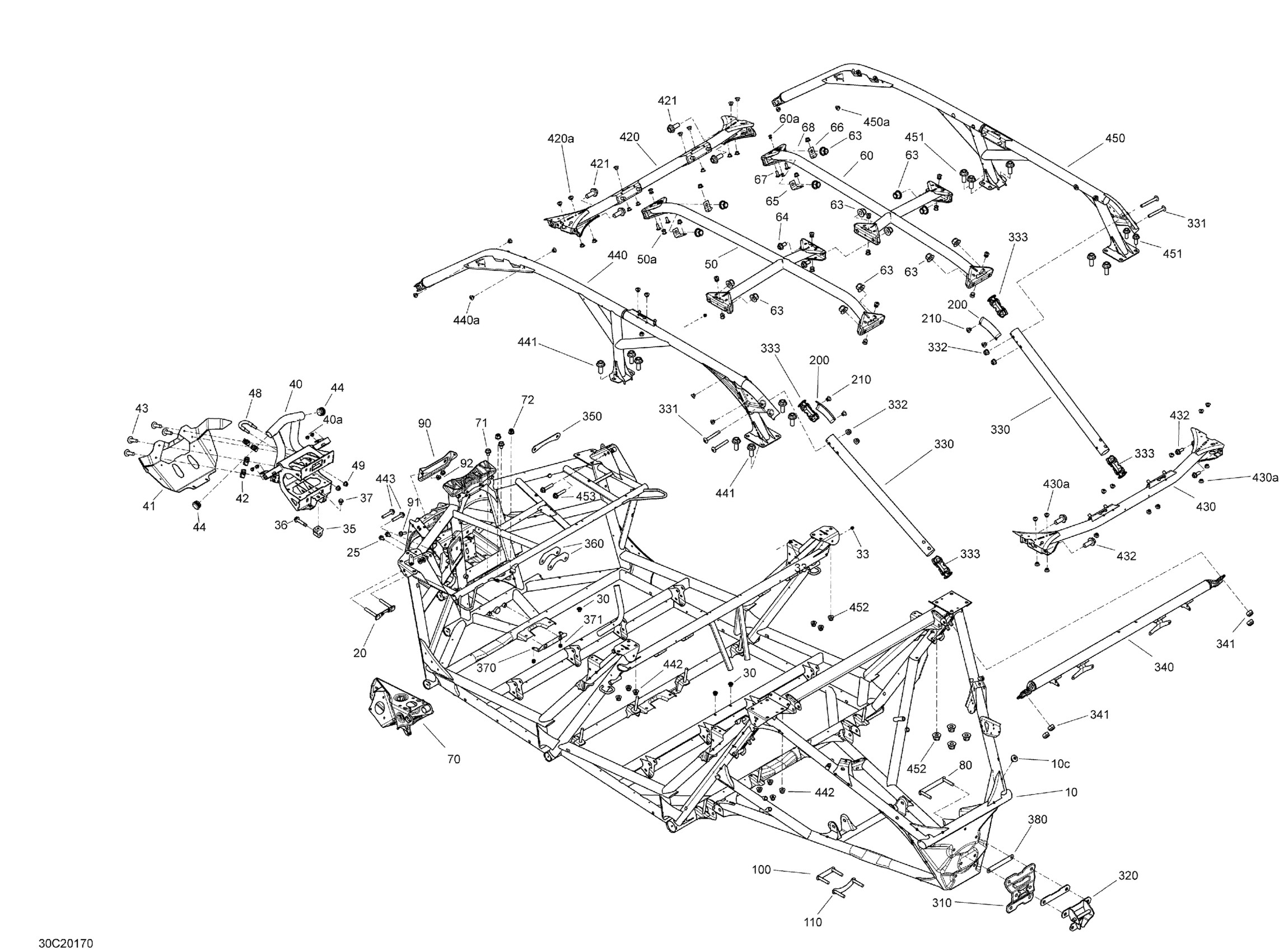

Can-Am 009 - Maverick MAX Turbo RR - XMR - North America, 2020 09- Frame Diagram

#

Description
Price

10

Manta Green, Chassis Kit

715008879

$3,359.99

10c

Pop Rivet 3/16"

390402200

$0.35

20

Front Plate

705207424

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

33

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Manta Green, Front Bumper Kit | Includes 40 to 40a

715008964

$317.99

40a

Pop Rivet 3/16"

390402200

$0.35

41

Front Master Plate

705206871

$103.99

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

U-Clamp

705206983

$37.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Manta Green, LH Cage Reinforcement

705208284

$91.99

50a

Pop Rivet 3/16"

390402200

$0.35

60

Manta Green, RH Cage Reinforcement

705208285

$91.99

60a

Pop Rivet 3/16"

390402200

$0.35

63

Elastic Flange Nut M12

233221466

$2.89

64

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

65

Deep Black, LH Cage Reinforcement

705211746

$58.99

66

Deep Black, RH Cage Reinforcement

705211747

$58.99

67

Torx Head Screw M6 X 16

250000717

$2.11

68

Hex. Flange Elastic Nut M6

233261494

$1.58

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705206852

$22.99

90

Stifner Plate

705206877

$30.99

91

Hex. Flange Screw M6 X 16

207661654

$2.11

92

Hex. Flange Elastic Nut M6

233261494

$1.58

100

Rear Central Plate

705211558

$20.99

110

Rear Plate

705206854

$22.99

200

Connecting Plate

705208286

$13.49

210

Rivet 3/16"

293150102

$0.70

310

Rear Plate

705205750

$25.99

320

Black, Rear Attachement Hook

715004450

$85.99

330

Manta Green, Rear Tube

705208287

$24.99

331

Torx Truss M8 X 65

250000901

$1.90

332

Elastic Flange Nut M8

250100025

$1.48

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705210001

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

380

Front Upper Plate

705206069

$15.99

420

Manta Green, Front Cross Member | Includes 420 to 420a

705210229

$204.99

420a

Pop Rivet 3/16"

390402200

$0.35

421

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

430

Manta Green, Rear Cross Member | Includes 430 to 430a

705208592

$199.99

430a

Pop Rivet 3/16"

390402200

$0.35

431

Elastic Flange Nut M12

233221466

$2.89

432

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

440

Manta Green, LH Cage

715006582

$519.99

440a

Pop Rivet 3/16"

390402200

$0.35

441

Hex Flange Nut m12

233121466

$0.82

442

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

443

Flange Screw M12 X 60

250000857

$7.41

450

Manta Green, RH Cage

715006584

$519.99

450a

Pop Rivet 3/16"

390402200

$0.35

451

Hex Flange Nut m12

233121466

$0.82

452

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

453

Flange Screw M12 X 60

250000857

$7.41
