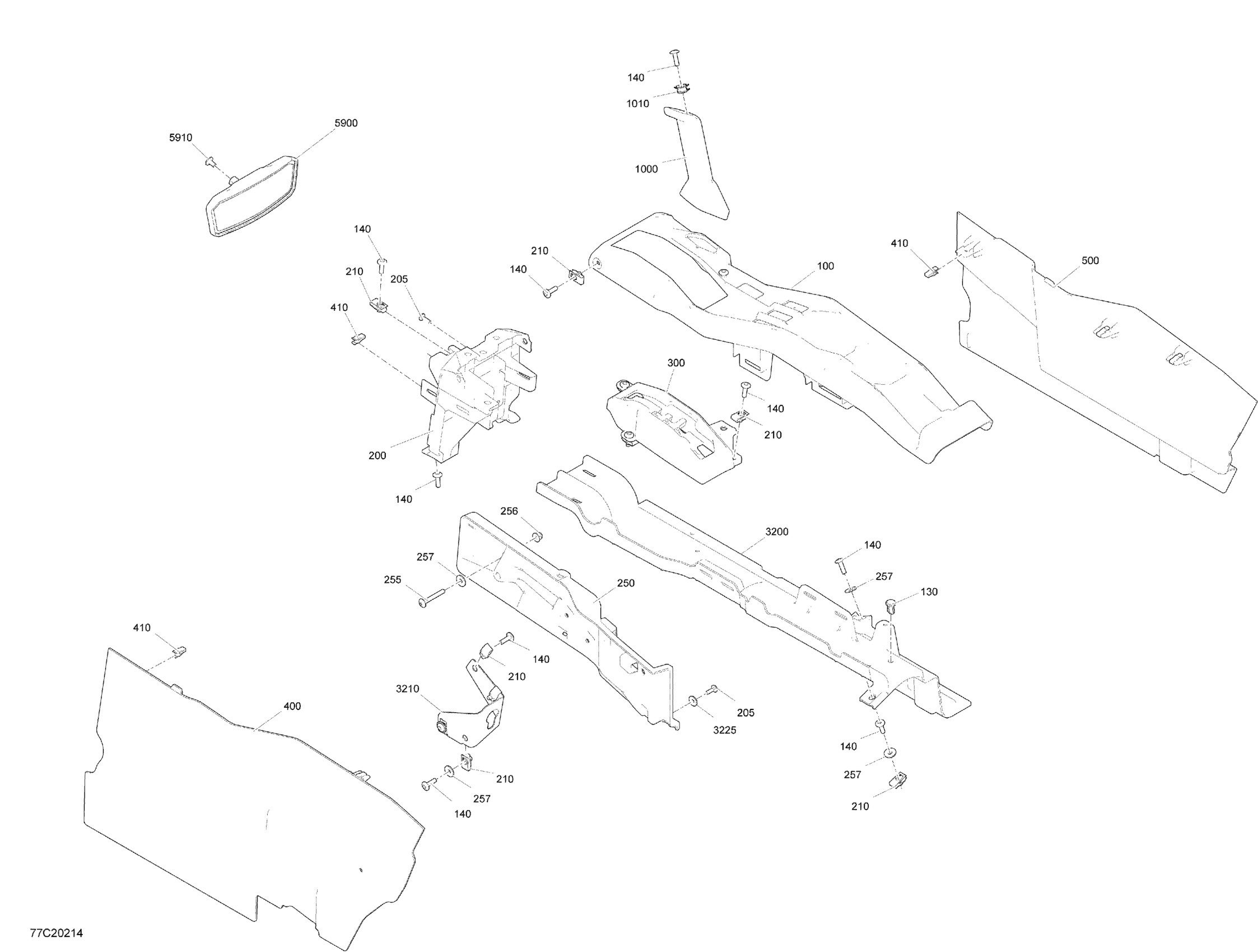

Can-Am 005 - Maverick Turbo RR - XMR - North America, 2020 09- Cab Interior - Console Diagram

Description

Price

100

Front Console Kit

715005023

$154.99

130

Tuflok Plastic Rivet

293150230

$1.47

140

Torx Screw M6 X 20

250000722

$1.68

200

Front Central Console Support

707900459

$65.99

205

Torx Screw K50 X 16

250000720

$1.69

210

Panel Nut M6 X 1.0

250100198

$2.11

250

Shifter Gate Support

707900488

$26.99

255

Torx Screw M6 X 45

250000748

$1.90

256

Hex. Flange Elastic Nut M6

233261466

$2.00

257

Stainless Steel Flat Washer

234062670

$2.11

300

Lever Indicator

707900644

$24.99

400

LH Lateral Dash Panel

707900396

$73.99

410

Clip

705010721

$2.61

500

RH Lateral Dash Panel

707900397

$73.99

1000

Passenger Handle

707900011

$13.75

1010

Connector Tube

707900048

$6.19

3200

Central Support Hose

707900710

$49.99

3210

Cable Support

707900478

$11.99

3225

Washer M5

250200025

$0.74

5900

Central Mirror

707900502

$56.99

5910

Torx Truss Screw M6 X 12

250000767

$2.00
