Description

Price

10

LH Rear Storage Box

708303975

$88.99

11

Insert

291003793

$3.56

12

Hexagonal Cap Screw M6 X 25

250000978

$4.44

13

Torx Screw K50 X 16

250000720

$1.69

14

Hex. Flange Screw M6 X 16

210261650

$1.67

17

Stainless Steel Flat Washer

234062670

$2.11

20

RH Rear Storage Box

708303976

$92.99

21

Insert

291003793

$3.56

22

Hexagonal Cap Screw M6 X 25

250000978

$4.44

23

Torx Screw K50 X 16

250000720

$1.69

24

Hex. Flange Screw M6 X 16

210261650

$1.67

26

Stainless Steel Flat Washer M5

234052670

$1.01

27

Stainless Steel Flat Washer

234062670

$2.11

40

Ball Head Stud

250300016

$14.81

50

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Flat Washer M5

234051670

$2.11

170

RH Latch Lid Ass'y

708304019

$154.99

175

LH Control

708301222

$43.99

176

Panel Nut M6 X 1.0

250100208

$1.46

177

Torx Screw M6 X 20

250000722

$1.68

178

LH Control Protector

708304012

$10.06

179

Dart

293730079

$2.09

180

LH Latch Lid Ass'y

708304020

$154.99

185

RH Control

708301697

$43.99

186

Panel Nut M6 X 1.0

250100208

$1.46

187

Torx Screw M6 X 20

250000722

$1.68

188

RH Control Protector

708304013

$10.06

189

Dart

293730079

$2.09

200

Torx Truss Screw M6 X 12

250000767

$2.00

240

Hinge

708300006

$25.99

250

Torx Truss Screw M6 X 12

250000767

$2.00

260

Back Plate Support

708300129

$11.49

300

Shock Absorber

708303322

$79.99

360

Gasket

708304139

$13.75

370

Gasket

708304139

$13.75

410

Carbon Black, LH Rear Box Cover

708304086

$379.99

415

LH Rear Box Trim

708303002

$129.99

417

Edge Clip

517302785

$0.88

425

LH interior Box Cover

708304207

$82.99

426

Striker Cover

708303255

$6.89

427

Hex. Forming Screw M5 X 16

210251650

$1.15

428

Amber Reflector

705015552

$9.19

429

Edge Clip

517302785

$0.88

430

Torx Truss PT K40 x 12

250001131

$2.11

431

Panel Nut M6 X 1.0

250100208

$1.46

432

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

440

Carbon Black, RH Rear Box Cover

708304093

$379.99

445

RH Rear Trim Box

708303003

$129.99

447

Edge Clip

517302785

$0.88

455

RH interior Box Cover

708304208

$82.99

456

Striker Cover

708303255

$6.89

457

Hex. Forming Screw M5 X 16

210251650

$1.15

458

Amber Reflector

705015552

$9.19

459

Edge Clip

517302785

$0.88

460

Torx Truss PT K40 x 12

250001131

$2.11

461

Panel Nut M6 X 1.0

250100208

$1.46

462

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

470

Ball Joint

250300064

$13.49

580

LH Rear Heated Holding Handle

708304248

$163.99

590

RH Rear Heated Holding Handle

708304249

$174.99

591

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

592

Flat Washer 8 mm

234082410

$1.47

600

LH Fairing Kit

219800570

$89.99

603

LH Lever Trim

708303323

$5.39

604

Torx Screw K50 X 25

250001110

$1.99

605

LH Front Armrest Trim

708303393

$5.69

606

LH Rear Arm Rest Trim

708303749

$5.69

607

Torx-Truss Pt K40 X 16

250000759

$2.11

608

Torx-Truss Pt K40 X 16

250000759

$2.11

610

RH Fairing Kit

219800571

$89.99

613

RH Lever Trim

708303324

$5.99

614

Torx Screw K50 X 25

250001110

$1.99

615

RH Front Armrest Trim

708303394

$5.69

616

RH Rear Arm Rest Trim

708303750

$5.69

617

Torx-Truss Pt K40 X 16

250000759

$2.11

618

Torx-Truss Pt K40 X 16

250000759

$2.11

1000

Retainer Cable

708300385

$38.99

1010

Torx Head Screw M6 X 16

250000717

$2.11

1020

Flat Washer, Stainless/Neoprene

211200055

$0.73

1030

Hex. Nut M6

232061414

$0.53

1050

Heat Shield

705016874

$47.99

1150

LH Access Cover

705016886

$16.99

1151

Torx Screw K50 X 16

250000720

$1.69

1160

RH Access Cover

705016887

$16.99

1161

Torx Screw K50 X 16

250000720

$1.69

1161a

Hex. Flange Elastic Nut M6

233261494

$1.58

1161b

Hex. Flange Screw M6 X 25

207662554

$1.48

1161c

Stainless Steel Flat Washer

234062670

$2.11

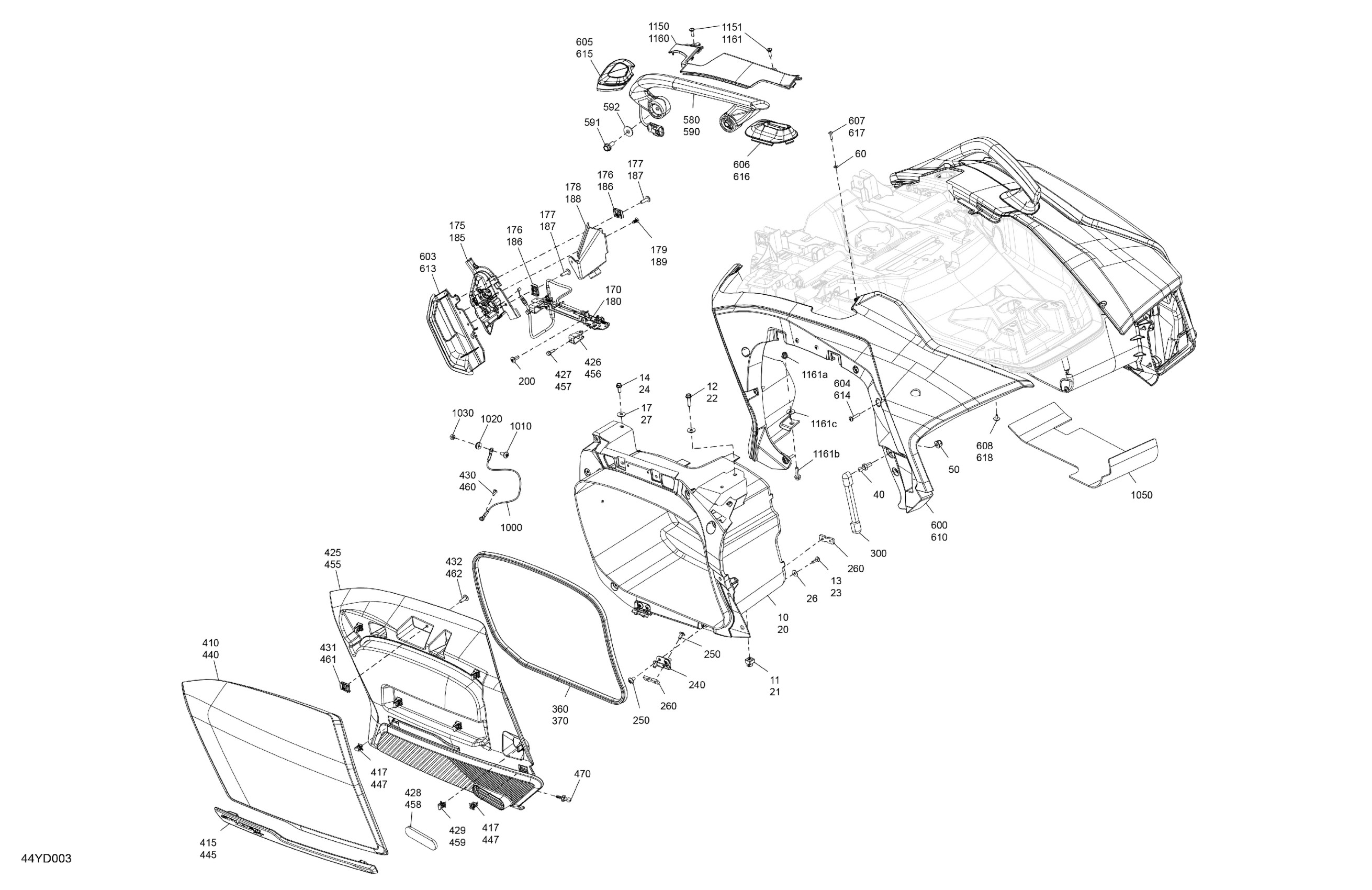

Can-Am Europe - RT LIMITED - Dark Edition - G1RE - LIMITED - Carbon Black, 2024 07- Body - Side Cargo Diagram

LH Rear Storage Box

Insert

Hexagonal Cap Screw M6 X 25

Torx Screw K50 X 16

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer

RH Rear Storage Box

Insert

Hexagonal Cap Screw M6 X 25

Torx Screw K50 X 16

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer M5

Stainless Steel Flat Washer

Ball Head Stud

Hex. Flange Elastic Nut M8

Flat Washer M5

RH Latch Lid Ass'y

LH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

LH Control Protector

Dart

LH Latch Lid Ass'y

RH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

RH Control Protector

Dart

Torx Truss Screw M6 X 12

Hinge

Torx Truss Screw M6 X 12

Back Plate Support

Shock Absorber

Gasket

Gasket

Carbon Black, LH Rear Box Cover

LH Rear Box Trim

Edge Clip

LH interior Box Cover

Striker Cover

Hex. Forming Screw M5 X 16

Amber Reflector

Edge Clip

Torx Truss PT K40 x 12

Panel Nut M6 X 1.0

Torx Screw M6 X 1.0 X 18, Scotch Grip

Carbon Black, RH Rear Box Cover

RH Rear Trim Box

Edge Clip

RH interior Box Cover

Striker Cover

Hex. Forming Screw M5 X 16

Amber Reflector

Edge Clip

Torx Truss PT K40 x 12

Panel Nut M6 X 1.0

Torx Screw M6 X 1.0 X 18, Scotch Grip

Ball Joint

LH Rear Heated Holding Handle

RH Rear Heated Holding Handle

Hex. Flange Screw M8 X 20, Scotch Grip

Flat Washer 8 mm

LH Fairing Kit

LH Lever Trim

Torx Screw K50 X 25

LH Front Armrest Trim

LH Rear Arm Rest Trim

Torx-Truss Pt K40 X 16

Torx-Truss Pt K40 X 16

RH Fairing Kit

RH Lever Trim

Torx Screw K50 X 25

RH Front Armrest Trim

RH Rear Arm Rest Trim

Torx-Truss Pt K40 X 16

Torx-Truss Pt K40 X 16

Retainer Cable

Torx Head Screw M6 X 16

Flat Washer, Stainless/Neoprene
