Description

Price

50

Cup Holder

707900288

$16.99

90

Plug

293000126

$1.19

100

Dashboard Up Kit

715008366

$199.99

110

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

150

Dash Support

707900249

$65.99

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

180

Front Upper Deflector

707900755

$54.99

181

Pop Rivet 3/16"

293150103

$0.55

185

Front Upper Deflector

707900747

$12.99

190

LH Upper Deflector

707900738

$54.99

250

RH Support

707900367

$38.99

300

Plier

707900940

$5.39

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

315

Hex. Screw M6 X 80

207068044

$4.12

325

Hex. Flange Elastic Nut M6

233261494

$1.58

515

Flat Washer M8

250200158

$2.11

880

Hex. Flange Elastic Nut M6

233261494

$1.58

980

Torx Truss Screw M6 X 25

250000807

$2.11

1000

Drawer

707900252

$20.99

1005

O-Ring

293300194

$1.25

2200

LH Lower Dash | Except Base Package

707900251

Unavailable

2210

Torx Screw M6 X 20

250000722

$1.68

2215

Stainless Steel Flat Washer

234062670

$2.11

2220

Insert Half Hex Body M6 x 1.0

250100199

$3.19

2230

Screw PT Type K-50 X 16

250000959

$2.11

2250

Switch Support

703501098

$16.86

2300

RH Lower Dash | Except Base, Cab Package

707900250

$66.99

2305

Cap

710004993

$7.69

2310

Torx Screw K50 X 16

250000720

$1.69

2320

Torx Screw M6 X 20

250000722

$1.68

2325

Stainless Steel Flat Washer

234062670

$2.11

2335

Stainless Steel Flat Washer

234062670

$2.11

2340

Panel Nut M6 X 1.0

250100198

$2.11

2350

Gauge Support

707900706

$20.99

2350

Gauge Support

707900891

$22.99

2351

Cluster Cap | Package DPS

709402093

$13.99

2355

Deep Black, LH Trim Gauge

709402210

$28.99

2360

Deep Black, RH Trim Gauge

709402211

$28.99

2370

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$43.99

2380

Screw PT Type K-50 X 16

250000959

$2.11

2390

Grommet

705003264

$4.09

2400

Passenger Handhold

707900248

$49.99

2410

Torx Screw M6 X 60

250000648

$7.51

2420

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

2420b

Hex. Elastic Stop Nut M6

232561600

$1.15

2500

Removable Storage Bin

715004344

$88.99

2510

Removable Storage Bin

715004344

$88.99

2520

Clip | Outlander Max

269501945

$15.89

2530

Handle | DPS Package

707900567

$19.99

2550

Rubber Bumper

293830005

$8.09

2560

Cap

293000120

$2.89

2670

Torx Truss Screw M6 X 16

250000721

$1.69

2700

Safety Net Link

707900592

$4.14

2710

Torx Screw K50 X 16

250000720

$1.69

3000

Shifter Gate

707900608

$8.99

3010

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3050

Shifter Gate Deflector

707900506

$5.69

3060

Push Nut

250100178

$0.63

4080

Flat Washer M6.6 X 22

250200162

$2.32

4090

Torx Screw M6 X 20

250000722

$1.68

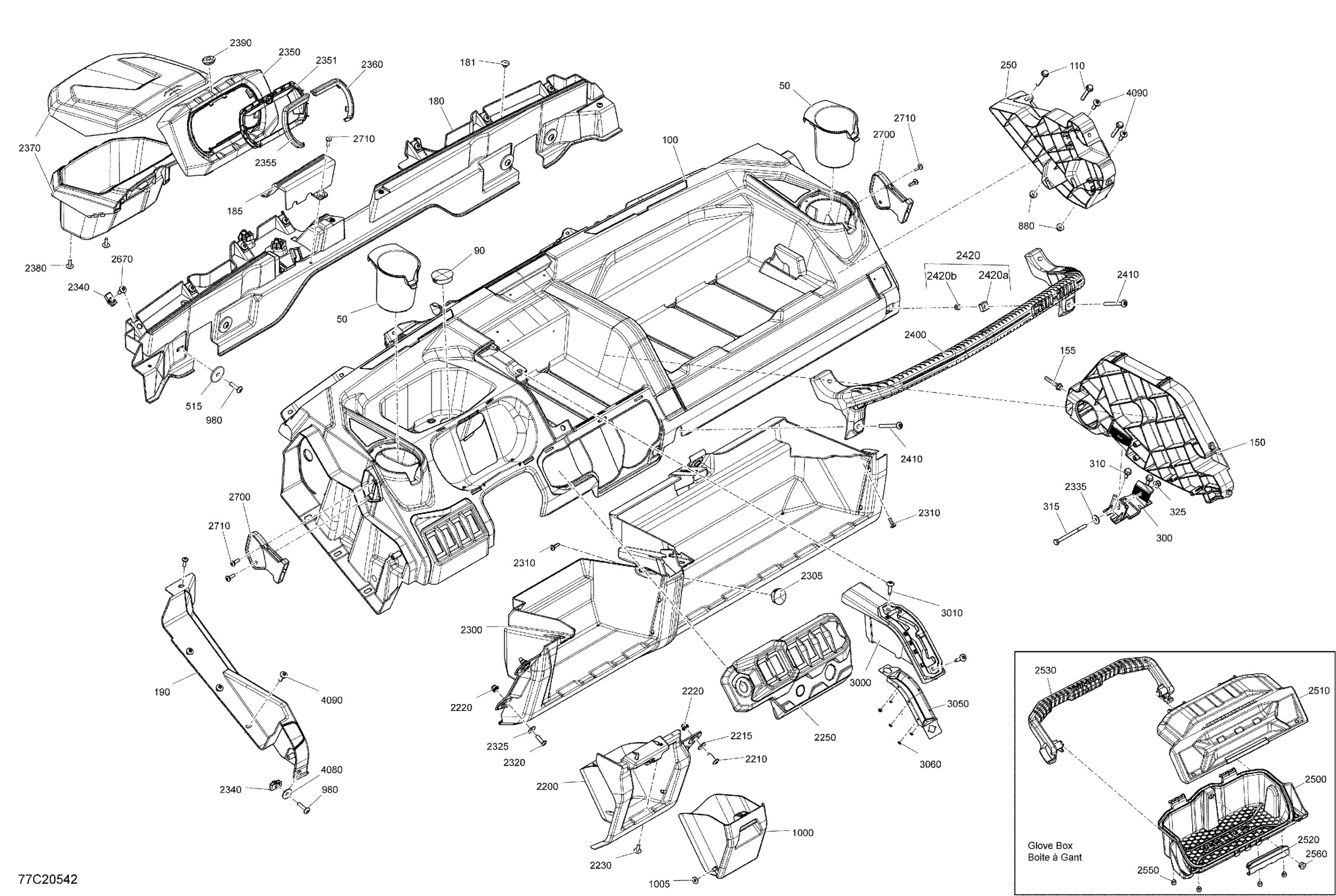

Can-Am 002 - Defender HD8 - North America, 2020 09- Cab Interior - Dashboard - BASE - DPS -XT Diagram

Cup Holder

Plug

Dashboard Up Kit

Hex. Flange Screw M6 X 40, Scotch Grip

Dash Support

Hex. Flange Screw S.Grip M6 X 35

Front Upper Deflector

Pop Rivet 3/16"

Front Upper Deflector

LH Upper Deflector

RH Support

Plier

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Screw M6 X 80

Hex. Flange Elastic Nut M6

Flat Washer M8

Hex. Flange Elastic Nut M6

Torx Truss Screw M6 X 25

Drawer

O-Ring

LH Lower Dash | Except Base Package

Torx Screw M6 X 20

Stainless Steel Flat Washer

Insert Half Hex Body M6 x 1.0

Screw PT Type K-50 X 16

Switch Support

RH Lower Dash | Except Base, Cab Package

Cap

Torx Screw K50 X 16

Torx Screw M6 X 20

Stainless Steel Flat Washer

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Gauge Support

Gauge Support

Cluster Cap | Package DPS

Deep Black, LH Trim Gauge

Deep Black, RH Trim Gauge

Storage Box Ass'y | Includes 2370 to 2370b

Screw PT Type K-50 X 16

Grommet

Passenger Handhold

Torx Screw M6 X 60

M6 Nut Housing Ass'y | Includes 7r to 7r2

M6 Nut Housing Ass'y | Includes 290 to 290b

Hex. Elastic Stop Nut M6

Removable Storage Bin

Removable Storage Bin

Clip | Outlander Max

Handle | DPS Package

Rubber Bumper

Cap

Torx Truss Screw M6 X 16

Safety Net Link

Torx Screw K50 X 16

Shifter Gate

Torx Screw M6 X 25 | XT Models

Shifter Gate Deflector

Push Nut

Flat Washer M6.6 X 22

Torx Screw M6 X 20
