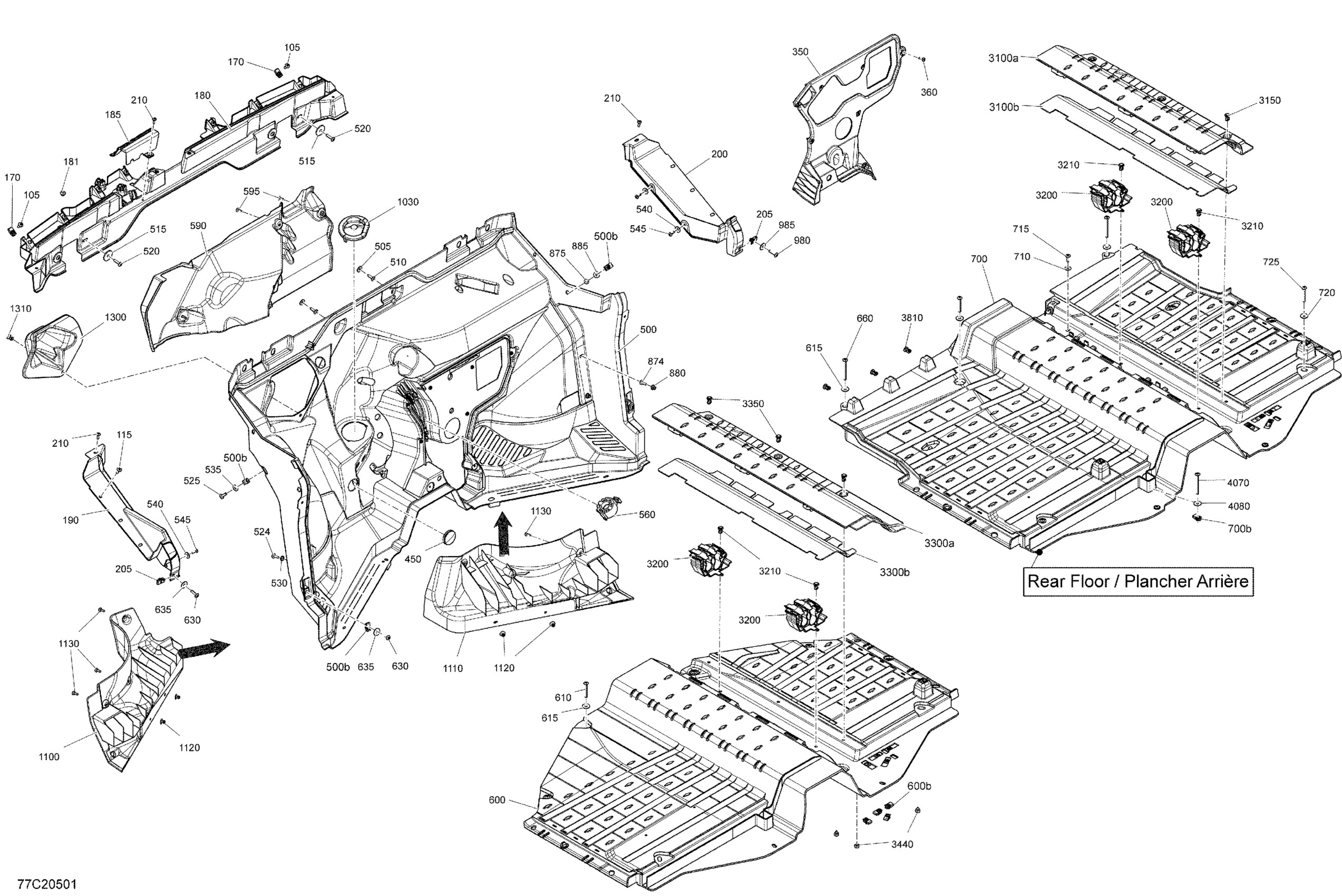

Can-Am 013 - Defender MAX HD10 - Limited - North America, 2020 09- Cab Interior - Fire Wall Section Diagram

#

Description
Price

105

Torx Truss Screw M6 X 16

250000721

$1.69

115

Torx Screw M6 X 20

250000722

$1.68

170

Panel Nut M6 X 1.0

250100198

$2.11

180

Front Upper Deflector

707900755

$54.99

181

Pop Rivet 3/16"

293150103

$0.55

185

Front Upper Deflector

707900747

$12.99

190

LH Upper Deflector

707900738

$54.99

205

Panel Nut M6 X 1.0

250100198

$2.11

210

Torx Screw K50 X 16

250000720

$1.69

350

Front Panel Trim

707900741

$44.99

360

Torx Screw K50 X 16

250000720

$1.69

450

Rubber Cover

293250242

$6.99

500

Front Cab Panel Ass'y | Includes 500 to 500b

707900981

$219.99

500b

Panel Nut M6 X 1.0

250100198

$2.11

505

Stainless Steel Flat Washer

234062670

$2.11

510

Torx Screw M6 X 20

250000722

$1.68

515

Flat Washer M8

250200158

$2.11

520

Torx Truss Screw M6 X 25

250000807

$2.11

524

Torx Screw M6 X 20

250000712

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Hex. Flange Elastic Nut M6

233261494

$1.58

535

Stainless Steel Flat Washer

234062670

$2.11

540

Stainless Steel Flat Washer

234062670

$2.11

545

Torx Screw K50 X 16

250000720

$1.69

560

Split Grommet

707900719

$4.39

590

Front Air Deflector

707900749

$54.99

595

Torx Screw K50 X 16

250000720

$1.69

600

Floor Ass'y | Includes 600 to 600b

707900431

$229.99

600b

Panel Nut M6 X 1.0

250100198

$2.11

610

Torx Truss M6 X 50

250000868

$2.11

615

Flat Washer M6.6 X 22

250200162

$2.32

630

Torx Truss Screw M6 X 25

250000807

$2.11

635

Flat Washer M6.6 X 22

250200162

$2.32

660

Torx Screw M6 X 70

250000954

$1.90

700

Rear Floor Ass'y | Includes 700 to 700b

707900464

$299.99

700b

Panel Nut M6 X 1.0

250100198

$2.11

710

Stainless Steel Flat Washer

234062670

$2.11

715

Torx Screw M6 X 20

250000722

$1.68

720

Flat Washer M6.6 X 22

250200162

$2.32

725

Torx Truss M6 X 50

250000868

$2.11

874

Torx Screw M6 X 20

250000712

$2.11

875

Torx Screw M6 X 20

250000722

$1.68

880

Hex. Flange Elastic Nut M6

233261494

$1.58

885

Stainless Steel Flat Washer

234062670

$2.11

1030

Sterring Column Trim

707900851

$6.09

1100

LH Front Deflector

707900750

$54.99

1110

RH Front Deflector

707900751

$54.99

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1130

Torx Screw K50 X 16

250000720

$1.69

1300

Exterior Cover

707900389

$14.49

1310

Tuflok Plastic Rivet

293150230

$1.47

Not Available As Spare Part - Friction Washer

Unavailable

3100a

Floor Panel

707900806

$43.99

3100b

Heat Shield

707900840

$86.99

3150

Tuflok Plastic Rivet

293150230

$1.47

3200

Hose Support

707900325

$14.49

3210

Tuflok Plastic Rivet

293150230

$1.47

3300a

Floor Panel

707900878

$53.99

3300b

Heat Shield

707900840

$86.99

3350

Tuflok Plastic Rivet

293150230

$1.47

3440

Rubber Bumper

293830005

$8.09

3810

Tuflok Plastic Rivet

293150230

$1.47

4070

Torx Screw M6 X 70

250000954

$1.90

4080

Flat Washer M6.6 X 22

250200162

$2.32
