Description

Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$21.99

260

Torx Screw M6 X 20

250000722

$1.68

270

Stainless Steel Flat Washer

234062670

$2.11

280

Bushing

708300737

$5.99

300

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

$3,149.99

300a

Driver Door Harness

705800047

$244.99

300b

LH Window Regulator Ass'y

705800594

$689.99

300c

LH Roll-Down Glass

705800016

$559.99

300d

LH Interior Latch Kit

703500915

$209.99

300h

LH A-Pillar Glass

705800608

$349.99

300j

LH Routed Inner Door | For Plastic Handle

705800322

$1,209.99

300k

LH Ext Door Panel

705800665

$1,319.99

300m

Window Switch

710004979

$35.99

300n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

300p

Seal 705800290 - 5000 MM

705800289

$229.99

300r

LH Door Panel Kit

715006687

$229.99

300s

LH Interior Handle

705800324

$119.99

300t

Window Guide Bracket

705800595

$174.99

300u

Window Guide Extrusion

705800590

$174.99

300v

Key Set

705800184

$25.99

300w

Folcked Beltline Trim 705800294 600mm

705800591

$54.99

300x

LH Door Pocket

705800604

$184.99

300y

Plastic Dart

705009405

$1.99

300z

Torx Truss M8 X 25

250000874

$2.11

300aa

Socket Head Screw M5 X 10

205951046

$2.43

300ab

Black, Dart

293730011

$0.99

300ac

Socket Screw M6 X 8

205460860

$0.52

300ad

Stainless Steel Flat Washer

234062670

$2.11

300ae

Torx-truss M/s M6 X 10

250000995

$4.44

300af

Torx Truss M6X14

250000789

$5.39

300ag

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

300ah

Socket Head Screw M8 X 40

205484060

$4.12

300aj

Hex. Flange Elastic Nut M6

233261494

$1.58

300ak

Elastic Flange Nut M8

233281466

$1.01

300am

Hex. Flange Screw M6 X 20

207662044

$2.00

300an

LH Latch Cable 2.4''

715900493

$59.99

300ap

Interior Latch Cable 28''

715900504

$98.99

300aq

LH Power Window Switch Housing

715900526

$15.49

305

Striker Bolt

705800038

$24.49

310

Conical Spring Washer M12

250200005

$3.27

312

Elastic Stop Nut M12

232521416

$1.69

320

Torx Truss M8 X 25

250000874

$2.11

325

LH Front Striker Support

705801086

$44.99

331

Lower Female Door Hinge

705800482

$23.49

332

LH Upper Male Door Hinge

705800340

$43.99

333

NEEDS DESCRIPTION

705801202

$119.99

340

Torx Truss M8 X 25

250000874

$2.11

345

Retaining Ring

293370125

$2.59

365

Torx Truss M/S M8 X 20

250000953

$2.11

371

LH Central Female Door Hinge

705800348

$70.99

400

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

$2,859.99

400a

Passenger Door Harness

705800050

$249.99

400b

RH Window Regulator Ass'y

705800593

$689.99

400c

RH Roll-Down Glass

705800025

$559.99

400d

RH Interior Latch Kit

703500916

$209.99

400h

RH A-Pillar Glass

705800609

$349.99

400j

RH Routed Inner Door | For Plastic Handle

705800323

$1,239.99

400k

RH Door Panel EXT

705800666

$1,319.99

400m

Window Switch

710004979

$35.99

400n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

400p

Seal 705800290 - 5000 MM

705800289

$229.99

400r

RH Door Panel Kit

715006689

$229.99

400s

RH Interior Handle

705800325

$119.99

400t

Window Guide Bracket

705800595

$174.99

400u

Window Guide Extrusion

705800590

$174.99

400w

Folcked Beltline Trim 705800294 600mm

705800591

$54.99

400x

RH Door Pocket

705800605

$184.99

400y

Plastic Dart

705009405

$1.99

400z

Torx Truss M8 X 25

250000874

$2.11

400aa

Socket Head Screw M5 X 10

205951046

$2.43

400ab

Black, Dart

293730011

$0.99

400ac

Socket Screw M6 X 8

205460860

$0.52

400ad

Stainless Steel Flat Washer

234062670

$2.11

400ae

Torx-truss M/s M6 X 10

250000995

$4.44

400af

Torx Truss M6X14

250000789

$5.39

400ag

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

400ah

Socket Head Screw M8 X 40

205484060

$4.12

400aj

Hex. Flange Elastic Nut M6

233261494

$1.58

400ak

Elastic Flange Nut M8

233281466

$1.01

400am

Hex. Flange Screw M6 X 20

207662044

$2.00

400an

RH Latch Cable 2.9''

715900494

$59.99

400ap

Interior Latch Cable 28''

715900504

$98.99

400aq

RH Power Window Switch Housing

715900527

$21.99

405

Striker Bolt

705800038

$24.49

410

Conical Spring Washer M12

250200005

$3.27

412

Elastic Stop Nut M12

232521416

$1.69

420

Torx Truss M8 X 25

250000874

$2.11

425

RH Front Striker Support

705800351

$43.99

432

RH Male Upper Door Hinge

705800341

$43.99

433

NEEDS DESCRIPTION

705801188

$119.99

440

Torx Truss M8 X 25

250000874

$2.11

461

RH Central Female Door Hinge

705800349

$70.99

465

Torx Truss M/S M8 X 20

250000953

$2.11

5000

Acoustic Insulation

705800504

$5.29

5005

Acoustic Insulation

705800515

$5.29

5020

Acoustic Insulation

705800506

$5.29

5240

LH Insulating Foam

705800278

$9.39

5250

RH Insulating Foam

705800279

$9.39

5260a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5400

Acoustic Insulation

705800507

$5.29

6030

Torx Screw M6 X 20

250000712

$2.11

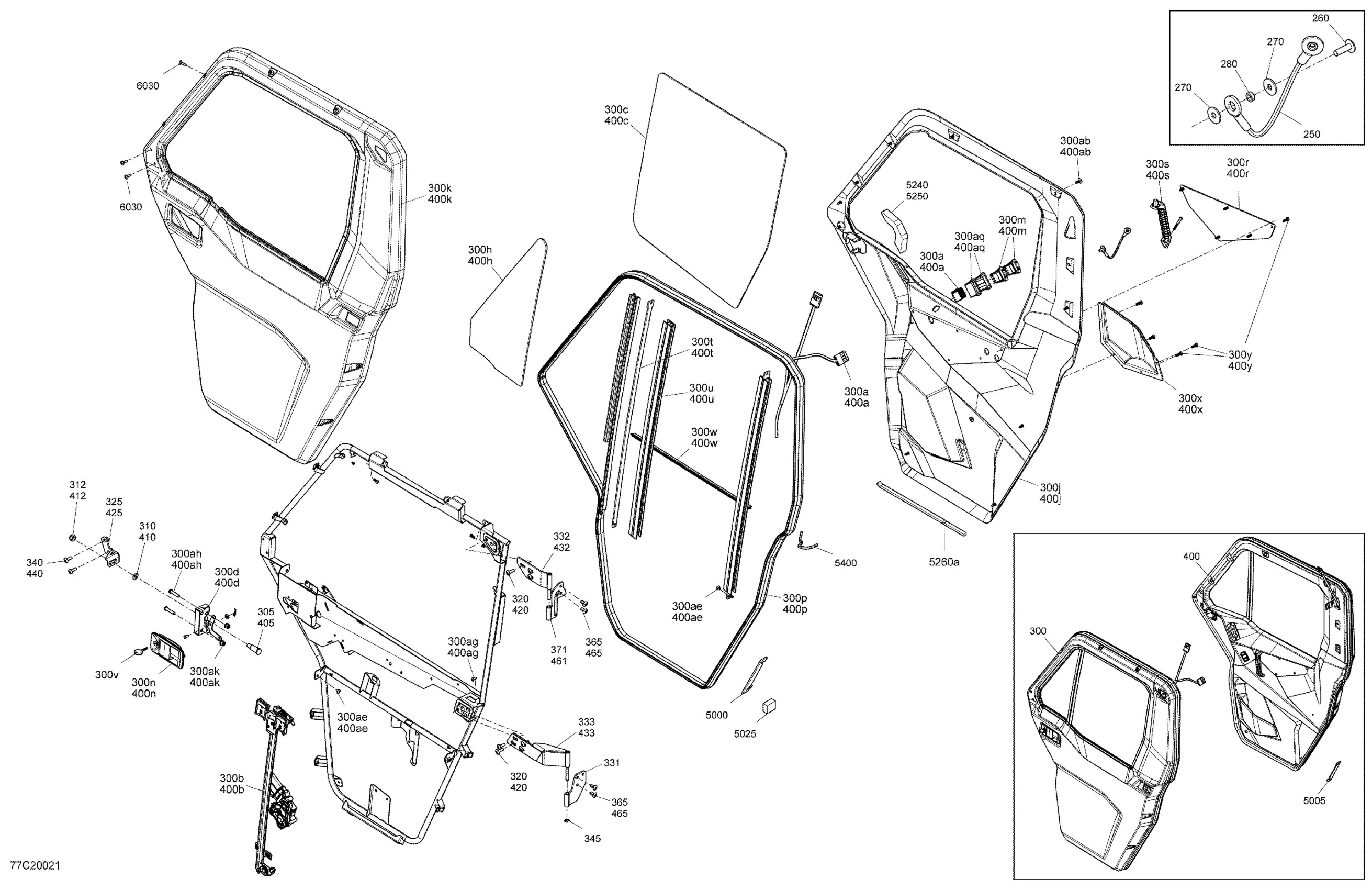

Can-Am 013 - Defender MAX HD10 - Limited - North America, 2020 09- Cab - Front Door Diagram

Door Limit Device Kit | 2nd version, 2 Holes

Torx Screw M6 X 20

Stainless Steel Flat Washer

Bushing

LH Front Rigid Door Ass'y | Includes 300 to 300a10

Driver Door Harness

LH Window Regulator Ass'y

LH Roll-Down Glass

LH Interior Latch Kit

LH A-Pillar Glass

LH Routed Inner Door | For Plastic Handle

LH Ext Door Panel

Window Switch

Exterior Paddle Latch | Keys 705800184 sold separately

Seal 705800290 - 5000 MM

LH Door Panel Kit

LH Interior Handle

Window Guide Bracket

Window Guide Extrusion

Key Set

Folcked Beltline Trim 705800294 600mm

LH Door Pocket

Plastic Dart

Torx Truss M8 X 25

Socket Head Screw M5 X 10

Black, Dart

Socket Screw M6 X 8

Stainless Steel Flat Washer

Torx-truss M/s M6 X 10

Torx Truss M6X14

Black, Socket Screw, M6 X 16 S.Grip

Socket Head Screw M8 X 40

Hex. Flange Elastic Nut M6

Elastic Flange Nut M8

Hex. Flange Screw M6 X 20

LH Latch Cable 2.4''

Interior Latch Cable 28''

LH Power Window Switch Housing

Striker Bolt

Conical Spring Washer M12

Elastic Stop Nut M12

Torx Truss M8 X 25

LH Front Striker Support

Lower Female Door Hinge

LH Upper Male Door Hinge

NEEDS DESCRIPTION

Torx Truss M8 X 25

Retaining Ring

Torx Truss M/S M8 X 20

LH Central Female Door Hinge

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

Passenger Door Harness

RH Window Regulator Ass'y

RH Roll-Down Glass

RH Interior Latch Kit

RH A-Pillar Glass

RH Routed Inner Door | For Plastic Handle

RH Door Panel EXT

Window Switch

Exterior Paddle Latch | Keys 705800184 sold separately

Seal 705800290 - 5000 MM

RH Door Panel Kit

RH Interior Handle

Window Guide Bracket

Window Guide Extrusion

Folcked Beltline Trim 705800294 600mm

RH Door Pocket

Plastic Dart

Torx Truss M8 X 25

Socket Head Screw M5 X 10

Black, Dart

Socket Screw M6 X 8

Stainless Steel Flat Washer

Torx-truss M/s M6 X 10

Torx Truss M6X14

Black, Socket Screw, M6 X 16 S.Grip

Socket Head Screw M8 X 40

Hex. Flange Elastic Nut M6

Elastic Flange Nut M8
