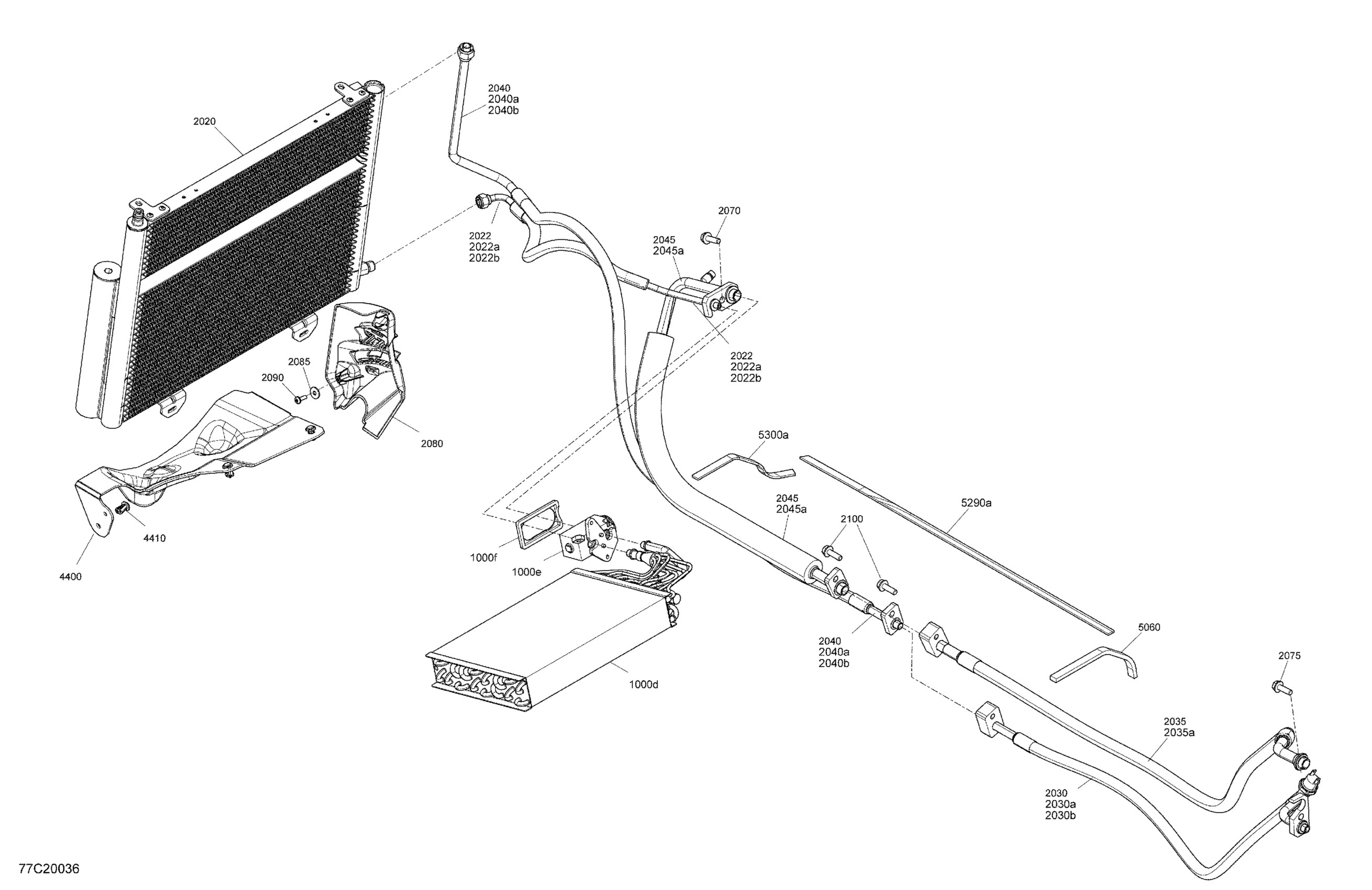

Can-Am 012 - Defender HD10 - Limited - North America, 2020 09- Cab - Cooling Air Conditioner - Cab LTD Diagram

Description

Price

1000d

Evaporator | Includes 1000c TO 1000d

705800786

$469.99

1000e

Expansion Valve

705800458

$76.99

1000f

Gasket

705800519

$20.99

2020

Condenser | Includes 2020 to 2020d

520001931

$729.99

2020a

Plastic Cap

715900678

$8.29

2020b

O-Ring

715900671

$2.61

2020c

Dessicant Cartridge

715900672

$47.99

2020d

Plug

715900679

$29.99

2022

Hose | Includes 2022 to 2022b

705800531

$134.99

2022a

Sealing Washer #6

715900665

$11.06

2022b

O-Ring | Not Shown

715900687

$17.49

2030

Compressor Hose | Includes 2030 to 2030b

705800521

$159.99

2030a

Sealing Washer #8

715900666

$11.06

2030b

Pressure Switch

715900673

$23.99

2035

Compressor Hose | Includes 2035 to 2035a

705800522

$159.99

2035a

Sealing Washer #12

715900667

$11.06

2040

Compressor Hose | Includes 2040 to 2040b

705800523

$159.99

2040a

O-Ring

715900669

$26.49

2040b

Sealing Washer #8

715900666

$11.06

2045

Compressor Hose | Includes 2045 to 2045a

705800524

$159.99

2045a

Sealing Washer #12

715900667

$11.06

2070

Hex. Elastic Flange Nut M8

233281416

$1.48

2075

Hex. Flange Screw M8 X 25

207682534

$2.11

2080

Hose Support

705800588

$16.49

2085

Stainless Steel Flat Washer

234062670

$2.11

2090

Torx Screw K50 X 16

250000720

$1.69

2100

Hex. Flange Screw M8 X 25

207682534

$2.11

4400

Front Air Deflector

705800489

$94.99

4410

Tuflok Plastic Rivet

293150230

$1.47

5060

Neoprene Seal (1PAC=3M)

219704364

$27.49

5060a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5290a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5300a

Gasket, Neoprene 2000Mm Long

219704476

$15.36
