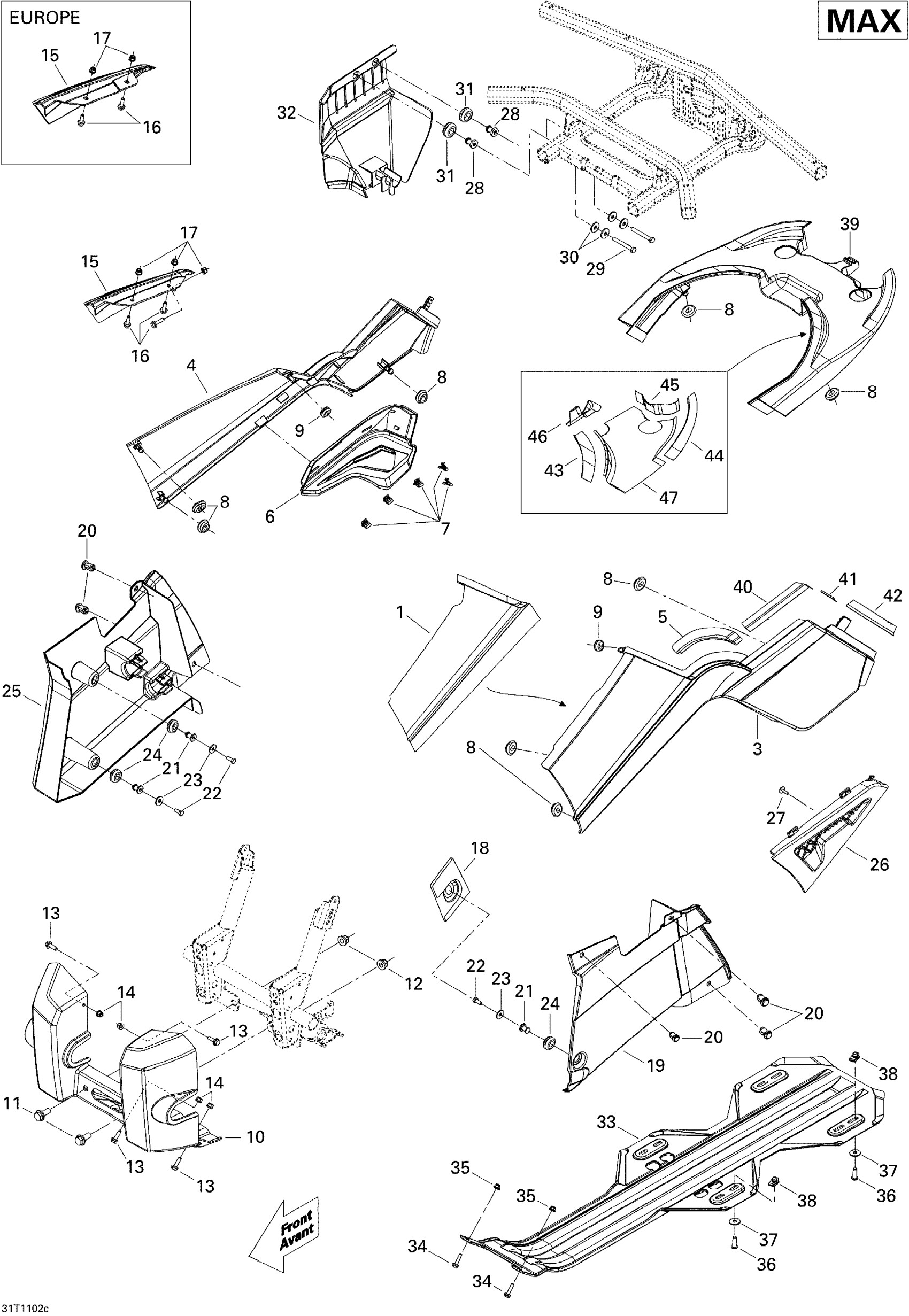

Can-Am Outlander Max 400 EFI, 2011 09- Body And Accessories 3 Diagram

#

Description
Price

1

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

PANEL_BODY LH B-160 - Call your local BRP dealership | Black

705003485

Unavailable

3

PANEL_BODY LH B-190 - Call your local BRP dealership

705003483

Unavailable

3

PANEL_BODY LH B-176 - Call your local BRP dealership

705003484

Unavailable

4

PANEL_BODY RH B-160 - Call your local BRP dealership | Black

705003506

Unavailable

4

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003678

Unavailable

4

RED RH SIDE PANEL - Call your local BRP dealership | Viper Red

705003679

Unavailable

5

Reflective Sheet

705002793

Unavailable

5

REFLECTIVE SHEET - Call your local BRP dealership

705003004

Unavailable

6

MUFFLER COVER - Call your local BRP dealership

705002664

Unavailable

7

Edge Clip

517302785

$0.88

8

Oval Washer

705005156

$4.97

9

Grommet

705003264

$4.09

10

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

10

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

11

Socket Screw M10 X 35

205003544

$1.69

12

Hex. Flange Elastic Nut M10

233201414

$1.58

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

15

LEVER INDICATOR - Call your local BRP dealership | Europe

705003028

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Reflective Sheet

705003830

$12.99

19

LH Inner Fender

705000652

$39.99

20

Tuflok Plastic Rivet

293150230

$1.47

21

Knob

517303439

$4.55

22

Torx Screw K50 X 16

250000720

$1.69

23

Washer | DS 650 X

391301600

$0.48

24

Grommet

709000582

$4.69

25

INNER FENDER - Call your local BRP dealership

705002640

$36.99

26

CONSOLE CAP - Call your local BRP dealership

705002493

Unavailable

27

Screw M4 X 16

250000725

$3.49

28

Knob

517303439

$4.55

29

Hex. Screw K50 X 45

241154540

$2.11

30

Washer | DS 650 X

391301600

$0.48

31

Grommet

709000582

$4.69

32

Thread Cover

705004036

$20.99

33

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

34

Hex. Flange Screw M6 X 25

207662544

$0.64

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

37

Flat Washer 8 mm

234082410

$1.47

38

Panel Nut M8

250100111

$4.29

39

YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow

705002952

Unavailable

39

RED STORAGE TRAY - Call your local BRP dealership | Viper Red

705002954

Unavailable

39

STORAGE TRAY, BLACK - Call your local BRP dealership

705003481

Unavailable

40

REFLECTIVE SHEET - Call your local BRP dealership

705003005

Unavailable

41

Reflective Sheet

705003033

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

705003034

Unavailable

43

REFLECTIVE SHEET - Call your local BRP dealership

705003082

Unavailable

44

REFLECTIVE SHEET - Call your local BRP dealership

705003083

Unavailable

45

REFLECTIVE SHEET - Call your local BRP dealership

705003084

Unavailable

46

REFLECTIVE SHEET - Call your local BRP dealership

705003085

Unavailable

47

REFLECTIVE SHEET - Call your local BRP dealership

705003086

Unavailable
