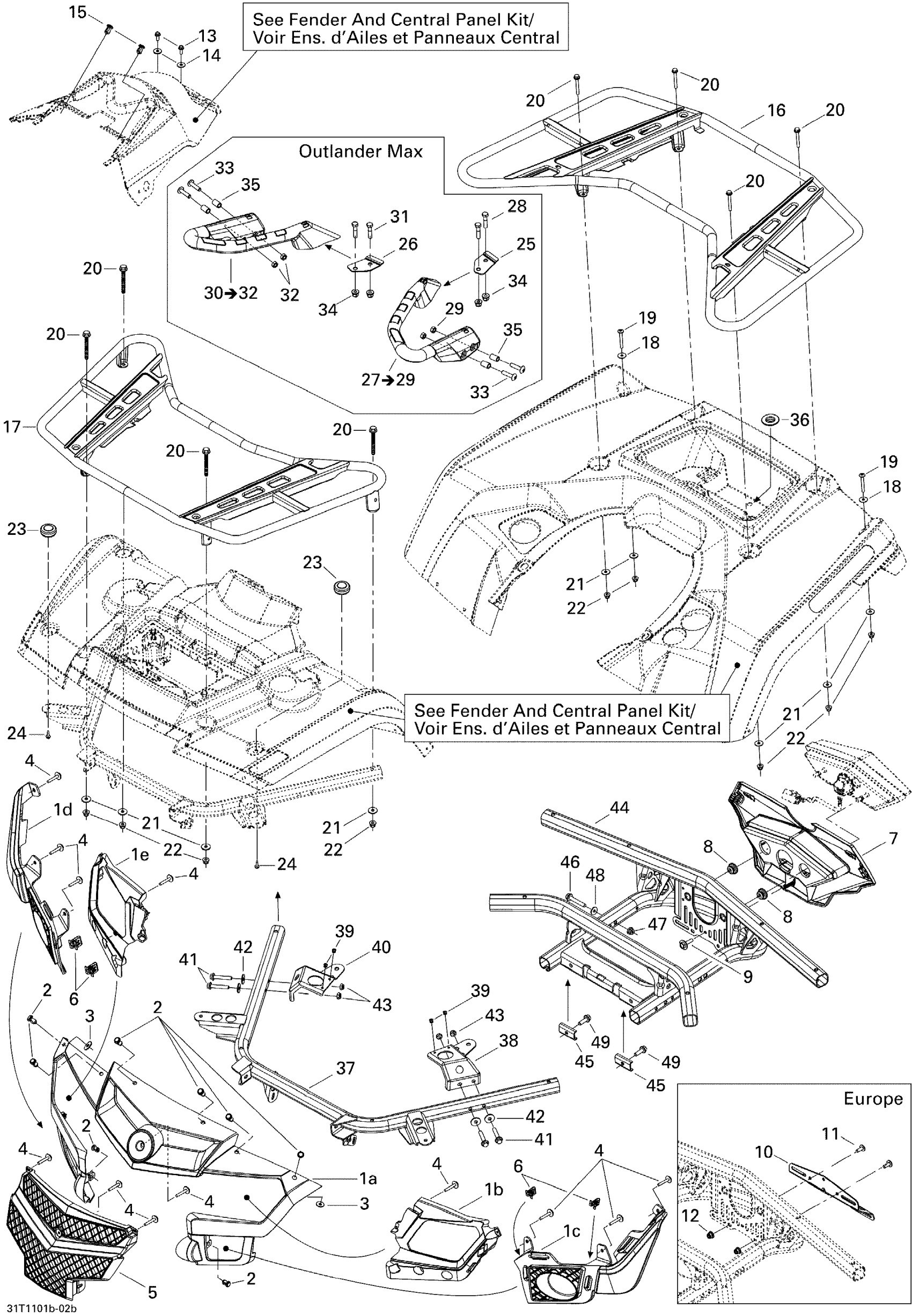

Can-Am Outlander Max 400 EFI, 2011 09- Body And Accessories 2 Diagram

#

Description
Price

1a

BLACK FRONT FASCIA - Call your local BRP dealership | Black

705003077

Unavailable

1a

YELLOW FRONT FASCIA - Call your local BRP dealership | Yellow

705002778

Unavailable

1a

RED FRONT FASCIA - Call your local BRP dealership | Red

705003080

Unavailable

1b

LH Head Lamp Support

705002825

$27.99

1c

LH LOWER FRONT FACIA - Call your local BRP dealership

705002780

Unavailable

1c

LH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002889

Unavailable

1d

RH LOWER FRONT FACIA - Call your local BRP dealership

705002781

Unavailable

1d

RH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002890

Unavailable

1e

RH Head Lamp Support

705002826

$27.99

2

Tuflok Plastic Rivet

293150230

$1.47

3

Washer

506151252

$3.17

4

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

5

UPPER GRILL - Call your local BRP dealership

705002779

Unavailable

6

Edge Clip

517302785

$0.88

7

Rear Facia

705003840

$45.99

8

Stopper Rubber

705014429

$5.95

9

Screw M4 X 16

250000725

$3.49

10

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

11

Torx Screw M6 X 16

250000755

$0.87

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M6 X 16

210261650

$1.67

14

Flat Washer

250200082

$0.42

15

Tuflok Plastic Rivet

293150230

$1.47

16

Rear Luggage Rack

705002617

$275.49

17

Front Luggage Rack

705002616

$275.49

18

Flat Washer

250200040

$1.90

19

Torx Truss Screw M6 X 50

250000749

$3.17

20

Hex. Screw M6 X 55

207065544

$2.11

21

Flat Washer

224061201

$1.37

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

RUBBER CAP - Call your local BRP dealership

705003667

Unavailable

24

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

25

LH FIXATION PLATE - Call your local BRP dealership

705002762

Unavailable

26

RH FIXATION PLATE - Call your local BRP dealership

705002760

Unavailable

27

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

Unavailable

28

Hex. Screw M8 X 35

207083544

$1.15

29

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

30

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

Unavailable

31

Hex. Screw M8 X 35

207083544

$1.15

32

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

33

TORX SCREW M8 X 35 - Call your local BRP dealership | Max

250000441

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Bushing

705002153

$11.99

36

CAP - Call your local BRP dealership

414859400

Unavailable

37

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

38

LH ANCHOR PLATE - Call your local BRP dealership

705002995

Unavailable

39

Pop Rivet 3/16"

390402300

$0.75

40

RH Anchor Plate

705002997

$18.49

41

Hex. Flange Screw M8 X 45

207684544

$3.80

42

Flat Washer 8 mm

234082410

$1.47

43

Hex. Elastic Stop Nut M8

232581414

$0.56

44

Rear Support

705003656

$275.49

45

U Reinforcement

705003647

$8.19

46

Hex. Flange Screw M8 X 50

207685044

$1.69

47

Hex. Flange Elastic Nut M8

233281414

$1.47

48

Flat Washer 8 mm

234082410

$1.47

49

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69
