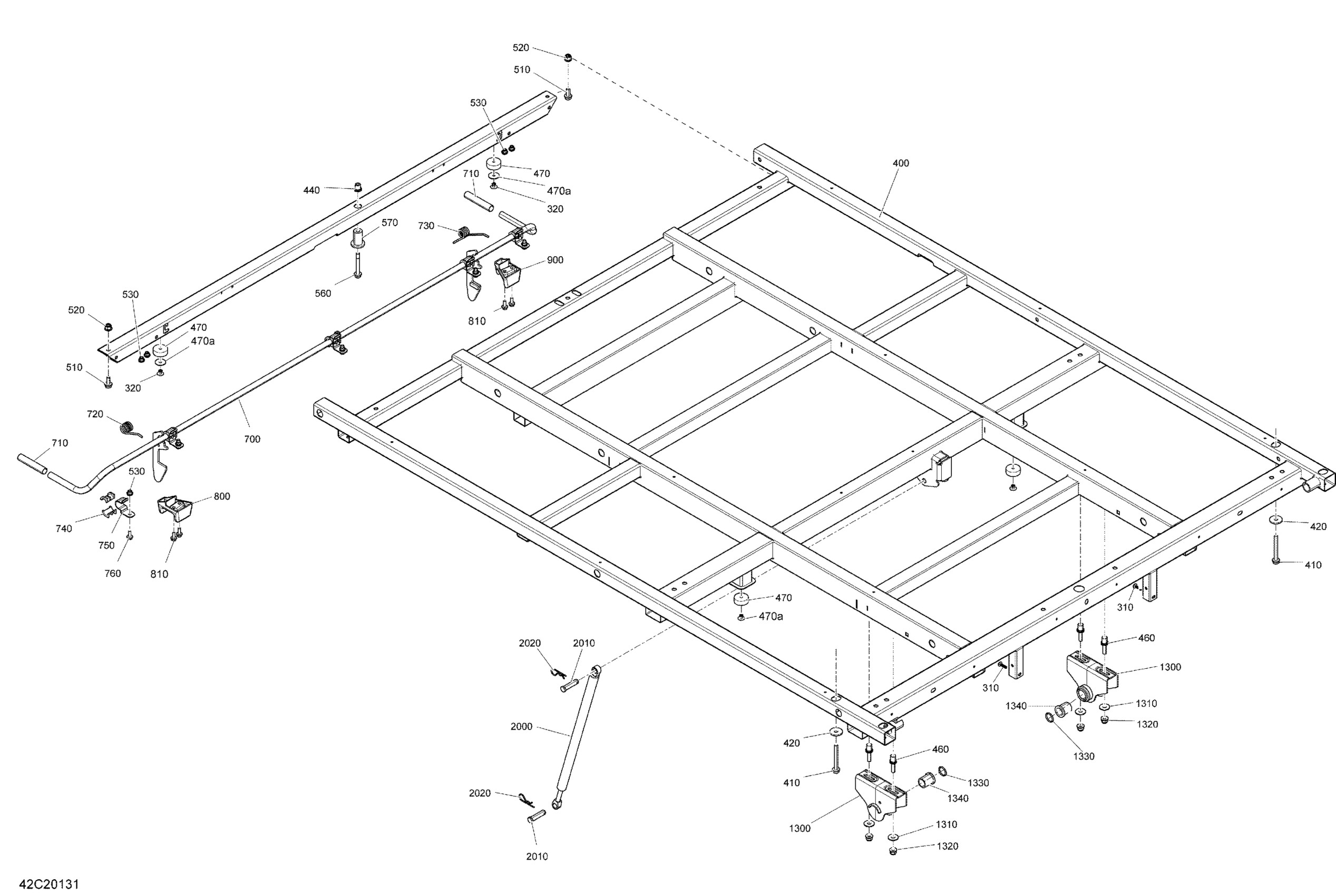

Can-Am 011 - Defender PRO HD10 - North America, 2020 09- Rear Cargo Box - Frame Diagram

Description

Price

310

Torx Screw Truss Head K50X20 T20

250000760

$2.11

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

400

Frame_Open Carrier Ecoat

708303651

$349.99

410

Hex. Flange Screw M8 X 70

207587044

$1.03

420

Flat Washer M8

250200187

$2.11

440

Insert Half Hex Body M8 x 1.25

293450307

$2.69

460

Protruding Stud M8 X 28

250300645

$3.99

470

Rubber Stopper | Includes 830 to 830a

708303134

$2.39

470a

Washer

224060251

$0.58

510

Hex. Flange Screw M8 X 20

207682046

$1.90

520

Hex. Elastic Flange Nut M8

233281416

$1.48

530

Insert Half Hex Body M6 x 1.0

250100199

$3.19

560

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

570

Spacer

705207754

$14.49

700

Latch Lever

708303088

$85.99

710

Cap Latch Lever

708300358

$6.59

720

LH Torsion Spring

708303190

$4.79

730

RH Torsion Spring

708303191

$4.79

740

Half Ring

705500033

$8.29

750

Clamp Retainer

708301479

$3.98

760

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

800

LH Stopper

708303301

$3.59

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

900

RH Stopper

708303302

$3.59

1300

Female Hinge

708303342

$36.99

1310

Flat Washer 8 mm

234082410

$1.47

1320

Hex. Flange Elastic Nut M8

233281414

$1.47

1330

O-Ring

293300131

$5.29

1340

Hinge Bushing

708303361

$11.99

2000

Shock Absorber

708302889

$142.99

2010

Clevis Pin

250400075

$5.99

2020

Hair Pin

414575600

$1.89
