Description

Price

100

Cargo Box Inside Ass'y

715007479

$1,959.99

100a

Cargo Box Inside Ass'y

715007479

$1,959.99

100c

LH Cargo Panel

708303499

$579.99

100d

LH Cargo Panel

708303499

$579.99

100e

Hex. Screw Pt K60 X 25

250000980

$2.11

100f

Flat Washer M6.6 X 22

250200162

$2.32

100g

Rubber Bumper

293830005

$8.09

100h

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100j

Bushing

293900101

$7.87

100m

LH Panel Support | Includes 100b9 to 100b9a7

708304595

$119.99

100v

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100x

RH Cargo Panel

708303500

$579.99

100y

RH Cargo Panel

708303500

$579.99

100af

RH Panel Support | Includes 100c9 to 100c9a7

708304596

$119.99

100as

Tailgate Ass'y

708303501

$429.99

100at

Tailgate Ass'y

708303501

$429.99

100aw

LH Tailgate Support

708303138

$28.99

100ba

Hex. Flange Screw M6 X 25

207662554

$1.48

100bb

Hex. Flange Screw M6 X 35

207663554

$2.11

100bc

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100bf

RH Tailgate Support

708303141

$28.99

110

Pop Rivet 3/16”

293150108

$1.19

120

Torx Screw M6 X 20

250000722

$1.68

130

Flat Washer M6.6 X 22

250200162

$2.32

140

LH Rear Reflector

708303264

$13.49

150

RH Rear Reflector

708303265

$13.49

200

Deflector

708303216

$55.99

210

Pop Rivet 3/16”

293150108

$1.19

230

Washer

517124300

$0.19

300

Taillight Support

708303496

$104.99

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

Red Reflector

705011221

$14.49

340

Elastic Stop Nut M5

232551414

$0.87

410

Hex. Flange Screw M8 X 70

207587044

$1.03

420

Flat Washer M8

250200187

$2.11

530

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1000

Retaining Plate

708301480

$9.69

1010

Hex. Flange Screw M6 X 20

207662054

$1.01

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

1120

D-Ring

708302990

$4.29

1130

Tie-Down Ring Spring

708302991

$2.39

1140

Tie-Down Ring Bracket

708302992

$2.39

1200a

Latch Ass'y

511001014

$38.99

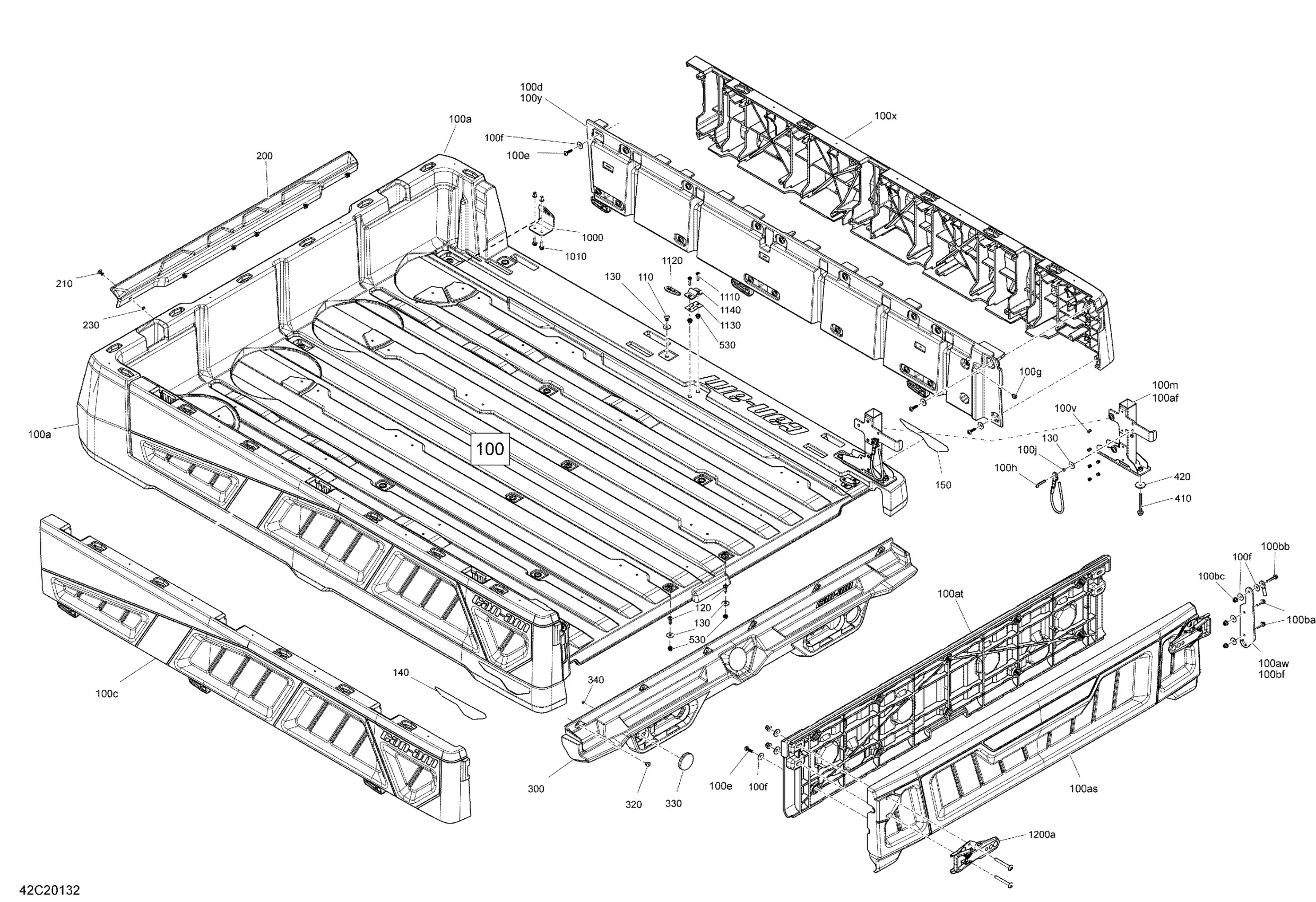

Can-Am 011 - Defender PRO HD10 - North America, 2020 09- Rear Cargo Box Diagram

Cargo Box Inside Ass'y

Cargo Box Inside Ass'y

LH Cargo Panel

LH Cargo Panel

Hex. Screw Pt K60 X 25

Flat Washer M6.6 X 22

Rubber Bumper

Torx Truss Hex. Screw M6X35, Nylon Patch

Bushing

LH Panel Support | Includes 100b9 to 100b9a7

Pop Rivet 3/16" | DS 650 X

RH Cargo Panel

RH Cargo Panel

RH Panel Support | Includes 100c9 to 100c9a7

Tailgate Ass'y

Tailgate Ass'y

LH Tailgate Support

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

RH Tailgate Support

Pop Rivet 3/16”

Torx Screw M6 X 20

Flat Washer M6.6 X 22

LH Rear Reflector

RH Rear Reflector

Deflector

Pop Rivet 3/16”

Washer

Taillight Support

Pop Rivet 3/16" | DS 650 X

Red Reflector

Elastic Stop Nut M5

Hex. Flange Screw M8 X 70

Flat Washer M8

Insert Half Hex Body M6 x 1.0

Retaining Plate

Hex. Flange Screw M6 X 20

Torx Flat Head Screw T-30 S.Grip M6X25

D-Ring

Tie-Down Ring Spring

Tie-Down Ring Bracket

Latch Ass'y
