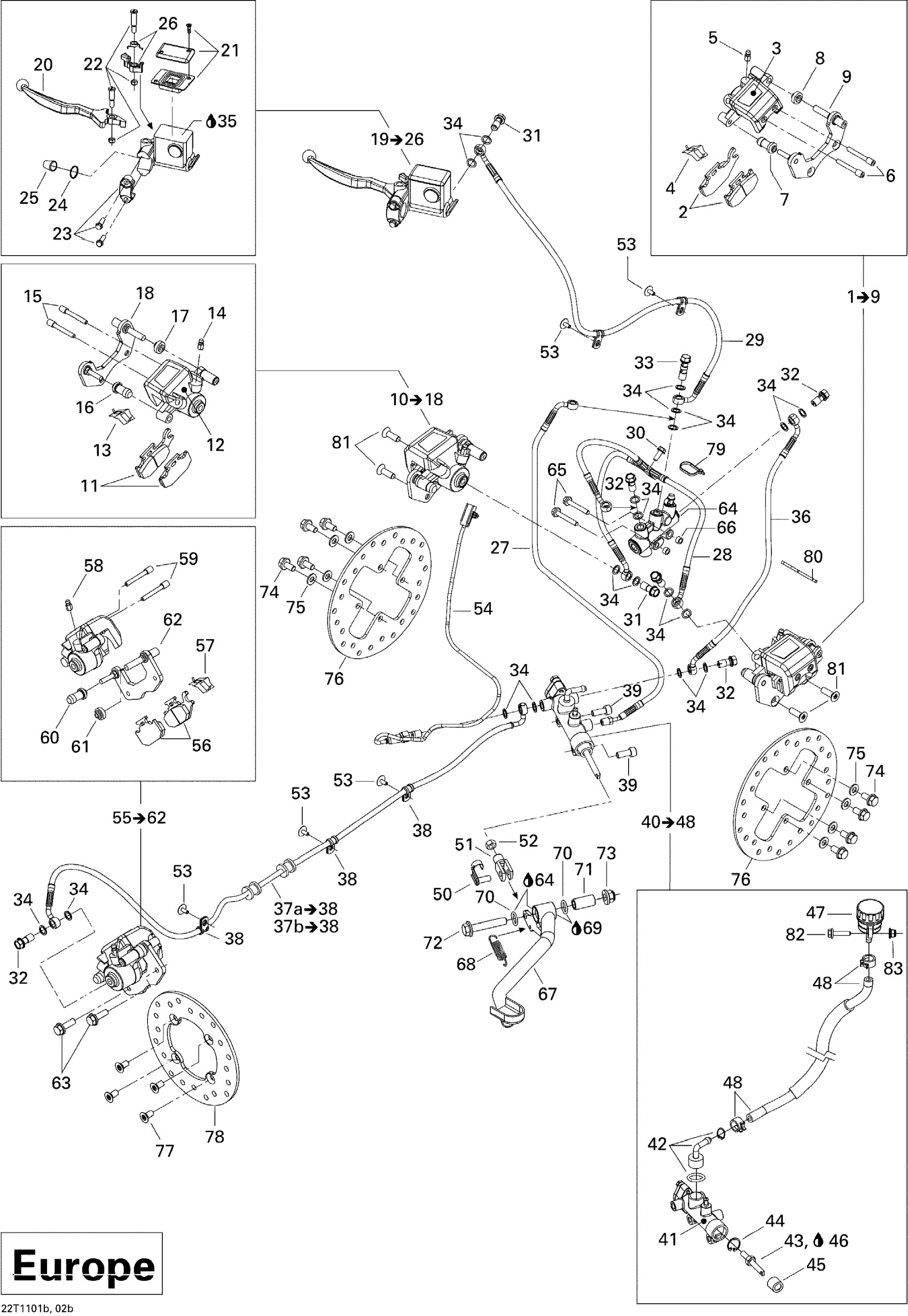

Can-Am Outlander Max 400 EFI, 2011 06- Hydraulic Brakes Europe Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600728

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600729

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

20

Lever Arm

705600243

$54.99

21

Cap Set

705600084

$24.99

22

Brake Lever Bolt Kit

705600246

$14.81

23

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

24

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

25

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

26

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

27

LINE BRAKE - Call your local BRP dealership

705600756

Unavailable

28

LINE BRAKE - Call your local BRP dealership

705600757

Unavailable

29

LINE BRAKE - Call your local BRP dealership

705600758

Unavailable

30

Hexagonal Head Screw

210262050

$2.11

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

32

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

33

Banjo Bolt

705600958

$6.35

34

Copper Washer

705601628

$4.44

35

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

36

LINE BRAKE - Call your local BRP dealership

705600759

Unavailable

37a

Rear Hose | Includes 34 to 35

705600929

$90.99

37b

REAR HOSE - Call your local BRP dealership | Includes 34 to 35

705600581

Unavailable

38

Clamp

293650256

$5.49

39

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

40

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership | Includes40 to 48

705600743

Unavailable

41

Piston Set

705600255

$64.49

42

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Circlip

705600068

Unavailable

45

Compression Boot

705600090

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

48

OIL HOUSING HOSE - Call your local BRP dealership

705600754

Unavailable

50

Pin Kit

219702305

$34.99

51

Yoke

705600100

Unavailable

52

Hex. Nut M8

232081414

$0.72

53

Pop Rivet 3/16"

390406500

$0.88

54

Brake Switch

705600798

$51.99

55

REAR CALIPER - Call your local BRP dealership | Includes 55 to 62

705600791

Unavailable

56

LH Brake Pad Kit

705600398

$51.99

57

Spring

705600079

$15.81

58

Bleeding Screw

705600080

$16.87

59

Pin Set (2)

705600081

$20.49

60

Compression Boot

705600082

$10.06

61

Compression Boot

705600083

$10.06

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

64

SPLITTER - Call your local BRP dealership

705600800

Unavailable

65

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

66

Bushing | DS 650 X

293900104

$5.50

67

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

68

Brake Pedal Spring

705600792

$9.10

69

Synthetic Grease, 400 G

293550010

Unavailable

70

O-Ring

293300144

$3.82

71

Inner Spacer

705600815

$11.60

72

Hex. Flange Screw M10 X 55

207605544

$3.38

73

Hex. Flange Elastic Nut M10

233201414

$1.58

74

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

75

Conical Spring Washer M8

234281474

$1.48

76

Disk Brake

705600603

$50.99

77

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

78

Disk Brake

705600604

$50.99

79

Tie-Rap 180 mm

414115200

$0.11

80

Tie-Rap 180 mm

414115200

$0.11

81

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

82

Hex. Flange Screw M6 X 25

207662544

$0.64

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
