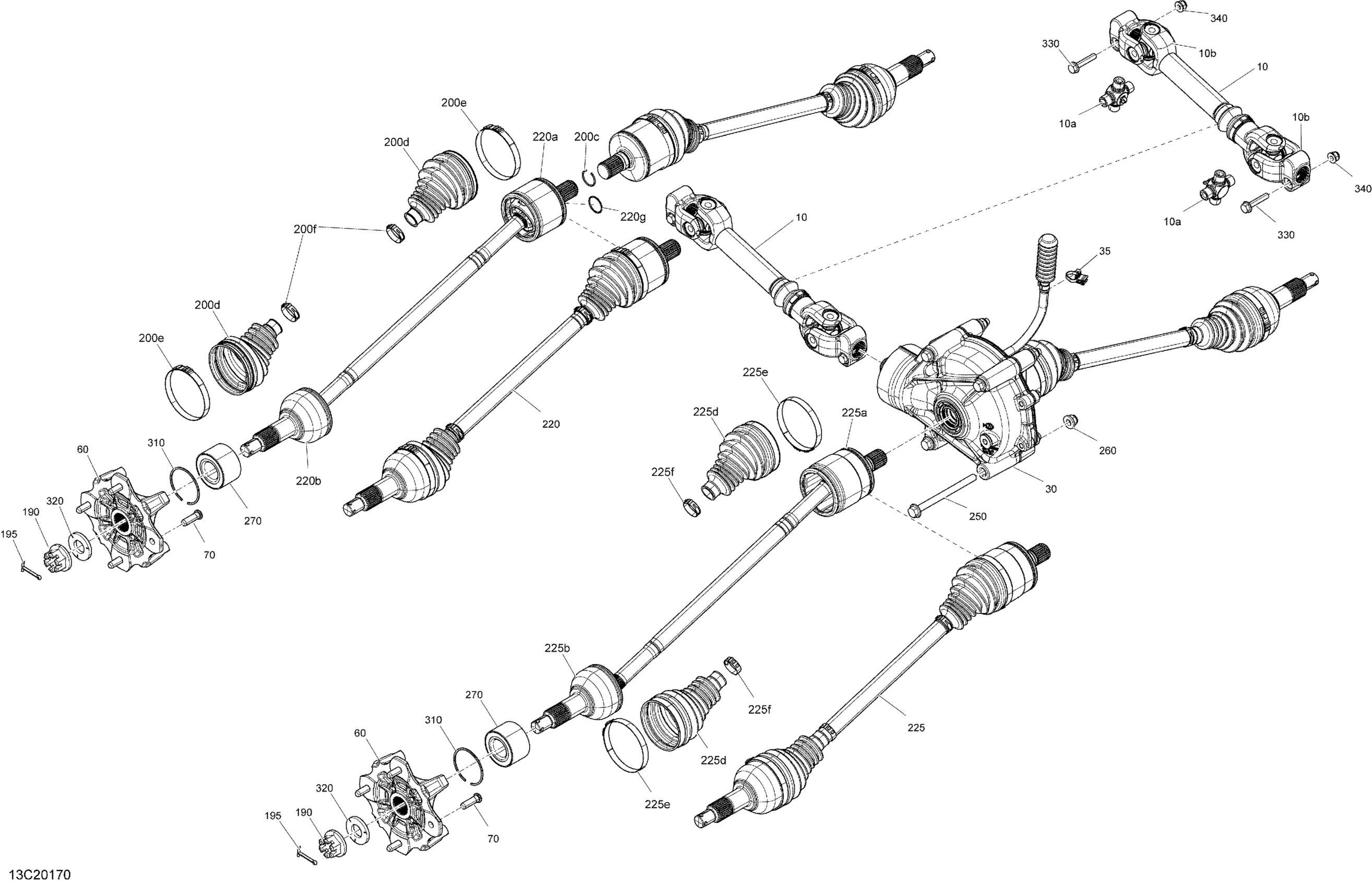

Can-Am 010 - Defender 6X6 HD10 - North America, 2020 08- Rear Drive - Common Parts Diagram

Drive Axle Ass'y | Includes 10 to 10b

705502784

$264.99

U-joint (universal joint) Kit

715900648

$78.49

Yoke

715900645

$24.99

Final Drive Unit | Includes 30 to 30s

705502827

$1,409.99

Clip Tie-Rap | Package North Edition

710005037

$9.17

Wheel Hub

705502338

$116.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Castle Nut M20

250100193

$8.05

Cotter Pin

250400084

$2.29

CV Joint | Includes 230 to 230f

705502831

$243.99

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

Plunging Joint

715900444

$275.49

Circlip

705501781

$6.50

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

O-Ring

715900579

$2.51

CV Joint | Includes 225 to 225f

705502850

$243.99

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

Plunging Joint

715900433

$259.49

Boot Kit

705501864

$42.49

Oetiker Clamp, 82.1 mm

715900241

$10.33

Oetiker Clamp, 27.3 mm

715900242

$10.33

Hex. Flange Screw, M10 X 130

230603046

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M20

250200170

$14.74

Hex. Flange Screw M8 X 42

250001050

$1.16

Hex. Elastic Flange Nut M8

233281416

$1.48
