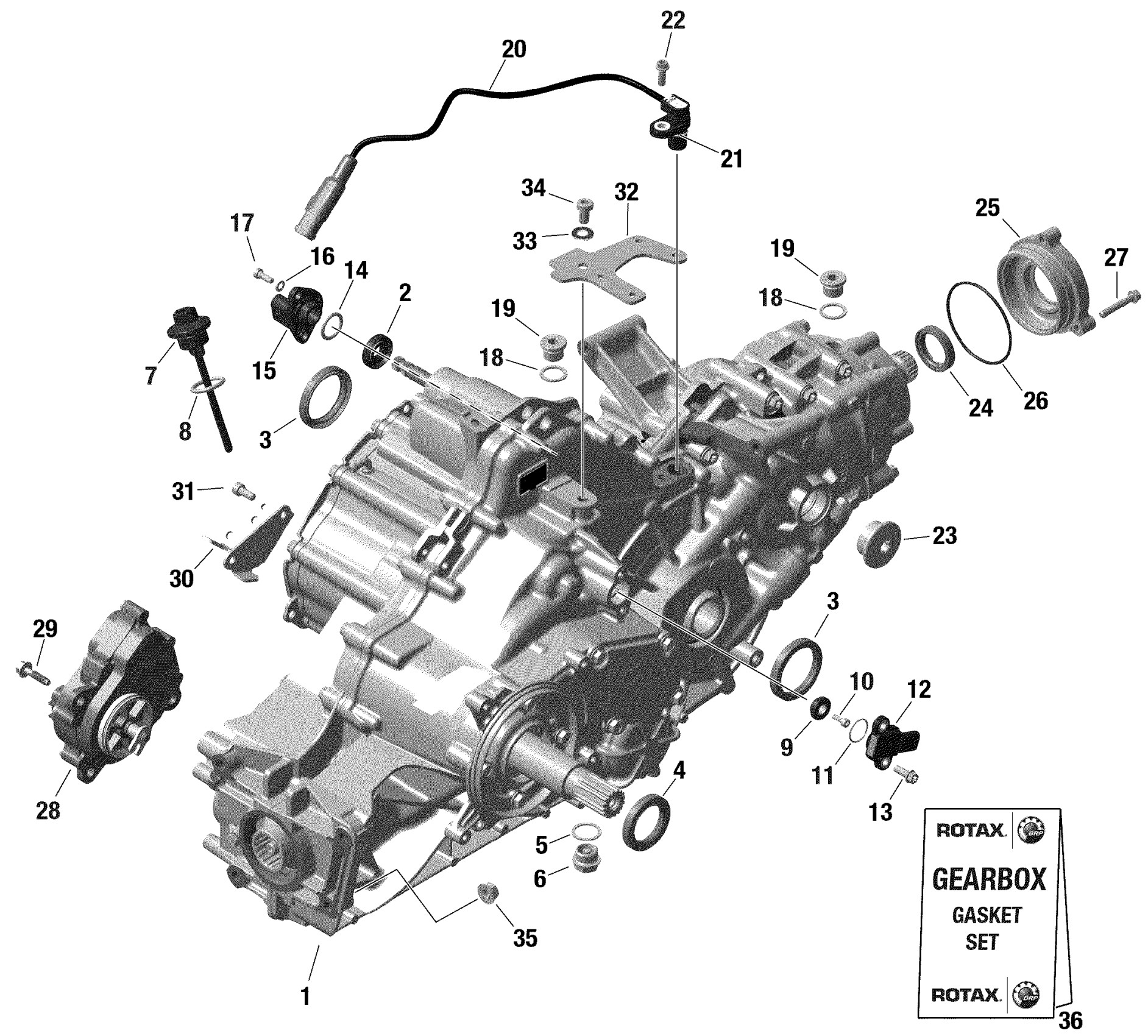

Can-Am 010 - Defender 6X6 HD10 - North America, 2020 05- Gear Box And Components 420686779 Diagram

#

Description
Price

1

Gear Box

420686888

$3,299.99

2

Oil Seal

420250452

$17.59

3

Oil Seal | Included in gasket set gearbox

420230137

$23.49

4

Oil Seal

420950089

$19.49

5

Crush Washer

420552280

$3.70

6

Drain Plug M18 X 1.5

420840278

$23.99

7

Oil Dipstick

420256804

$4.44

8

O-Ring

420631640

$2.11

9

Magnet

420256000

$17.99

10

Allen Screw M4 X12

420440292

$1.01

11

O-Ring

420230405

$4.55

12

Angle Of Rotation Sensor

420265122

$82.99

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

O-Ring | Included in gasket set gearbox

420450450

$2.19

15

Cover

420427563

$9.69

16

Washer 5.3

420927574

$1.90

17

Allen Screw M5 X 14

420240150

$2.19

18

O-Ring

420430622

$4.44

19

Plug Screw M16 X 1.5

420240234

$14.28

20

Camshft Position Sensor Ass'y

420265727

$109.99

21

O-Ring

420230451

$12.11

22

Torx Flange Screw M6 X 16

420440162

$3.17

23

Plug Screw M30 X 1.5

420641171

$20.99

24

Oil Seal

420230425

$17.39

25

Bearing Cover

420280613

$126.99

26

O-Ring

420950865

$0.92

27

FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership

420440270

Unavailable

28

Actuator Ass'y 4 pins

715900613

$319.99

29

Collar Screw M6 x 25

420441951

$2.19

30

Support

420851548

$20.99

31

Allen Screw M6X14

420840394

$1.58

32

Support Plate

420651046

$13.24

33

Flat Washer 8.4 mm

420250315

$1.15

34

Torx Flange Screw M8 X 16

420440854

$4.44

35

Hex. Nut M8

420842619

$2.35

36

Gearbox Gasket Set

420686603

$99.49
