Description

Price

1a

DRIVE ASS'Y - Call your local BRP dealership | Includes 1 to 24

420684221

Unavailable

1b

BEVEL GEAR ASSEMBLY - Call your local BRP dealership

420635556

Unavailable

2a

Gear Wheel Set | 400HO, Includes 2a to 7

420281285

$499.99

2b

Needle Bearing

420632070

$25.99

3

Retaining Ring

420245850

$5.31

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8a

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

420620441

Unavailable

8b

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Needle Bearing

420632070

$25.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Circlip

420445302

$4.12

13

Not Available As Spare Part - Friction Washer

Unavailable

14

O-Ring

420630040

$4.44

15

Distance Ring

420247110

Unavailable

16a

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

420635673

Unavailable

16b

Needle Pin

420229600

$37.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Needle Cage

420432034

$35.99

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Washer Thrust Set

420281300

$95.49

22

Ball Bearing 6405

420632280

$98.49

23

O-Ring

420430373

$3.17

24

Oil Seal

420650682

$19.49

25

Ball Bearing

420932822

$30.49

26

Thrust Washer Set, MAG Side

420281306

$61.49

27

Axial Needle Bearing

420632300

$18.49

28

Thrust Washer Set, CVT Side

420281302

$86.99

29

Pin

420229540

$20.99

30

Shift Fork

420257332

$124.99

31

Shift Fork

420257342

$104.99

32

Shift Drum Ass'y

420257325

$124.99

33

ISOLATING WASHER - Call your local BRP dealership

420627780

Unavailable

34

Index Spring

420238290

$11.12

35

BUSHING - Call your local BRP dealership

420227710

Unavailable

36

Index Lever Ass'y

420248328

Unavailable

37

Torx Screw M6 X 16

420241529

$2.11

38

Shift Shaft Ass'y

420620136

$98.99

39

Parking Lock Lever

420257316

$58.99

B

Loctite 243, 10 ml

293800060

$21.49

E

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Part - Friction Washer

Unavailable

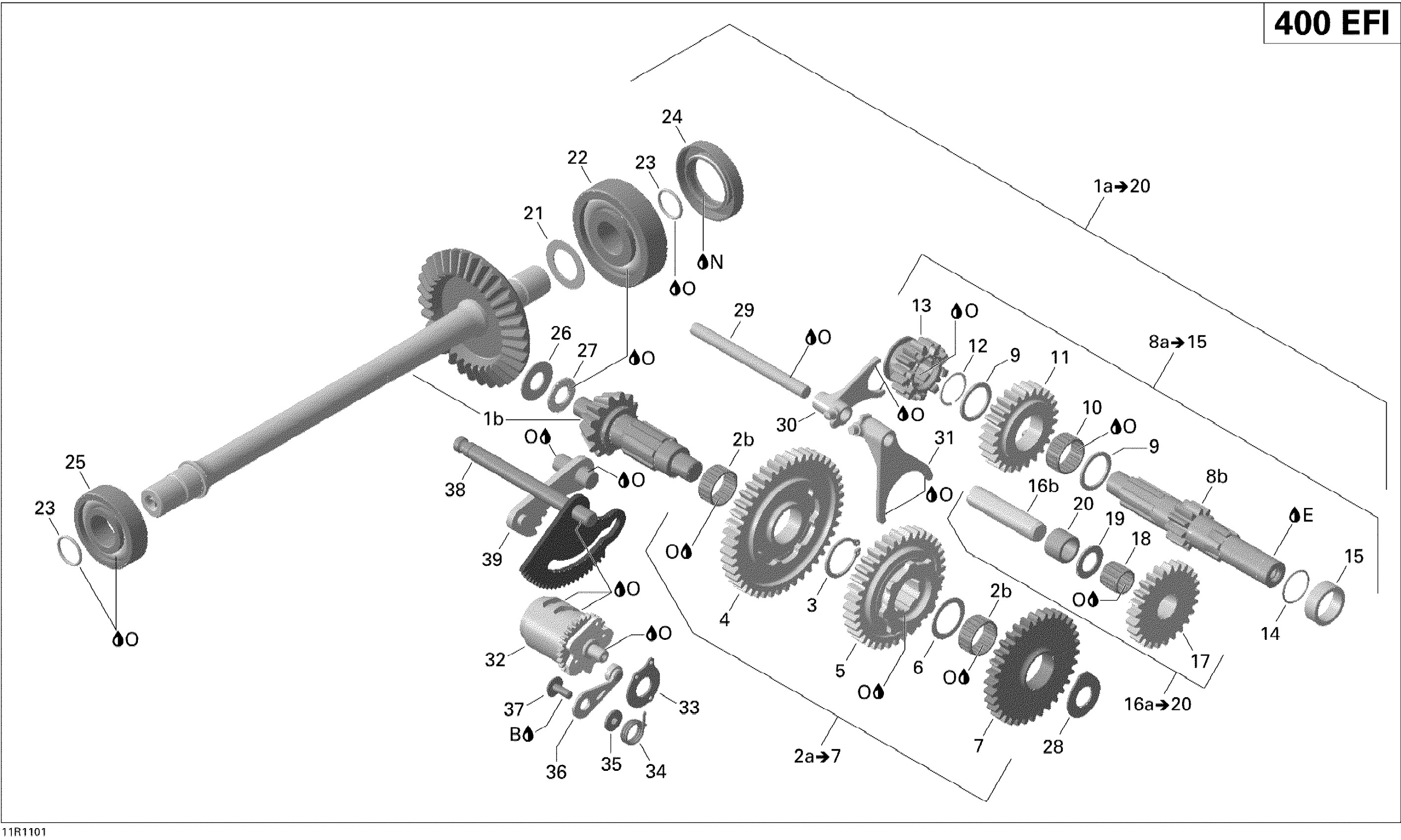

Can-Am Outlander Max 400 EFI, 2011 05- Gear Shift Diagram

DRIVE ASS'Y - Call your local BRP dealership | Includes 1 to 24

BEVEL GEAR ASSEMBLY - Call your local BRP dealership

Gear Wheel Set | 400HO, Includes 2a to 7

Needle Bearing

Retaining Ring

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Needle Bearing

Not Available As Spare Part - Friction Washer

Circlip

Not Available As Spare Part - Friction Washer

O-Ring

Distance Ring

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

Needle Pin

Not Available As Spare Part - Friction Washer

Needle Cage

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Washer Thrust Set

Ball Bearing 6405

O-Ring

Oil Seal

Ball Bearing

Thrust Washer Set, MAG Side

Axial Needle Bearing

Thrust Washer Set, CVT Side

Pin

Shift Fork

Shift Fork

Shift Drum Ass'y

ISOLATING WASHER - Call your local BRP dealership

Index Spring

BUSHING - Call your local BRP dealership

Index Lever Ass'y

Torx Screw M6 X 16

Shift Shaft Ass'y

Parking Lock Lever

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Grease, Super Lube

Not Available As Spare Part - Friction Washer
