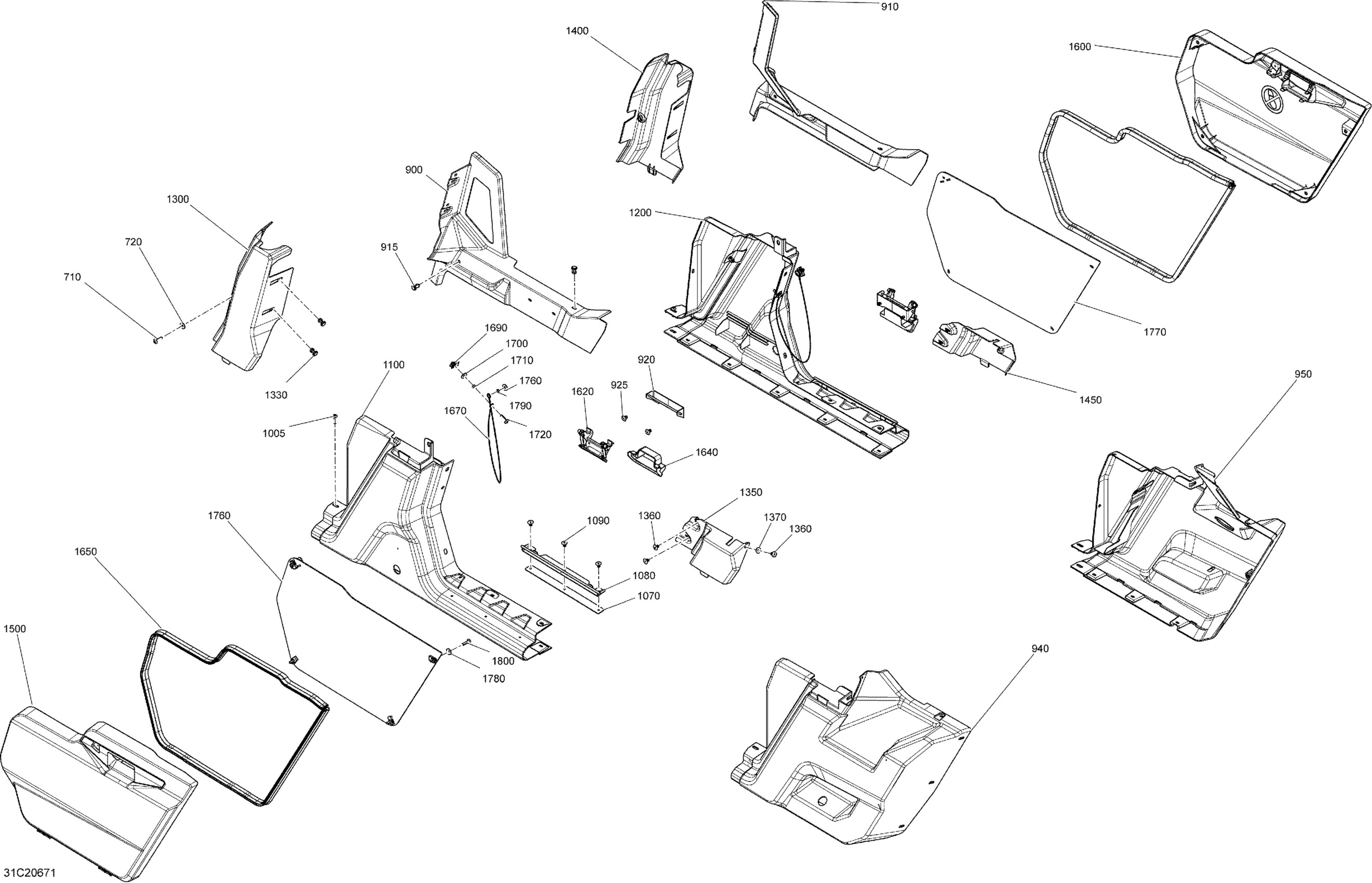

Can-Am 009 - Defender MAX HD10 - CAB - North America, 2020 09- Body - Doors Section Diagram

Description

Price

710

Torx Truss Screw M6 X 25

250000807

$2.11

720

Stainless Steel Flat Washer

234062670

$2.11

900

LH Central Body Panel

705014160

$109.99

910

RH Central Body Panel

705014161

$109.99

915

Tuflok Plastic Rivet

293150230

$1.47

920

Deep Black, Pivot Support

705018362

$14.49

925

Pop Rivet 3/16”

293150108

$1.19

940

LH Body Panel Kit

715007134

$119.99

950

Deep Black, RH Rear Body Panel

705014159

$109.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1070

Reinforcement Panel

705014755

$19.99

1080

Support Pivot

705014759

$27.99

1090

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705014750

$109.99

1200

RH Middle Side Panel

705014751

$109.99

1300

LH Rear Cage Cover Kit

715003564

$82.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1350

Deep Black, LH Rear Body Panel

705014748

$114.99

1360

Pop Rivet 3/16"

293150103

$0.55

1370

Washer M5

250200025

$0.74

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

1450

Deep Black, RH Rear Body Panel

705014749

$114.99

1500

Deep Black, LH Rear Door Panel

705014162

$42.99

1600

Deep Black, RH Rear Door Panel

705014163

$42.99

1620

Seat Latch

269003103

$8.99

1640

Latch Trim

705014752

$12.49

1650

Gasket

705014164

Unavailable

1670

Cable Retaining

705014763

$11.49

1690

Panel Nut M6 X 1.0

250100198

$2.11

1700

Stainless Steel Flat Washer

234062670

$2.11

1710

Bushing

708300737

$5.99

1720

Torx Truss Screw M6 X 25

250000807

$2.11

1750

Panel Nut M6 X 1.0

250100198

$2.11

1755

Panel Reinforcement

705014804

Unavailable

1760

Stainless Steel Flat Washer

234062670

$2.11

1770

Bushing

708300737

$5.99

1780

Torx Truss Screw M6 X 25

250000807

$2.11
