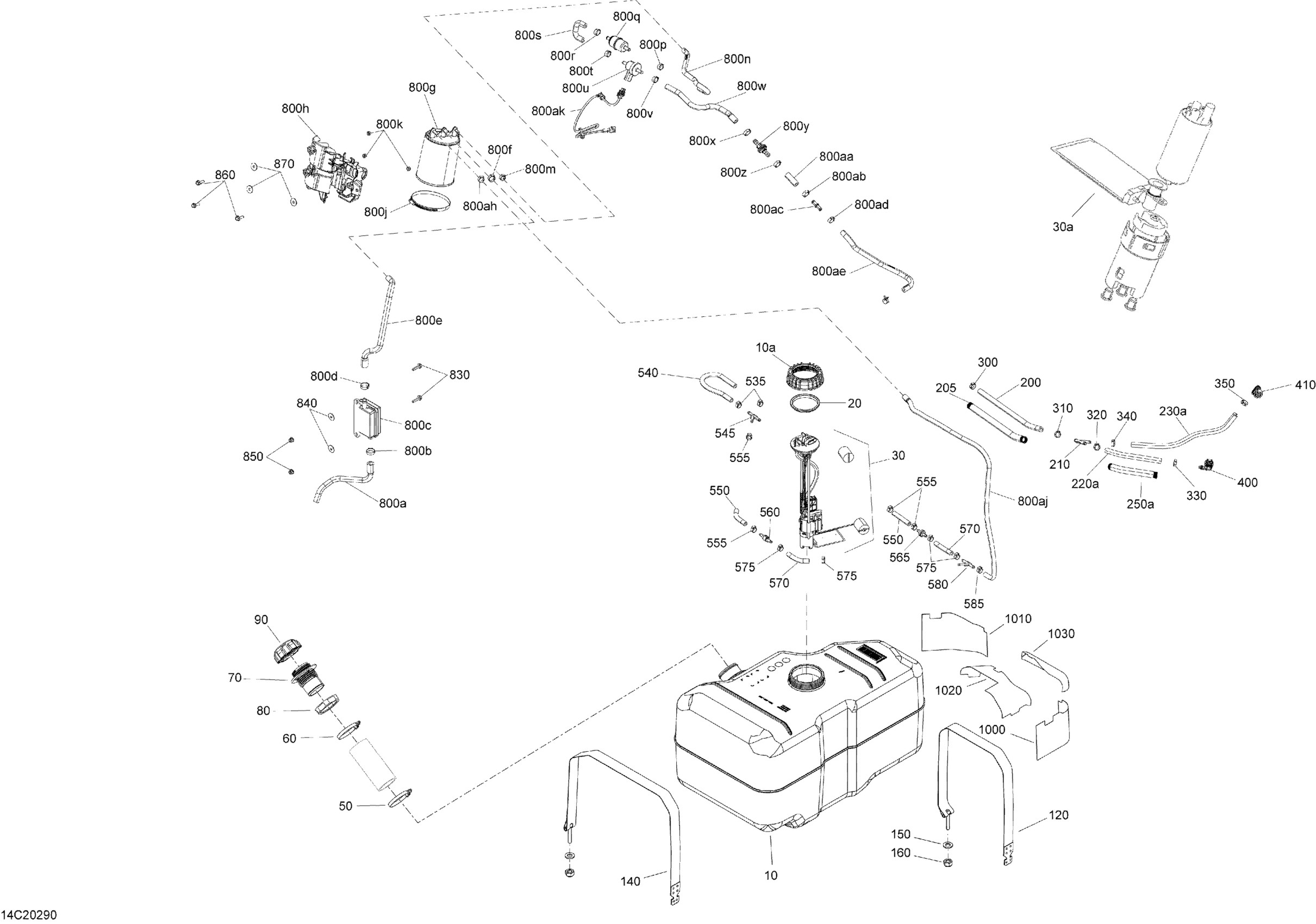

Can-Am 009 - Defender MAX HD10 - CAB - North America, 2020 02- Engine - Fuel - Evap Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$264.99

10a

Fuel Pump Module Nut

709000328

$13.75

20

Seal

709000208

$14.99

30

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

50

Norma Clamp

293650081

$12.18

60

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Filler Neck Nut, Fuel

211100012

$14.22

90

Fuel Cap

709000868

$32.99

120

Retaining Strap

709001291

$39.99

140

Retaining Strap

709001141

$43.99

150

Flat Washer 8 mm

234081410

$0.83

160

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Was 709000163 Fuel Line

219704440

$28.99

205

Tubing 16 Mm 1000Mm Long

219704408

$7.49

210

Y-Fitting, 5/16''

293710136

$6.49

220a

Was 709000163 Fuel Line

219704440

$28.99

230a

Was 709000163 Fuel Line

219704440

$28.99

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp, 15.3-706R

293650047

$3.29

310

Crimp Clamp, 15.3-706R

293650047

$3.29

320

Crimp Clamp, 15.3-706R

293650047

$3.29

330

Crimp Clamp, 15.3-706R

293650047

$3.29

340

Crimp Clamp, 15.3-706R

293650047

$3.29

350

Crimp Clamp, 15.3-706R

293650047

$3.29

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

535

Oetiker Clamp

293650042

$3.09

540

Hose 6.35Mm 5000Mm Long

219704611

$194.99

545

Y-Fitting

293710059

$9.69

550

Hose 6.35Mm 5000Mm Long

219704611

$194.99

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

570

Hose 6.35Mm 5000Mm Long

219704611

$194.99

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

800a

Formed Hose

709000965

Unavailable

800b

Oetiker Clamp

293650186

$3.99

800c

Air Filter

709000524

$45.99

800d

Oetiker Clamp

293650186

$3.99

800e

Formed Hose

709000850

$15.99

800f

Crimp Clamp

293650053

$3.09

800g

Vapor Canister | EVAP Models

709000806

$93.99

800h

Canister Support | EVAP Models

709000851

$5.29

800j

Tridon Clamp

293650054

$9.49

800k

Hex. Elastic Stop Nut M6

232561600

$1.15

800m

Oetiker Clamp

293650042

$3.09

800n

Formed Hose

709000853

$17.49

800p

Oetiker Clamp

293650046

$2.89

800q

Fuel Filter

513034047

$21.99

800r

Crimp Clamp, 15.3-706R

293650047

$3.29

800s

Formed Hose

709000857

$17.49

800t

Crimp Clamp, 15.3-706R

293650047

$3.29

800u

Bleed Valve

709000443

$73.99

800v

Crimp Clamp, 15.3-706R

293650047

$3.29

800w

Formed Hose

709000937

$16.99

800x

Crimp Clamp

293650053

$3.09

800y

Check Valve

275500941

$25.99

800z

Crimp Clamp

293650053

$3.09

800aa

Hose

709000882

$16.65

800ab

Crimp Clamp

293650053

$3.09

800ac

Flow Reducer

709000933

$4.12

800ad

Crimp Clamp, 15.3-706R

293650047

$3.29

800ae

Formed Hose

709001092

$33.99

800ah

Oetiker Clamp

293650046

$2.89

800aj

Hose 6.35Mm 5000Mm Long

219704611

$194.99

800ak

Purge Valve Cable

710005718

$20.99

830

Hex. Flange Screw M6 X 25

207662554

$1.48

840

Flat Washer M6.6 X 22

250200162

$2.32

850

Hex. Flange Elastic Nut M6

233261494

$1.58

860

Hex. Flange Screw M6 X 20

207662054

$1.01

870

Flat Washer M6.6 X 22

250200162

$2.32

1000

Heat Shield

707002670

$33.99

1010

Heat Shield

707002671

$33.99

1020

Heat Shield

707002673

$33.99

1030

Heat Shield

707002719

$33.99
