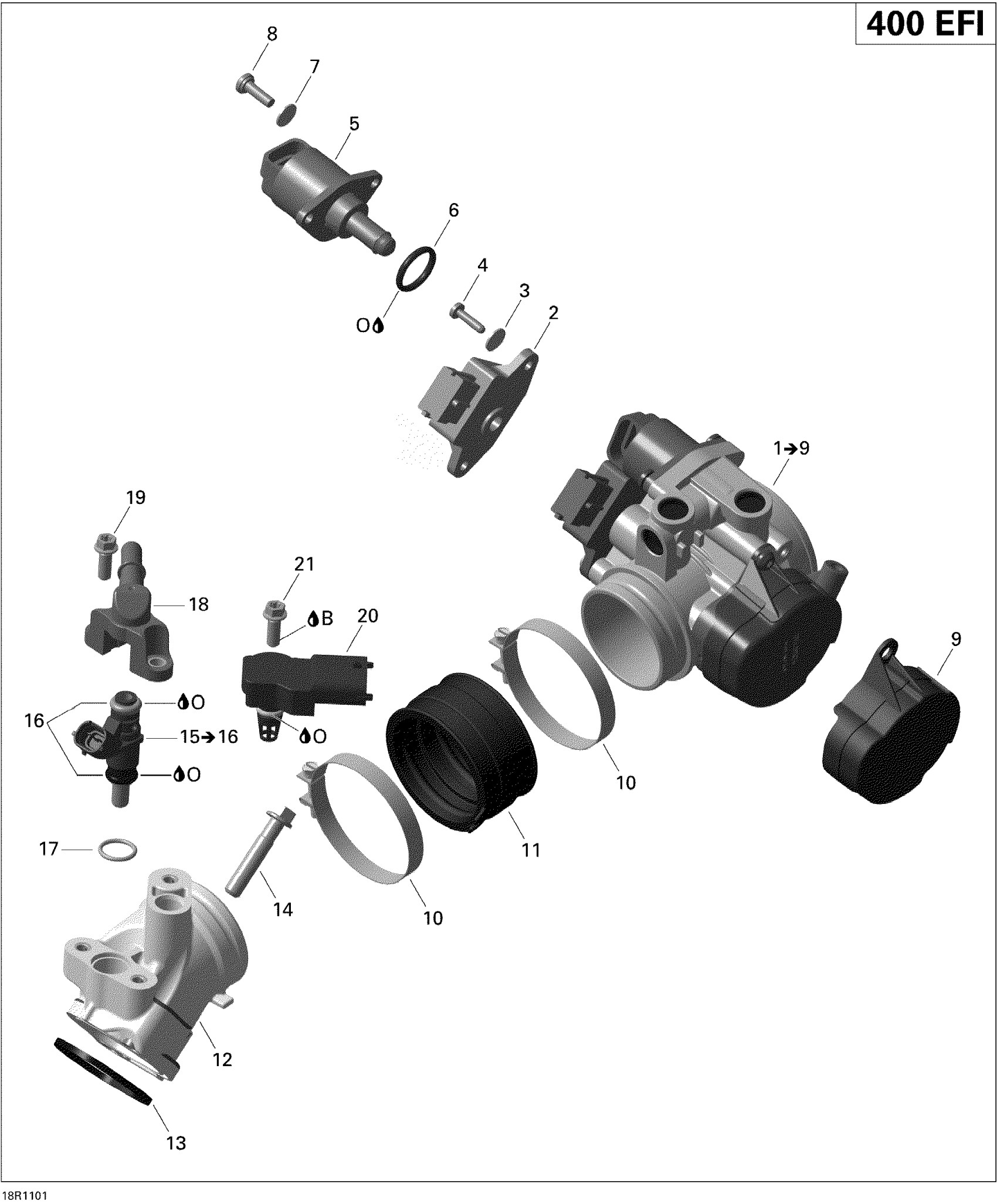

Can-Am Outlander Max 400 EFI, 2011 02- Air Intake Manifold And Throttle Body Diagram

Description

Price

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

Position Sensor

420866120

$98.99

Flat Washer 4 mm, Stainless

234042600

$1.15

Phillips Screw M4 X 16

208641660

$0.90

Idle Air Control Valve

420665941

$179.99

O-Ring

420631780

$4.44

Snap Ring

420845710

$4.12

Binding Head Screw M5 X 16

420440911

$14.28

Cover Kit

420281540

$20.99

Clamp

420251480

$14.28

Intake Adaptor

420267480

$15.89

ELBOW INTAKE ADAPTOR - Call your local BRP dealership

420267525

Unavailable

Gasket

420630642

$5.39

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

Injection Valve

420874402

$185.49

O-Ring

420631220

$14.28

O-Ring

420631296

$0.76

Fuel Rail

420874901

$24.49

Torx Flange Screw M6 X 16

420641048

$2.96

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420641048

$2.96

Loctite 243, 10 ml

293800060

$21.49

Not Available As Spare Part - Friction Washer

Unavailable
