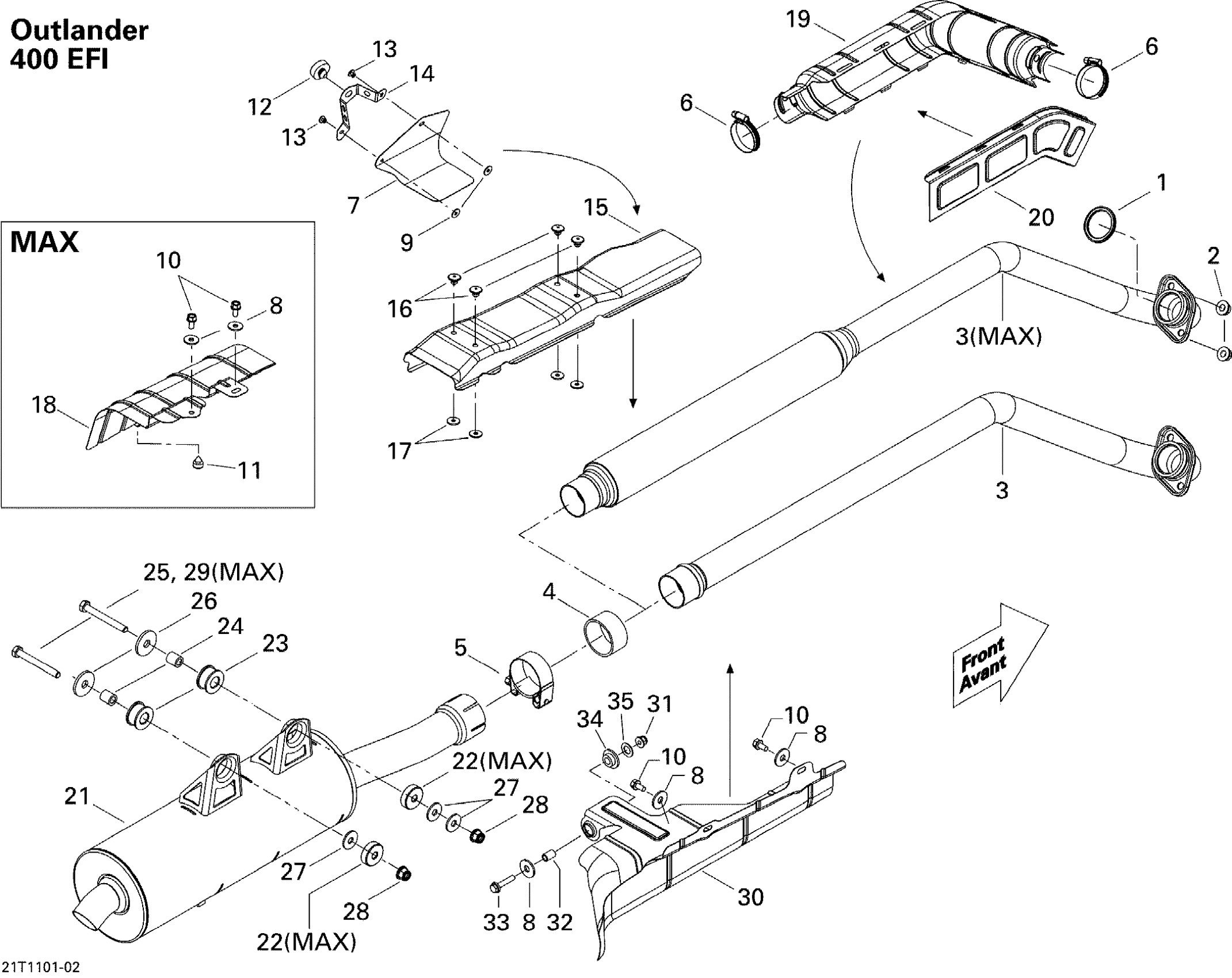

Can-Am Outlander Max 400 EFI, 2011 01- Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

PIPE_EXHAUST WELD - Call your local BRP dealership

707600599

Unavailable

4

Pipe Gasket

707600430

$19.49

5

Norma Gear Clamp

293650177

$10.49

6

Norma Gear Clamp

293650098

$4.44

7

HEAT SHIELD - Call your local BRP dealership

707600618

Unavailable

8

Flat Washer

250200082

$0.42

9

WASHER - Call your local BRP dealership

391301000

$0.70

10

Hex. Flange Screw M6 X 12

210261250

$1.90

11

Rubber Bumper

293830005

$8.09

12

Rubber Stopper

708000506

$7.55

13

RIVET_POP 1/8 X ,375 - Call your local BRP dealership

293150122

Unavailable

14

Panel Support

707600581

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

16

Pop Rivet 3/16"

390406500

$0.88

17

Washer

517124300

$0.19

18

HEAT SHIELD - Call your local BRP dealership

707600459

Unavailable

19

Heat Base Shield

707600462

$22.49

20

HEAT SHIELD COVER - Call your local BRP dealership

707600457

Unavailable

21

Muffler

707600574

$499.99

21

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600597

Unavailable

22

SPACER - Call your local BRP dealership

707600603

Unavailable

23

Vibration Damper

707603323

$11.65

24

Bushing

293900106

$4.55

25

Not Available As Spare Parts

XXX

Unavailable

26

Washer

503032900

$3.28

27

Flat Washer 8 mm

234082410

$1.47

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

HEX. FLANGED SCREW M8 X 80 - Call your local BRP dealership

207688044

Unavailable

30

Protector

707600621

$60.49

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Sleeve

293900078

$13.71

33

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

34

Grommet

705003932

$2.89

35

Washer

503175800

$3.28
