Description

Price

1

Main Tube

709401056

$129.99

2

Steering | STD

709401237

$63.49

2

HANDLEBAR PROT - Call your local BRP dealership | XT

715000271

Unavailable

3

Handle Grip

709400493

$14.83

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Screw M8 X 70

207687044

$7.41

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$52.99

23

LH Ball Joint

709402303

$36.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$24.49

30

REAR COVER ASS'Y - Call your local BRP dealership | Includes 30 to 31 (Europe)

709400335

Unavailable

31

Push Button

415130372

$122.49

32

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

33

Torx Screw K50 X 16

250000720

$1.69

34

Torx Screw K50 X 16

250000720

$1.69

35

ACCESSORIES SUPPORT - Call your local BRP dealership | XT (Camo)

709400246

Unavailable

35

Accessories Support | XT

709400256

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.90

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

703100217

Unavailable

39

Torx Screw K50 X 16

250000720

$1.69

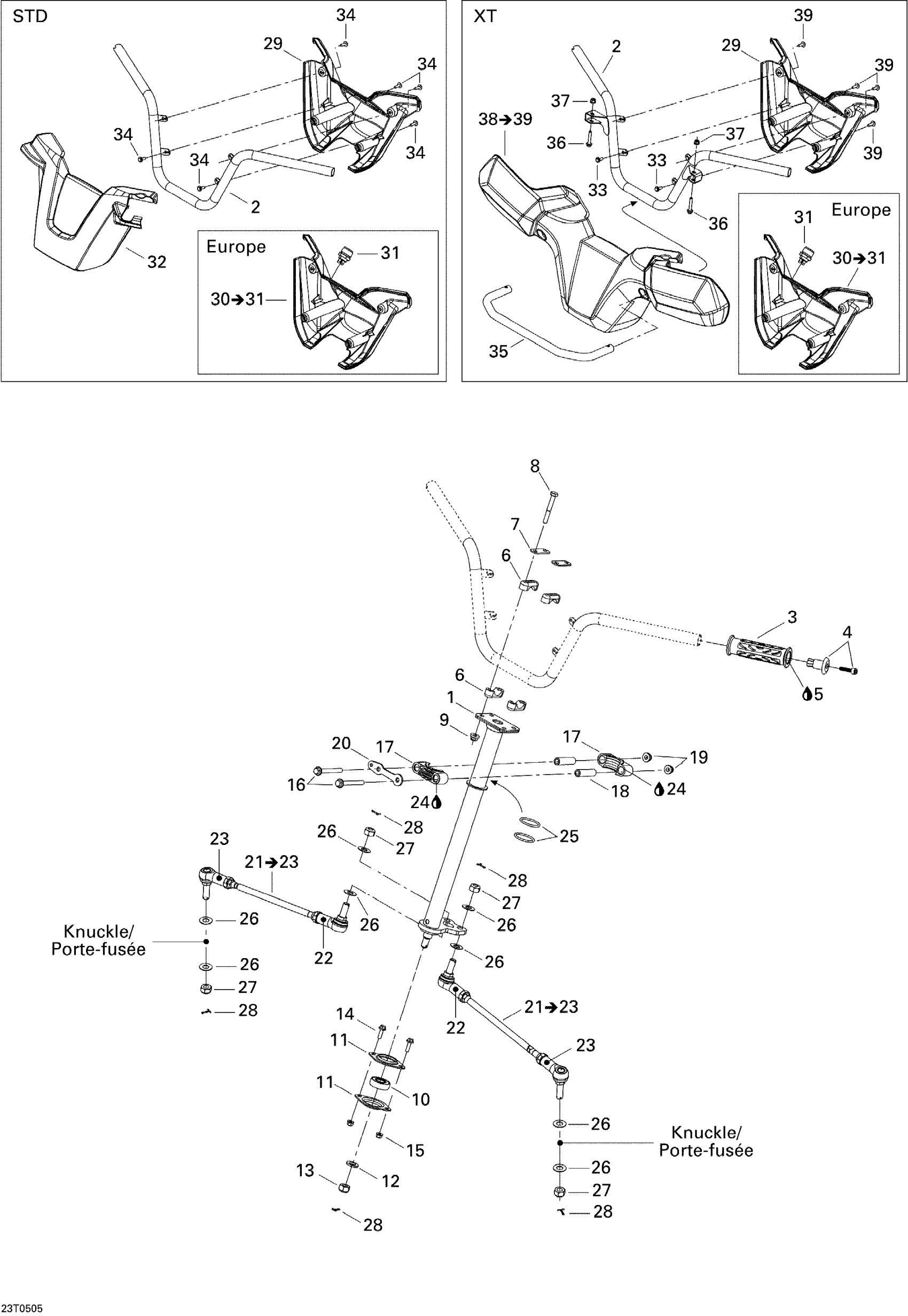

Can-Am Outlander 400 XT 4 X 4, 2005 07- Steering System Diagram

Main Tube

Steering | STD

HANDLEBAR PROT - Call your local BRP dealership | XT

Handle Grip

END-PIECE - Call your local BRP dealership | DS 650

Loctite 406, 7 Oz

Steering Support

Stiffner

Hex. Screw M8 X 60

Hex. Elastic Flange Nut M8

Ball Bearing

FLANGE, BEARING - Call your local BRP dealership

Flat Washer 12 mm

Hex. Flange Elastic Nut M12

Hex. Flange Screw M6 X 20, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M8 X 70

Half Bushing

BUSHING - Call your local BRP dealership

Hex. Flange Elastic Nut M8

STOPPER PLATE - Call your local BRP dealership

Tie Rod Ass'y | Includes 21 to 23

Ball Joint, RH Threads

LH Ball Joint

Synthetic Grease, 400 G

O-Ring

Hardened Washer

Nut M12

Cotter Pin

BLACK REAR STEERING COVER - Call your local BRP dealership

REAR COVER ASS'Y - Call your local BRP dealership | Includes 30 to 31 (Europe)

Push Button

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

Torx Screw K50 X 16

Torx Screw K50 X 16

ACCESSORIES SUPPORT - Call your local BRP dealership | XT (Camo)

Accessories Support | XT

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

Torx Screw K50 X 16
