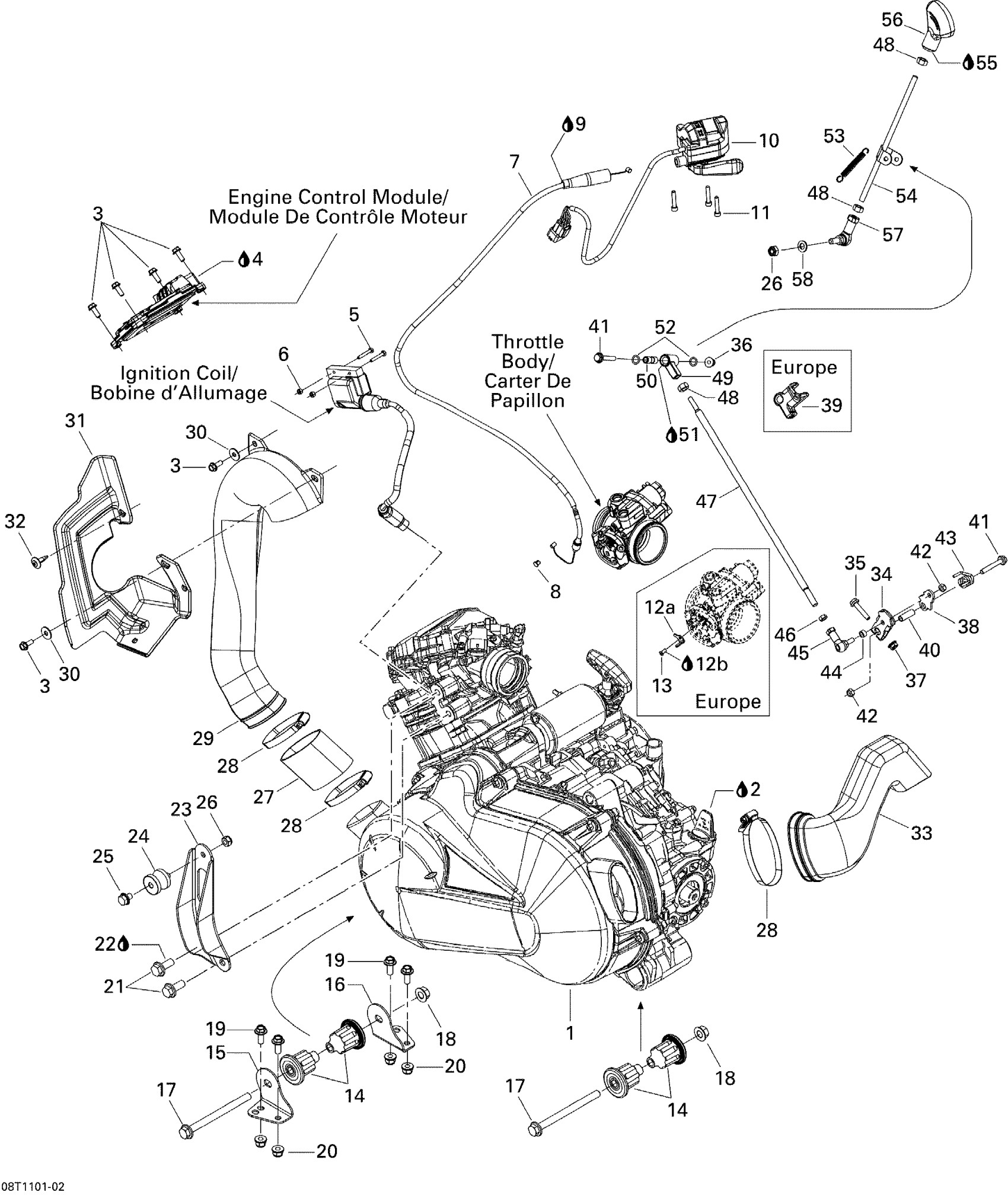

Can-Am Outlander Max 400 EFI, 2011 01- Engine And Engine Support Diagram

#

Description
Price

1

ENGINE LONG BLOCK, 400 EFI - Call your local BRP dealership | Includes 1 to 2

420040035

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

$1.67

4

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

5

Hex. Screw M4 X 25

207142544

$2.00

6

Elastic Stop Nut M4

232541414

$0.58

7

THROTTLE CABLE - Call your local BRP dealership

707000539

Unavailable

8

Cable Guide

707000434

$11.60

9

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

10

Throttle Handle | 4X4

707000595

$214.99

11

Socket Head Screw M5 X 25

205052588

$1.90

12a

Speed Limiter | Europe

707000658

Unavailable

12b

Loctite 243, 10 ml

293800060

$21.49

13

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

14

Anti Vibration Buffer

707001170

$20.99

15

ENGINE BRACKET - Call your local BRP dealership

707000802

Unavailable

16

ENGINE BRACKET - Call your local BRP dealership

707000803

Unavailable

17

Hex. Flange Screw M10 X 125

230602546

$7.41

18

Hex. Flange Elastic Nut M10

233201436

$2.11

19

Hex. Flange Screw M8 X 20

207682044

$1.15

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Hex. Flange Screw M10 X 25

207602544

$1.69

22

Loctite 243, 10 ml

293800060

$21.49

23

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

Unavailable

24

Rubber Isolator

707000949

$11.49

25

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

Flexibale Adaptor

707002585

$10.99

28

Norma Clamp

293650091

$11.12

29

AIR INTAKE - Call your local BRP dealership

707000540

Unavailable

30

Flat Washer

250200082

$0.42

31

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

Unavailable

32

Tuflock Phillips Plastic Screw

414745900

$1.69

33

AIR OUTLET - Call your local BRP dealership

707000718

Unavailable

34

Lever

707000503

$38.49

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Pivot Plate

707000507

$9.23

39

PIVOT - Call your local BRP dealership | Europe

707000977

Unavailable

40

Bushing

293900079

$8.89

41

Hex. Flange Screw M6 X 40

207664044

$2.22

42

Elastic Stop Nut M6

232561414

$0.55

43

Spring

707000310

$10.43

44

Bushing | DS 650 X

293900104

$5.50

45

LH BALL JOINT - Call your local BRP dealership

707000545

$45.99

46

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

47

Threaded Rod

707000567

$30.99

48

Hex. Nut M8

232081414

$0.72

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$11.99

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

Spring

707000569

$9.69

54

Lever Arm

707000786

$38.99

55

Loctite 243, 10 ml

293800060

$21.49

56

Lever Handle

707000284

$19.99

57

RH Ball Joint

707001959

$36.99

58

Flat Washer 8 mm

234081410

$0.83
