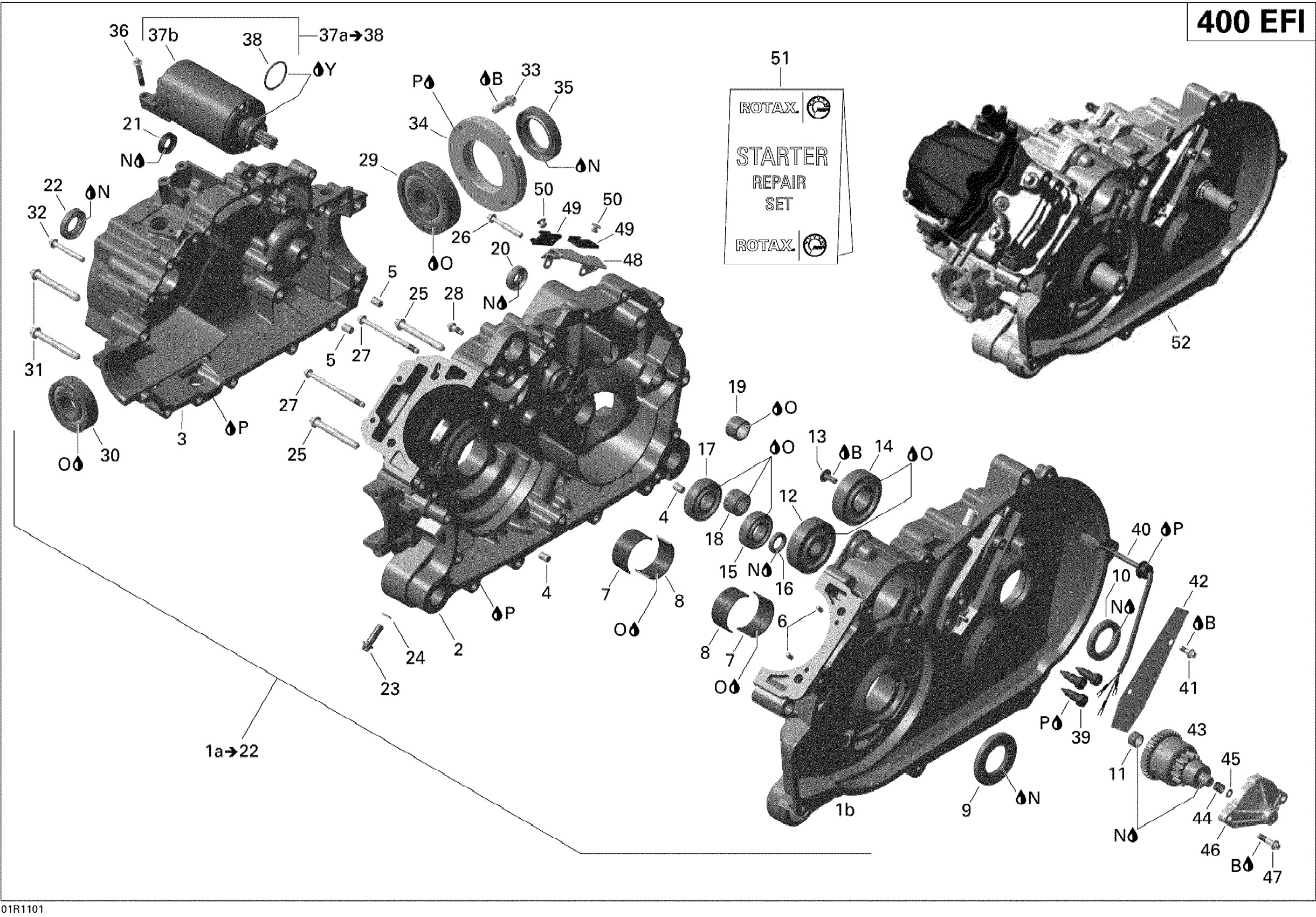

Can-Am Outlander Max 400 EFI, 2011 01- Crankcase Diagram

#

Description
Price

1a

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Center Pin 8 X 12

420632010

$4.01

6

Drive Pin 5 X 10

420929650

$1.68

7

Plain Bearing

420233960

$23.99

8

Plain Bearing

420233965

$23.99

9

Oil Seal

420630152

$18.54

10

Oil Seal

420950089

$19.49

11

Needle Bushing

420232482

$20.99

12

Ball Bearing

420632295

$47.49

13

Torx Screw M6 X 16

420241529

$2.11

14

Ball Bearing

420932822

$30.49

15

Ball Bearing 6302

420232291

$30.49

16

Oil Seal

420250130

$17.59

17

Ball Bearing 6204

420932433

$23.49

18

Needle Bushing

420232085

$37.99

19

Needle Bushing

420832240

$20.99

20

Oil Seal

420250450

$17.04

21

Oil Seal

420650315

$11.65

22

Oil Seal

420930392

$15.81

23

Torx Flange Screw M8 X 25

420440372

$4.12

24

Sealing Ring

420950141

$2.00

25

Torx Flange Screw M8 X 65

420440402

$7.41

26

Torx Flange Screw M6 X 45

420440324

$0.98

27

Torx Flange Screw M6 X 85

420641228

$7.41

28

Torx Flange Screw M6 X 16

420440162

$3.17

29

Ball Bearing 6405

420632280

$98.49

30

Ball Bearing

420932822

$30.49

31

Torx Flange Screw M8 X 65

420440402

$7.41

32

Torx Flange Screw M6 X 45

420440324

$0.98

33

Torx Flange Screw M8 X 25

420440372

$4.12

34

Bearing Cover

420610243

$58.99

35

Oil Seal

420650682

$19.49

36

Torx Flange Screw M6 X 35

420440274

$1.01

37a

Electric Starter | Includes 37 to 38

420684283

$265.99

37b

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Position Switch

420241856

$35.99

40

Wiring Harness

420265831

$53.99

41

Torx Flange Screw M6 X 16

420440162

$3.17

42

Cover Sheet

420251290

$12.12

43

Starter Drive Assembly

420684052

$279.99

44

Spring

420938204

$7.65

45

Washer 5.3

420927574

$1.90

46

Reduction Cover Gear

420610891

$20.99

47

Hex. Screw M6 X 25

420240034

$1.90

48

Retaining Plate

420251491

$7.87

49

Connector Bracket

420260590

$12.18

50

Blind Rivet

420243010

$5.50

51

BRUSH KIT - Call your local BRP dealership

420266307

Unavailable

52

ENGINE LONG BLOCK, 400 EFI - Call your local BRP dealership | Includes 1 to 2

420040035

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.99
