Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1088

710002134

Unavailable

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.25

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

260

Was 515175319 Tubing 22 mm

219704423

$14.99

297

Insulated Sheath

278001007

$3.58

301

Diode

409012700

$11.12

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

641

Male Housing, 2 Circuits

710000667

$8.32

666

Little Fuse, 5 Amperes

710000742

$8.79

667

Little Fuse, 7.5 Amperes

710000743

$8.49

670

Little Fuse, 20 Amperes

710000746

$8.49

672

Diode

710000748

$11.12

769

Bus Bar

278002165

$8.79

778

Bus Bar

278002165

$8.79

889

Seal

710001233

$3.19

890

Terminal

710001229

$3.19

899

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

921

Female Terminal

710001340

$5.89

930

Wire Seal

515176621

$7.49

944

CAP - Call your local BRP dealership

710001350

Unavailable

1002

Terminal

710001630

$2.09

B

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

B

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

B

SEAL - Call your local BRP dealership

515175886

Unavailable

B

Latch

515175883

$9.12

B

LOCK - Call your local BRP dealership

515175884

Unavailable

B

COVER - Call your local BRP dealership

515175885

Unavailable

BD

Female Terminal

409012100

$4.55

BD

Seal

409012300

$4.54

BD

Female Housing, 6 Circuits

710000081

$8.79

BD

Cap

710000840

$5.89

BN1

Terminal

710000913

$5.61

BN2

Terminal

710000913

$5.61

BP

Terminal

710000913

$5.61

CA

HOUSING - Call your local BRP dealership

710001634

Unavailable

CA

LOCK - Call your local BRP dealership

710001633

Unavailable

CA

Terminal Joint

710001905

$2.09

CA

Terminal

710001906

$2.54

CAKX

Female Housing, 4 Circuits

409209700

$16.18

CC

Female Terminal

710000274

$9.59

CC

Lock

710000848

$3.19

CC

Male Housing, 6 Circuits

710000849

$9.69

CI

Plug

515175812

$2.19

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

Wire Seal

515175803

$2.99

CI

Female Terminal

515175806

$0.99

CI

Female Housing

710000399

$16.49

CI

Female Terminal

710001131

$8.89

CI2

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

CI2

Female Terminal

278001665

$4.55

CRD

Female Terminal

515175231

$4.39

CRD

Female Housing, 2 Circuits

515175658

$16.18

CRD

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

CRG

Female Terminal

515175231

$4.39

CRG

Female Housing, 2 Circuits

515175658

$16.18

CRG

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

CV

Male Terminal

278000631

$4.39

CV

Male Lock, 3 Circuits

409207600

$3.19

CV

Male Housing

515175666

$15.49

DB

Sealing Cap

293000052

$3.19

DB

Male Wedge, 6 Circuits

515175678

$5.39

DB

Female Terminal

278001665

$4.55

DB

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

DC1

Female Terminal

710000038

$4.55

DC2

Female Terminal

710000038

$4.55

DC3

Female Terminal

515175231

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-1

Housing

710001161

$11.12

DPS-1

Lock

710001162

$3.19

DPS-1

Wire Seal

710001163

$7.69

DPS-1

Female Terminal

710001164

$8.89

DPS-1

Cap

710001114

$18.49

DPS-1

Cap

710001225

$9.19

DPS-2

Fuse Holder

278001325

$8.79

DPS-2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-2

Female Terminal

710000357

$7.69

DPS-3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-3

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS-3

Wire Seal

710001159

$6.35

DPS-3

Female Terminal

710001160

$6.35

DPS-3

Lock

710001323

$7.55

FP

Female Terminal

278001014

$3.28

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FRR

Female Terminal

515175231

$4.39

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FRV1

Female Terminal

710000082

$7.69

FRV2

Female Terminal

710000082

$7.69

FT

Male Terminal

409004300

$5.61

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Clip

710000992

$4.29

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HIC

Female Terminal

278001665

$4.55

KS

Female Housing, 2 Circuits

278000217

$9.59

KS

Wire Seal

278000218

$4.39

KS

Clip

710000992

$4.29

MC1

HOUSING - Call your local BRP dealership

710001435

Unavailable

MC1

TERMINAL - Call your local BRP dealership

710001436

Unavailable

MD

Seal

409012300

$4.54

MD

Male Housing, 4 Circuits

710000329

$15.36

MD

Female Terminal

710000335

$2.29

MD

Cap

710000840

$5.89

MG1

Male Terminal

409011300

$5.93

MG1

Seal

409012300

$4.54

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG2

Female Terminal

409012100

$4.55

MG2

Seal

409012300

$4.54

MG2

Female Housing, 6 Circuits

710000081

$8.79

MG2

Wire Seal

710000402

$4.55

MG3

Male Terminal

409011300

$5.93

MG3

Seal

409012300

$4.54

MG3

Wire Seal

710000402

$4.55

MG3

Male Housing Terminal, 6 Circuits

710001446

$4.55

PD

Female Terminal

278001014

$3.28

PD

Connector

710000780

$19.49

PD

Wire Seal

278001013

$3.28

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Fuse Puller

710000781

$8.09

PF1

Female Terminal

710000836

$5.61

PF1

Female Terminal

710000837

$5.39

PF1

Cap

710000840

$5.89

PF1

Fuse Cover

710001026

$21.99

PF1

Foam

278002172

$5.89

PF1

FUSE LOGO - Call your local BRP dealership

710001567

Unavailable

PF2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PF2

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

PF2

Terminal

710000913

$5.61

PF2

LOCK - Call your local BRP dealership

710001633

Unavailable

PF2

Terminal

710001636

$3.19

PF2

SEAL - Call your local BRP dealership

710001637

Unavailable

PF2

Hex. Flange Elastic Nut M6

233261494

$1.58

PF2

Terminal Joint

710001905

$2.09

PG

Female Terminal

278001014

$3.28

PG

Connector

710000780

$19.49

PG

Wire Seal

278001013

$3.28

PR

Female Terminal

515175231

$4.39

PR

Female Housing, 3 Circuits

515175495

$16.18

PR

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

RD1

Female Terminal

710000877

$9.12

RD1

Female Housing, 3 Circuits

710000879

$25.99

RD1

Seal

710000881

$17.99

RD1

Cap

710000882

$11.49

RD2

Female Terminal

710000877

$9.12

RD2

Housing, 3 Circuits

710000880

$21.99

RD2

Seal

710000881

$17.99

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SW1

Was 409901600 Tubing 19mm

219704398

$95.99

SW1

Female Terminal

710000421

$6.11

SW2

Insulated Sheath

278001008

$3.28

SW2

Female Terminal

278002261

$7.55

SW4

Open Barrel

278000992

$2.21

SWRC

Female Terminal

278000223

$3.19

SWRC

Male Housing, 3 Circuits

278000273

$9.59

SWRC

Wire Seal

710000504

$4.39

SWW

Female Terminal

278000223

$3.19

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

710000504

$4.39

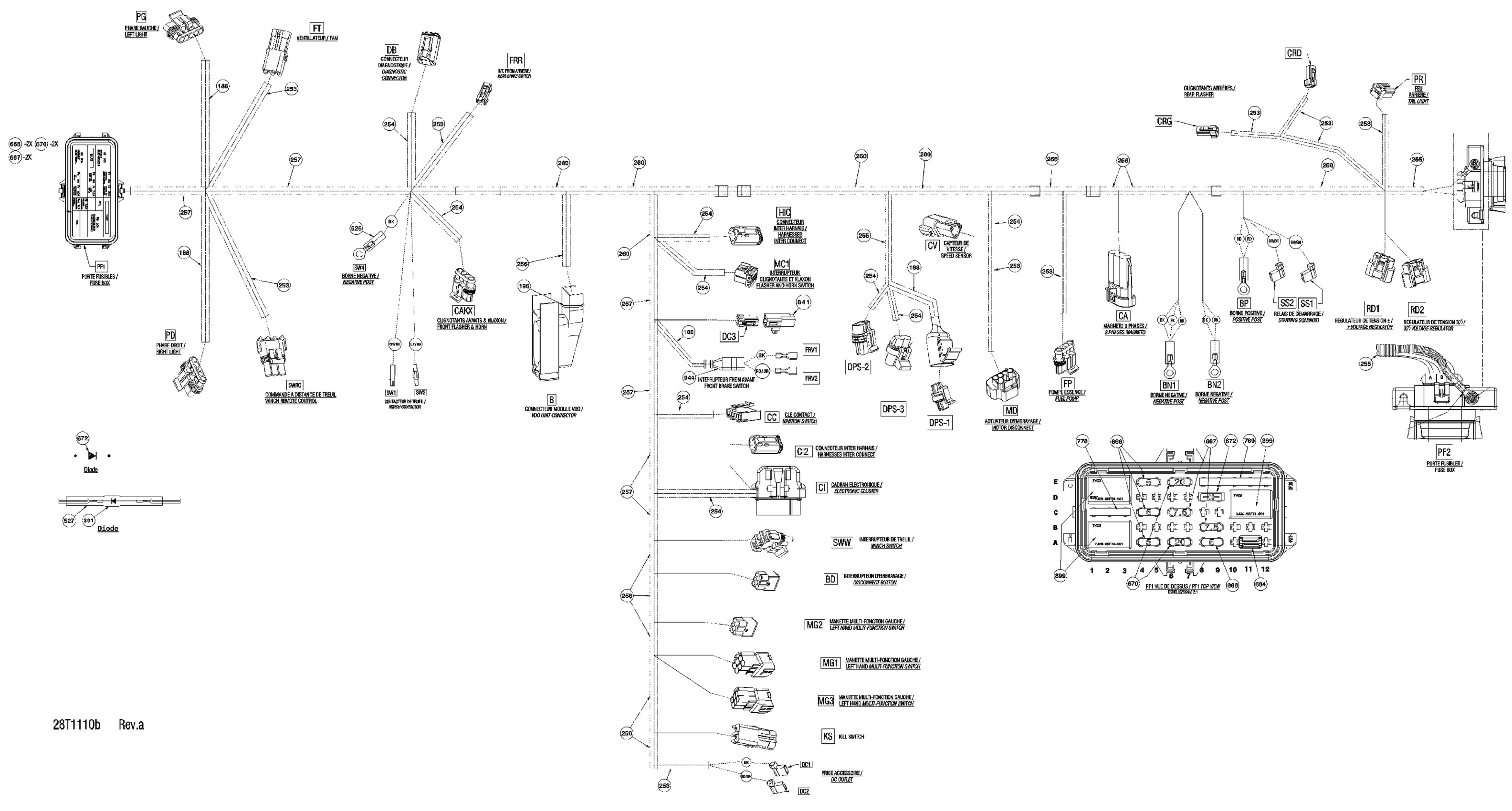

Can-Am Outlander 800R EFI, XXC, 2011 10- Main Harness Europe Diagram

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1088

Tubing 12 mm

Tie Wrap 142 mm

Tubing 6 Mm 3000Mm Long

Was 409901700 Tubing (9 mm)

Was 409901800 Tubing (13 mm)

Tubing 16 Mm 1000Mm Long

Was 409901600 Tubing 19mm

Was 515175319 Tubing 22 mm

Insulated Sheath

Diode

SHRINK TUBING - Call your local BRP dealership

Male Housing, 2 Circuits

Little Fuse, 5 Amperes

Little Fuse, 7.5 Amperes

Little Fuse, 20 Amperes

Diode

Bus Bar

Bus Bar

Seal

Terminal

Relay, 30 AMP | Obsolete. ATV order 515176774

Female Terminal

Wire Seal

CAP - Call your local BRP dealership

Terminal

FEMALE TERMINAL - Call your local BRP dealership

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

SEAL - Call your local BRP dealership

Latch

LOCK - Call your local BRP dealership

COVER - Call your local BRP dealership

Female Terminal

Seal

Female Housing, 6 Circuits

Cap

Terminal

Terminal

Terminal

HOUSING - Call your local BRP dealership

LOCK - Call your local BRP dealership

Terminal Joint

Terminal

Female Housing, 4 Circuits

Female Terminal

Lock

Male Housing, 6 Circuits

Plug

Female Housing, 24 Circuits

Retainer Block

Wire Seal

Female Terminal

Female Housing

Female Terminal

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Was 293550004 Dielectric Grease, 150 g

Female Terminal

Female Housing, 2 Circuits

Was 293550004 Dielectric Grease, 150 g

Male Terminal

Male Lock, 3 Circuits

Male Housing

Sealing Cap

Male Wedge, 6 Circuits

Female Terminal

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

Female Terminal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Was 293550004 Dielectric Grease, 150 g

Was 293550004 Dielectric Grease, 150 g

Housing

Lock

Wire Seal

Female Terminal
