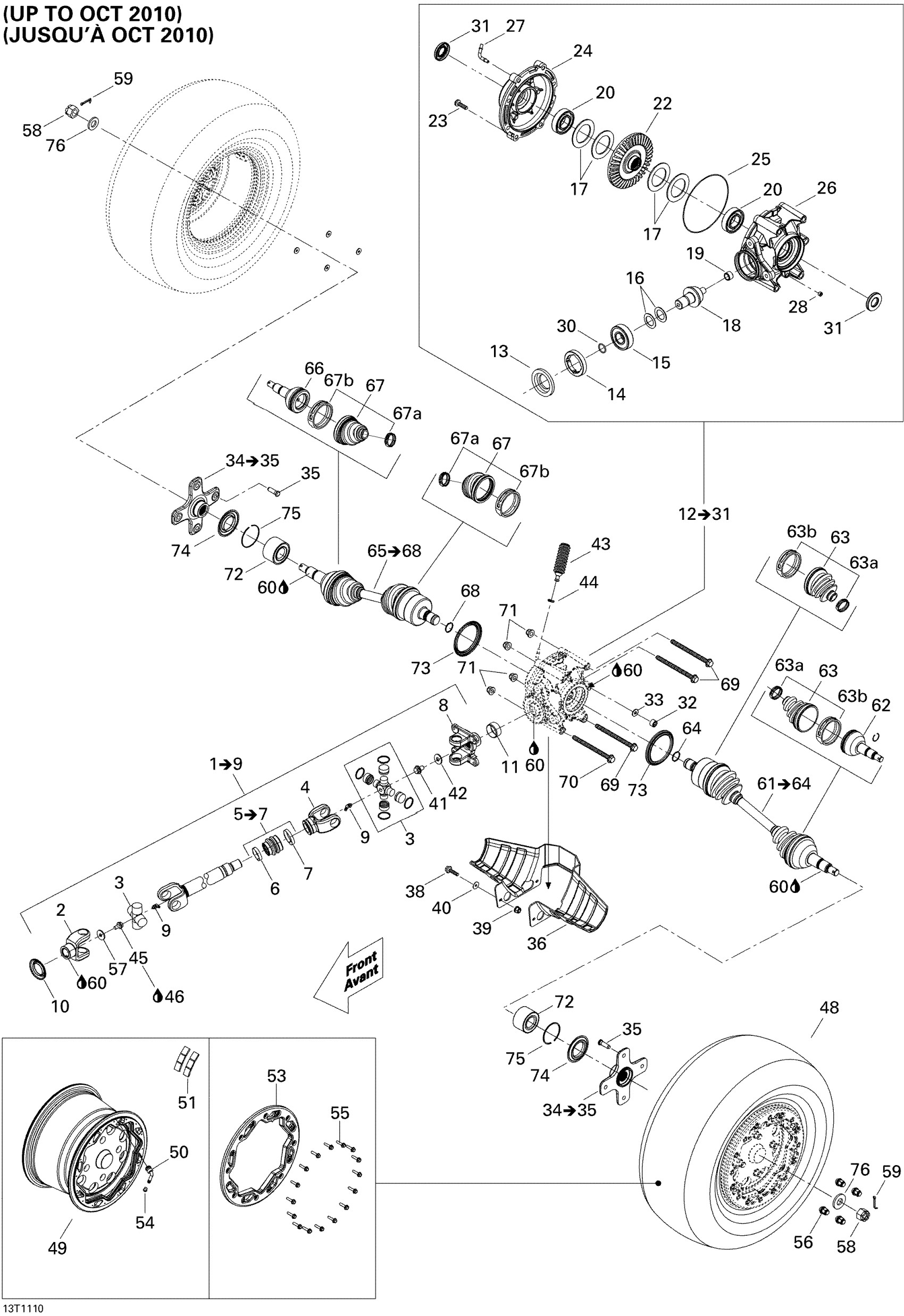

Can-Am Outlander 800R EFI, XXC, 2011 08- Drive System, Rear Diagram

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$433.99

Fixe Yoke

715900101

$29.49

Universal Joint

715900326

$68.99

SLIDING JOINT - Call your local BRP dealership

705501072

Unavailable

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

Collar | 4X4

705400148

Unavailable

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

Protector

705501123

$7.55

Wear Ring | 4X4

705400036

$26.49

Differential Kit | Includes 10 to 29

703501033

$1,038.99

Oil Seal | 4X4

705401481

$19.49

Nut

705502059

$32.99

Ball Bearing | 4X4

705500260

$31.99

Pinion Gear Shim .022"

705500075

Unavailable

Pinion Gear Shim 1.67 mm

705502061

$18.99

Pinion Gear Shim

705501162

$16.49

Differential Shim 0.02 mm

705502060

$13.76

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

Needle Bearing | 4X4

705500261

$19.99

Ball Bearing

705502737

$48.49

GEAR, 36 TOOTH - Call your local BRP dealership

705501048

Unavailable

Screw | 4X4

705401601

$10.49

REAR COVER - Call your local BRP dealership

705501362

Unavailable

Seal | 4X4

705500265

$18.76

REAR COVER - Call your local BRP dealership

705501363

Unavailable

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

Drain Plug | 4X4

705500894

$11.49

O-Ring | 4X4

705500267

$7.65

Oil Seal

705501996

$21.99

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

Protector Kit | Includes 38 to 39

703500722

$67.99

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer

250200082

$0.42

Hex Flange Screw M12 X 16

250001039

$2.11

Flat Washer M12

250200102

$2.11

Rubber Bellow | 4X4

705400552

$6.14

Oetiker Clamp

293650042

$3.09

Hex Flange Screw M12 X 16

250001039

$2.11

Rear Tire | Europe & International

705500820

$164.99

Tire | North America

705500926

$164.99

Rear Rim

705501137

$191.49

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

Unavailable

1/2 Oz Weight

219704465

$3.89

REINFORCEMENT DISC PLATE - Call your local BRP dealership

705401248

Unavailable

VALVE CAP - Call your local BRP dealership

293000111

Unavailable

Hex. Flange Screw M6 X 25

250000787

$2.22

Black, Wheel Nut M10 X 1.25

250100184

$4.51

Flat Washer M12

250200102

$2.11

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400036

$2.11

Synthetic Grease, 400 G

293550010

Unavailable

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

CV JOINT - Call your local BRP dealership

705500980

Unavailable

Boot Kit

705500870

$42.49

Oetiker Clamp (27,5mm)

293650203

$9.96

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

CV JOINT - Call your local BRP dealership

705500980

Unavailable

Boot Kit

705500870

$42.49

Oetiker Clamp (27,5mm)

293650203

$9.96

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership

230603036

Unavailable

HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership

230603536

Unavailable

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Wear Ring

705501124

$7.90

Wear Sleeve | 4X4

705501121

$7.90

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65
