Description

Price

10

Deep Black, Chassis Kit

715009069

$3,159.99

10a

Pop Rivet 3/16"

390402200

$0.35

80

Power Steering Support

705208741

$70.99

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

160

Heat Shield

707002717

$51.99

165

Pop Rivet 3/16”

293150092

$3.09

210

Not Available As Spare Parts

XXX

Unavailable

210b

Not Available As Spare Parts

XXX

Unavailable

210c

Not Available As Spare Parts

XXX

Unavailable

300

Deep Black, LH Guard Panel

705208686

$276.49

300

Hyper Silver, LH Guard Panel | XTP

705208692

$276.49

301

Torx Truss M8 X 25

250000874

$2.11

305

Pop Rivet 3/16”

293150108

$1.19

310

Deep Black, RH Guard Panel

705208687

$276.49

310

Hyper Silver, RH Guard Panel | XTP

705208693

$276.49

320

LH Rock Slider Support

705206342

$45.99

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

RH Rock Slider Support

705206343

$45.99

340

Front Guard Support

705208661

$5.39

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

390a

Torx Screw M8 X 30

250000886

$2.11

390b

Torx Truss M/S M8 x X 100

250001106

$7.97

390c

Hex. Flange Elastic Nut M8

233281414

$1.47

390d

Spacer

705207754

$14.49

400

Deep Black, Front Bumper

715006143

$350.99

400

XTP FRONT BUMPER - Call your local BRP dealership | XTP

715006145

Unavailable

410

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

450

Can-Am Red, Front Tow Hook

705211623

$33.99

451

Torx Screw M8 X 30

250000886

$2.11

452

Hex. Flange Elastic Nut M8

233281414

$1.47

500

Rear Chassis Reinforcement

705207753

$33.99

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

Voltage Regulator Support | Base

710006644

$18.99

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

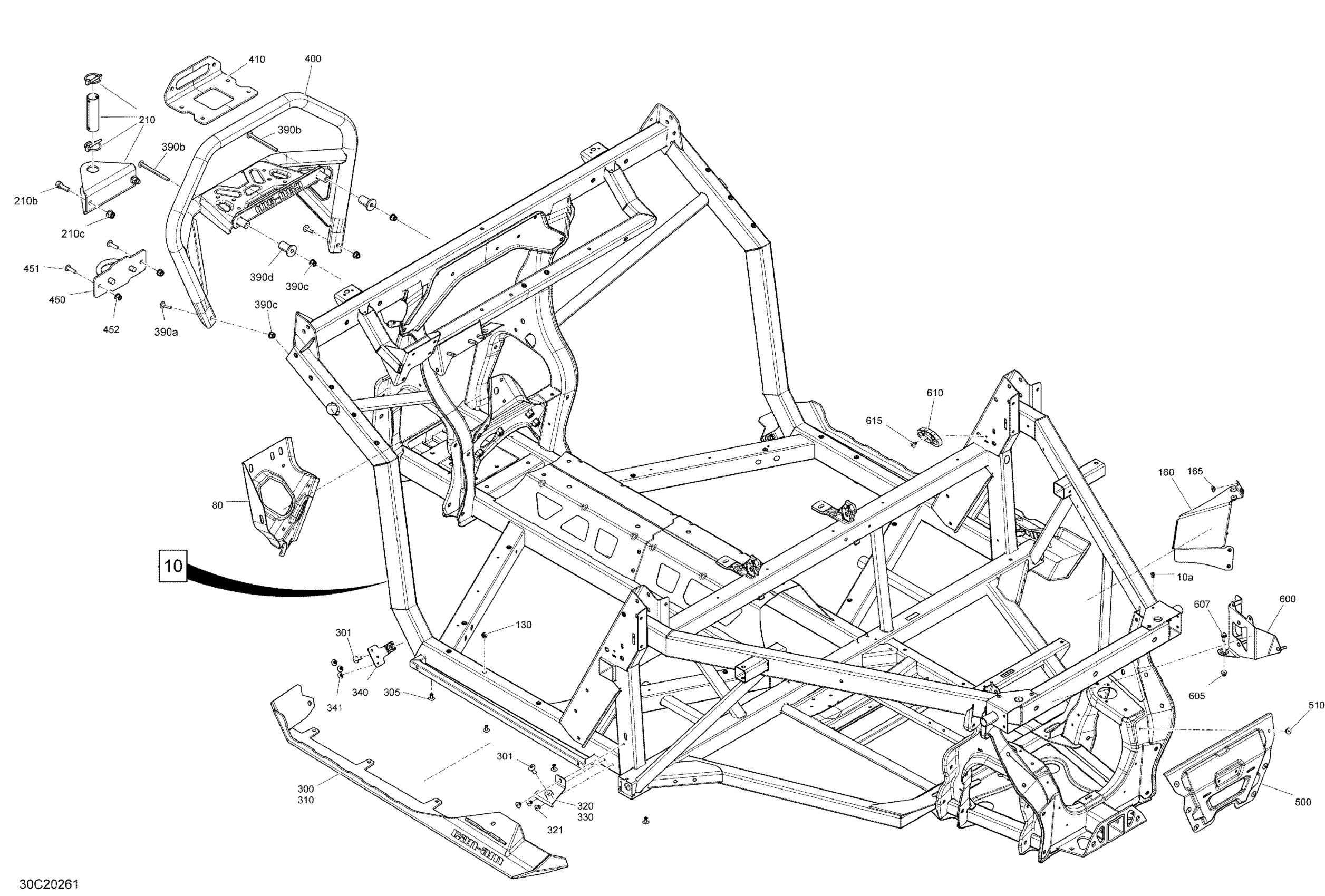

Can-Am 003 - Defender HD10 - Except XMR - North America, 2020 09- Frame Diagram

Deep Black, Chassis Kit

Pop Rivet 3/16"

Power Steering Support

Insert Half Hex Body M6 x 1.0

Heat Shield

Pop Rivet 3/16”

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Deep Black, LH Guard Panel

Hyper Silver, LH Guard Panel | XTP

Torx Truss M8 X 25

Pop Rivet 3/16”

Deep Black, RH Guard Panel

Hyper Silver, RH Guard Panel | XTP

LH Rock Slider Support

Pop Rivet 3/16" | DS 650 X

RH Rock Slider Support

Front Guard Support

Pop Rivet 3/16" | DS 650 X

Torx Screw M8 X 30

Torx Truss M/S M8 x X 100

Hex. Flange Elastic Nut M8

Spacer

Deep Black, Front Bumper

XTP FRONT BUMPER - Call your local BRP dealership | XTP

Deepo Black, Winch Support | Includes 53a to 53a

Can-Am Red, Front Tow Hook

Torx Screw M8 X 30

Hex. Flange Elastic Nut M8

Rear Chassis Reinforcement

Pop Rivet 3/16" | DS 650 X

Voltage Regulator Support | Base

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 16, Scotch Grip

Spacer

Pop Rivet 3/16" | DS 650 X
