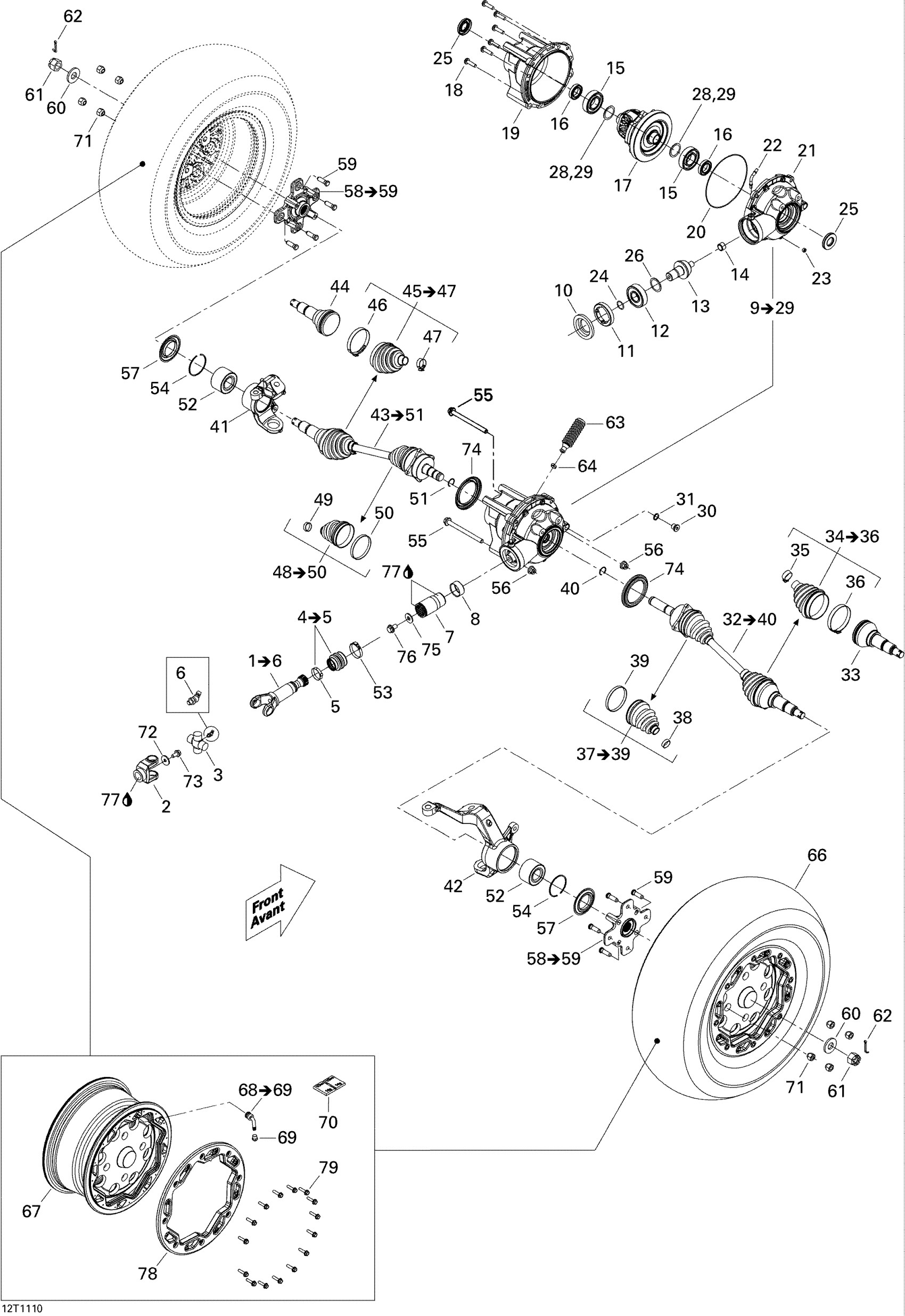

Can-Am Outlander 800R EFI, XXC, 2011 07- Drive System, Front Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$270.49

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

6

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

7

Front Bushing Shaft Kit | 4X4

703500678

$114.99

8

Wear Ring | 4X4

705400036

$26.49

9

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

10

Oil Seal | 4X4

705401481

$19.49

11

Nut | 4X4

705401603

$35.99

12

Ball Bearing | 4X4

705500260

$31.99

13

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

14

Needle Bearing | 4X4

705500261

$19.99

15

Ball Bearing | 4X4

705401606

$51.99

16

Ball Bearing | 4X4

293350044

$31.99

17

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

18

Screw | 4X4

705401601

$10.49

19

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

20

Seal | 4X4

705500265

$18.76

21

Front Cover

705400646

Unavailable

22

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

23

Drain Plug | 4X4

705500894

$11.49

24

O-Ring | 4X4

705500267

$7.65

25

Gasket | 4X4

705401618

$18.49

26

Pinion Gear Shim 1.67 mm

705502061

$18.99

28

Shim | 4X4

705401604

$57.99

29

Shim | 4X4

705401604

$57.99

30

Fill Level Plug | 4X4

705500504

$10.01

31

Copper Washer | 4X4

705500506

$0.45

32

RH Half Shaft | Includes 34 to 39

705401579

$243.99

33

CV Joint

705500560

Unavailable

34

Wheel Boot Kit

705400511

$42.49

35

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

36

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

37

Differential Boot Kit

705400512

$42.49

38

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

39

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH KNUCKLE - Call your local BRP dealership

705400820

Unavailable

42

RH KNUCKLE - Call your local BRP dealership

705400821

Unavailable

43

HALF SHAFT LH. - Call your local BRP dealership | Includes 43 to 51

705401111

Unavailable

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$42.49

46

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

47

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

48

Differential Boot Kit

705400512

$42.49

49

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

50

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$52.99

53

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

54

Circlip

293370019

$4.68

55

Hex. Flange Screw M10 X 125

230602546

$7.41

56

Hex. Flange Elastic Nut M10

233201436

$2.11

57

EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4

705501122

Unavailable

58

WHEEL HUB ASS'Y - Call your local BRP dealership | 2X4 / Includes 63 to 64

705401040

Unavailable

59

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

60

Conical Spring Washer M18

250200171

$7.65

61

Hex. Flange Castellated Nut M18

232291413

$7.98

62

Cotter Pin

250400036

$2.11

63

Rubber Bellow | 4X4

705400552

$6.14

64

Oetiker Clamp

293650042

$3.09

66

Tire | North America

705400600

$189.99

66

TIRE_205/80R12 F - Call your local BRP dealership | Europe & International

705400475

$184.99

67

Front Rim

705400945

$170.49

68

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

Unavailable

69

VALVE CAP - Call your local BRP dealership

293000111

Unavailable

70

1/2 Oz Weight

219704465

$3.89

71

Black, Wheel Nut M10 X 1.25

250100184

$4.51

72

Flat Washer M12

250200102

$2.11

73

Hex Flange Screw M12 X 16

250001039

$2.11

74

Wear Sleeve

705400780

$7.90

75

Flat Washer M12

250200102

$2.11

76

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

77

Synthetic Grease, 400 G

293550010

Unavailable

78

REINFORCEMENT DISC PLATE - Call your local BRP dealership

705401248

Unavailable

79

Hex. Flange Screw M6 X 25

250000787

$2.22
