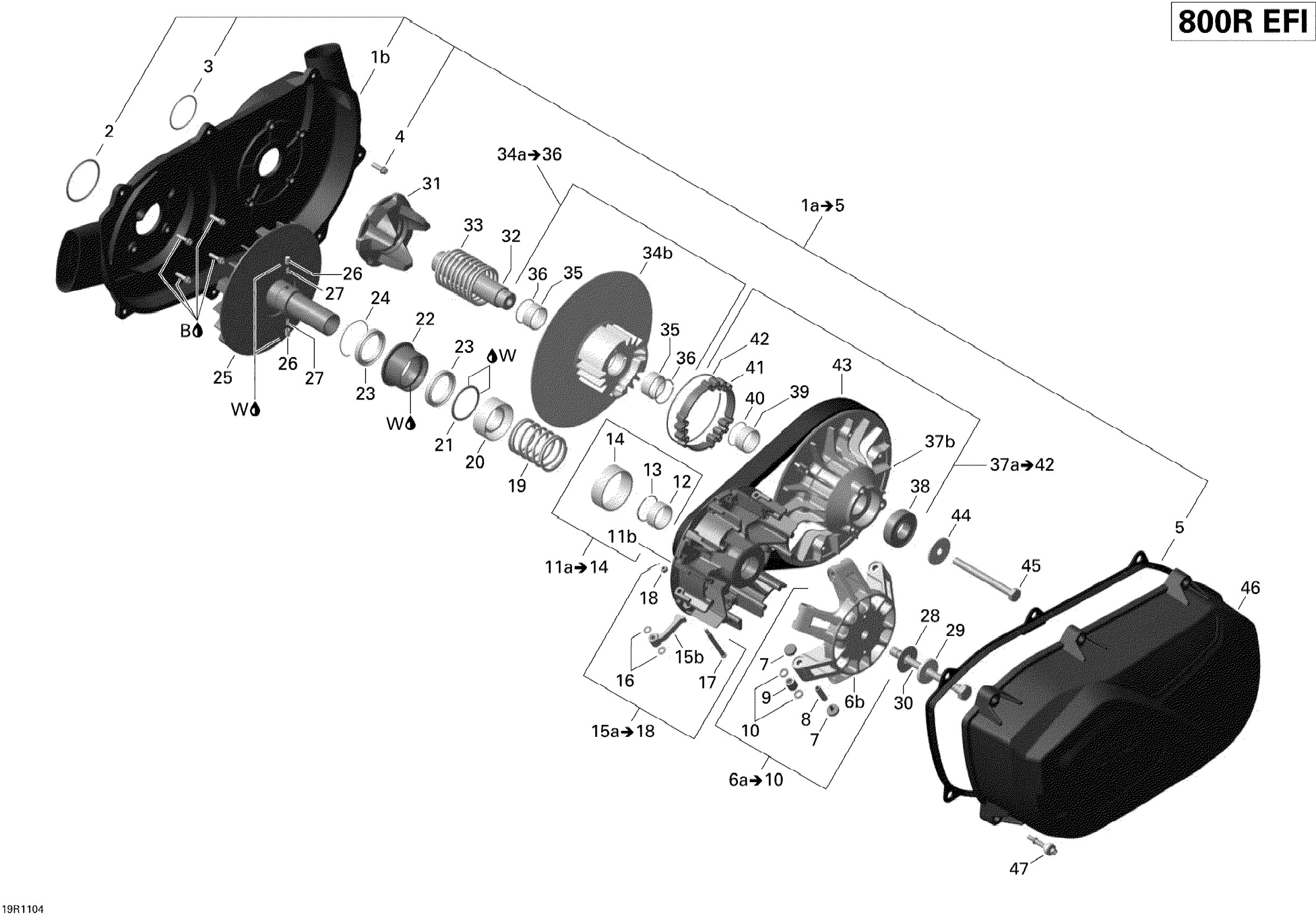

Can-Am Outlander 800R EFI, XXC, 2011 05- Transmission Outlander Diagram

#

Description
Price

1a

CVT Air Guide Kit

420611407

$134.99

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6a

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Roller

417223767

$11.59

11a

Outer Haft

420280467

$329.99

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15a

Centrifugal Lever Kit | Includes 14 to 17

420248495

$175.49

15a

Centrifugal Lever Set | Includes 14a to 17

420248497

$154.49

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238610

$26.49

20

Seat Spring

420627578

$35.99

21

Friction Washer

420460430

$13.99

22

Drive Pulley Clutch

420257195

$114.99

23

Ball Bearing

420632377

$49.99

24

Retaining Ring

420245951

$5.31

25

Inner Half

420280374

$339.99

26

Spring Sleeve

420229577

$18.49

27

Spring

420239134

$3.06

28

Thrust Washer

420627920

$7.51

29

Spring Washer

420627768

$21.99

30

Hex. Screw M12 X 140

420641859

$24.99

31

Cam

420280473

$137.99

32

Driven Pulley Shaft

420220914

$129.99

33

Compression Spring

420238176

$35.99

34a

Inner Half Ass'y | Includes 33a to 35

420280499

$309.99

34b

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

37b

Not Available As Spare Part - Friction Washer

Unavailable

38

Ball Bearing

420932421

$28.49

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Torque Gear

420660124

$23.49

42

Retaining Ring

420245911

$5.31

43

V-Belt

422280366

$179.99

44

Thrust Washer

420627590

$16.99

45

Hex. Screw M10 X 110

420441485

$12.18

46

Variator Cover

420611397

$219.99

47

Allen Screw M6 x 30,5

420440561

$4.44

B

Loctite 243, 10 ml

293800060

$21.49

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
