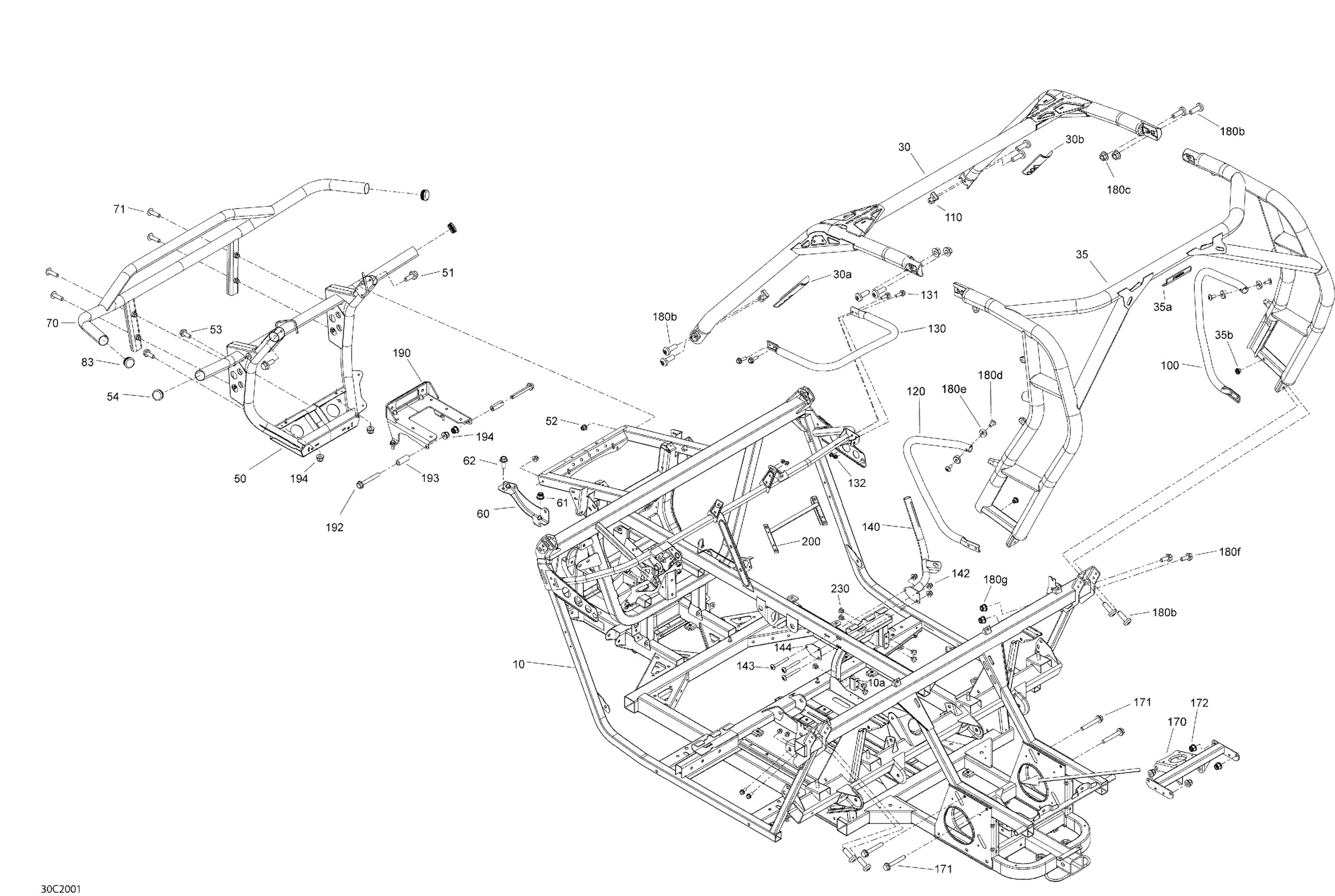

Can-Am 001 - Commander 800R EFI - North America, 2020 09- Frame Diagram

#

Description
Price

10

Black, Frame

715004811

$2,319.99

10a

Seat Support

705202602

$3.89

30

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

30

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

30a

Warning Label

704903679

Unavailable

30b

Warning Label

704903680

Unavailable

35

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

35

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

35a

Warning Label

704903492

Unavailable

35b

Insert Half Hex Body M6 x 1.0

250100199

$3.19

50

Black Front Bumper

705202995

$404.49

51

Hex. Flange Screw M6 X 16

207661644

$0.74

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

53

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

54

Cap

705202455

$5.69

60

Front Differential Support

705201721

$19.49

61

Hex. Flange Elastic Nut M8

233281414

$1.47

62

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Black Front Bumper | XT, X

715000958

$308.49

70

Gulfstream Blue, Front Bumper | Package XT, Gulfstream Blue

705207280

$222.49

71

Hex Torx Truss M8 X30

250000745

$3.17

83

Cap

705202455

$5.69

100

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

100

Blue RH Side Protector Tube | Blue Cage Model

705204817

$46.49

110

Binding Block

705203415

$18.49

120

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

120

TUBE LH B-352 PAINTED - Call your local BRP dealership | Blue Cage Model

705204816

Unavailable

130

Black Handle

705203332

$132.49

131

Hex. Flange Screw M6 X 20

207662046

$2.11

132

Elastic Flange Nut M6 X 1.0

233261416

$2.11

140

Black Console Handle

705204399

$137.49

142

Elastic Flange Nut M6 X 1.0

233261416

$2.11

143

Torx Screw M6 X 50

250000317

$2.11

144

Steel Plate

705204606

$10.99

170

Differential Holder

705203538

$38.99

171

Hex. Flange Screw M8 X 55

207685544

$5.39

172

Hex. Flange Elastic Nut M8

233281414

$1.47

180b

Screw Pan M10 X 30

250000848

$1.90

180c

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

180d

Torx Truss M6X14

250000789

$5.39

180e

Offset Washer

705202223

$4.14

180f

Hex. Flange Screw M8 X 20

207682044

$1.15

180g

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Winch Plate | XT

715000704

$122.49

192

Hex. Flange Screw M8 x 60

207686044

$3.07

193

Bushing

705202499

$6.67

194

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Reinforcement Panel

705203330

$154.99

230

Hemlock Rivet, 6.5 mm

293150096

$3.27
