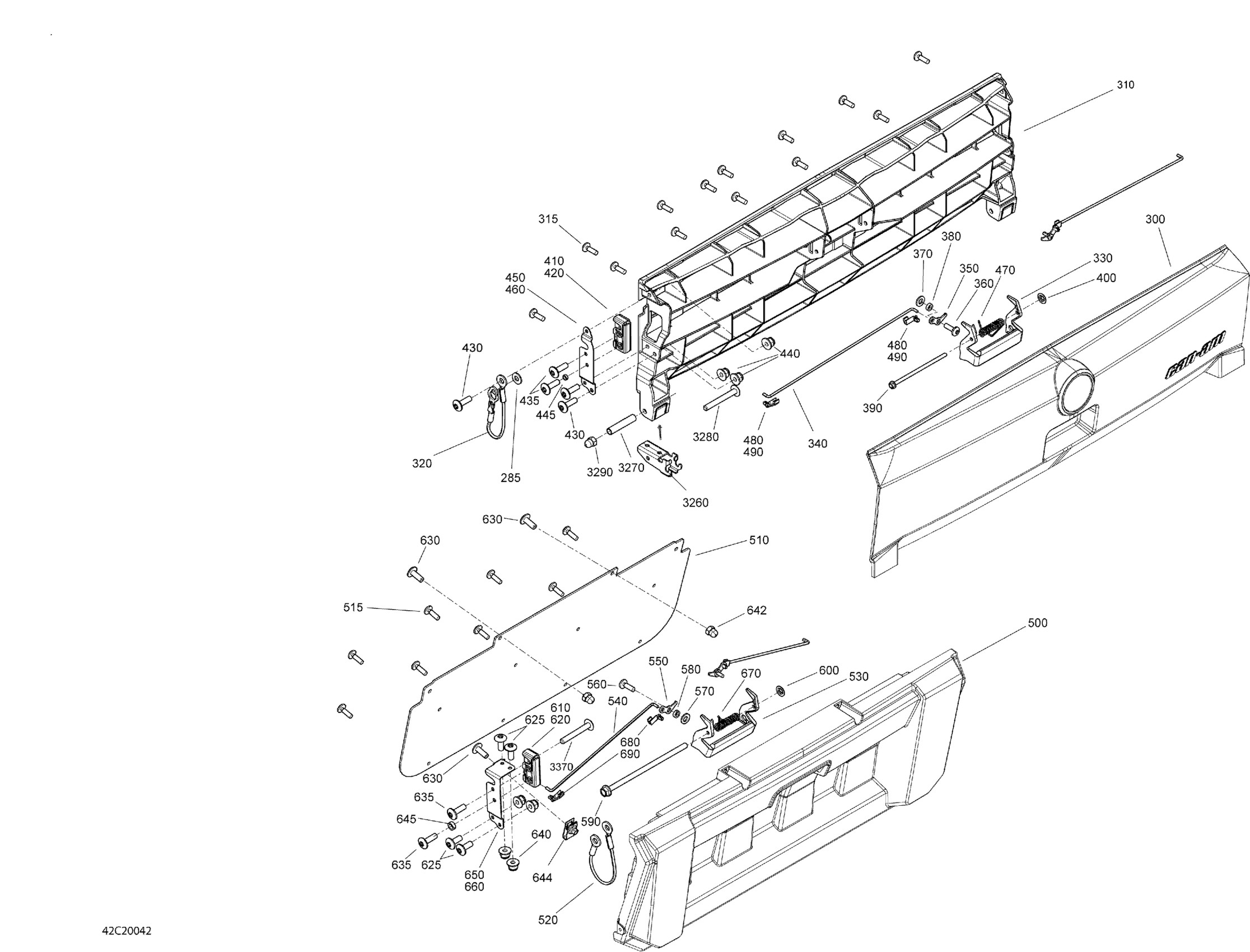

Can-Am 004 - Commander MAX 1000R EFI - North America, 2020 09- Rear Cargo Box - Door Diagram

#

Description
Price

285

Flat Washer

224061121

$0.53

300

Boreal Green, Top Panel | Timeless Black

708302766

$399.99

300

Asphalt Grey, Tailgate | Package LTD

708303146

$399.99

310

Inside Top Pannel

708300053

$139.99

315

Torx Screw K50 X 16

250000720

$1.69

320

Upper Retainer Cable

708300763

$33.99

330

Handle

708300398

$13.99

340

Top Rod

708300160

$3.39

350

Activator

708300184

$9.29

360

Torx Screw K50 X 16

250000720

$1.69

370

Flat Washer 6 mm

234061410

$1.36

380

Bushing

708300365

$5.89

390

Hex. Flange Screw M6 X 130

230663084

$3.38

400

Push Nut

732610072

$2.19

410

LH Latch

708300162

$23.99

420

RH Latch

708300201

$23.99

430

Torx Screw M6 X 20

250000722

$1.68

435

Torx Screw M6 X 20

250000722

$1.68

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

445

Bushing

708300737

$5.99

450

LH Upper Support

708300359

$10.49

460

RH Upper Support

708300360

$9.49

470

Spring

708300219

$4.79

480

LH Tie Rod Clip

708300182

$2.89

490

RH Tie Rod Clip

708300202

$2.89

500

Outside Bottom Pannel Ass'y

715002365

$154.99

510

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

515

Torx Screw K50 X 16

250000720

$1.69

520

Lower Retainer Cable

708300762

$16.99

530

Handle

708300398

$13.99

540

Lower Bottom Rod

708300164

$3.39

550

Activator

708300184

$9.29

560

Torx Screw K50 X 16

250000720

$1.69

570

Flat Washer 6 mm

234061410

$1.36

580

Bushing

708300365

$5.89

590

Hex. Flange Screw M6 X 130

230663084

$3.38

600

Push Nut

732610072

$2.19

610

LH Latch

708300162

$23.99

620

RH Latch

708300201

$23.99

625

Torx Truss Screw M6 X 16

250000721

$1.69

630

Torx Truss Screw M6 X 16

250000721

$1.69

635

Torx Screw M6 X 20

250000722

$1.68

640

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

642

Domed Nut M6

232361493

$2.11

644

Panel Nut M6 X 1.0

250100198

$2.11

645

Bushing

708300737

$5.99

650

LH Lower Support

708300361

$10.99

660

RH Lower Support

708300362

$9.69

670

Spring

708300219

$4.79

680

LH Tie Rod Clip

708300182

$2.89

690

RH Tie Rod Clip

708300202

$2.89

3260

Upper Pivot Support

708300345

$4.79

3270

Bushing

708300735

$13.49

3280

Torx Truss Screw M6 X 50

250000749

$3.17

3290

Domed Nut M6

232361493

$2.11

3370

Torx Screw M6 X 45

250000748

$1.90
