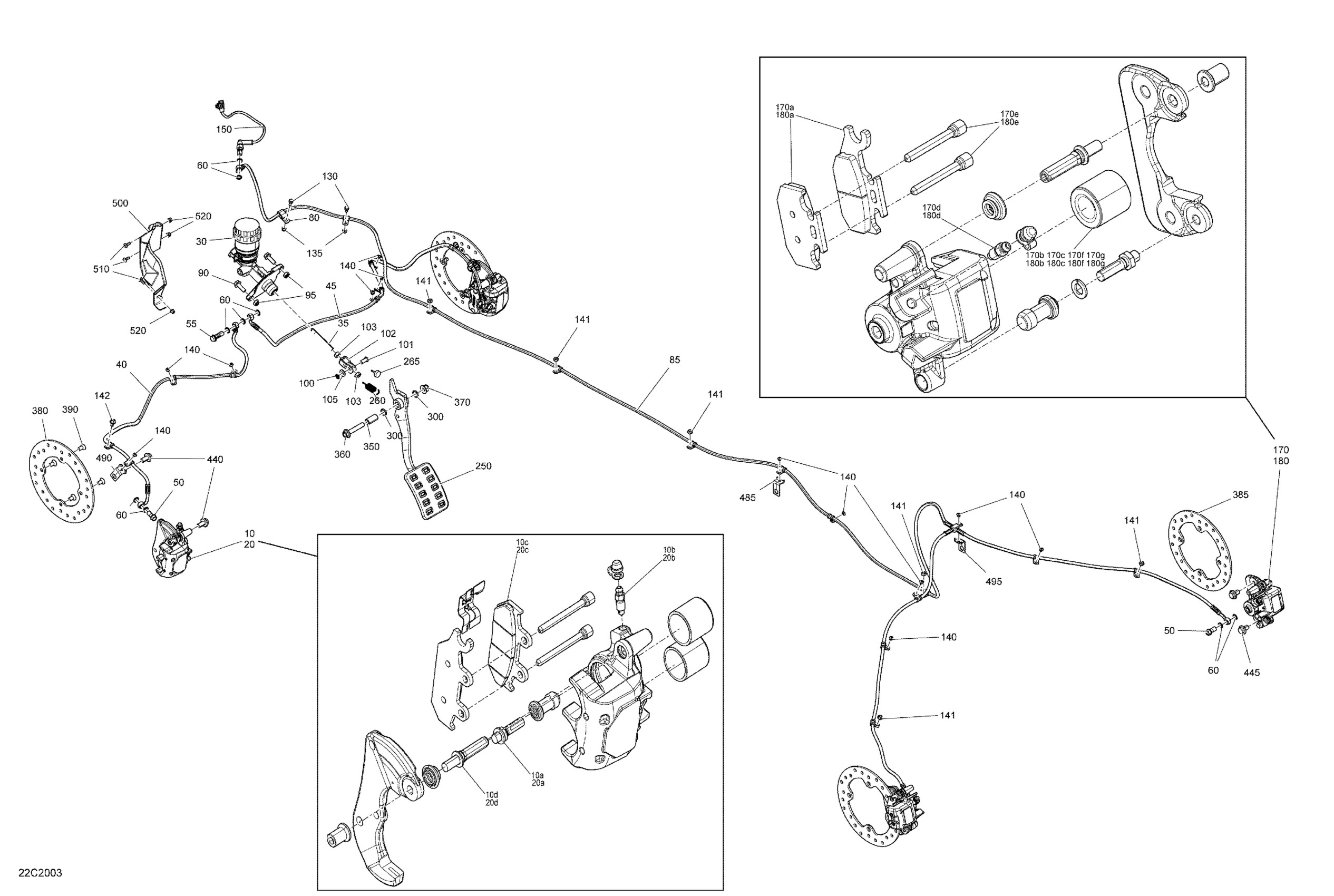

Can-Am 003 - Commander MAX 800R EFI - North America, 2020 06- Brakes Diagram

#

Description
Price

10

RH Caliper Ass'y | Includes 71 to 71d

705601129

$338.99

10a

Spring And Bolt Kit

715500385

$21.99

10b

Bleeding Screw

705600080

$16.87

10c

RH Brake Pad Kit

705601150

$51.99

10d

Hanger Pin Kit

705601151

$17.99

20

LH Caliper Ass'y | Includes 57 to 57d

705601128

$328.49

20a

Spring And Bolt Kit

715500385

$21.99

20b

Bleeding Screw

705600080

$16.87

20c

LH Brake Pad Kit

705601149

$51.99

20d

Hanger Pin Kit

705601151

$17.99

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

35

Master Cylinder Rod

705600833

$20.49

40

LH Front Hose | Includes 96 to 96a

705601194

$79.49

45

RH Front Flexible Hose Ass'y | Includes 1 to 1a

705601195

$79.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Banjo Bolt

705600958

$6.35

60

Copper Washer

705601628

$4.44

80

Clamp

293650220

$0.90

85

Rear Flexible Hose Ass'y | Includes 20 to 20a

705601173

$163.99

90

Hex. Flange Screw M8 X 25

207682534

$2.11

95

Hex. Elastic Stop Nut M8

232581414

$0.56

100

Cotter Pin

371800700

$1.01

101

Pin | Not Shown

250400058

$8.29

102

Yoke | Not Shown

705601142

$15.36

103

Hex. Nut M8

232081414

$0.72

105

Flat Washer M8

234081430

$2.11

130

Hex. Forming Screw M5 X 16

210251650

$1.15

135

Elastic Flange Nut M5

233251494

$2.11

140

Pop Rivet 3/16"

390402200

$0.35

141

Elastic Stop Nut M6

232561414

$0.55

142

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601250

$59.49

170

RH Rear Caliper Ass'y | Includes 90 to 90d

705601174

$338.99

170a

RH Brake Pad Kit

705601147

$51.99

170b

Piston Set

705600078

$38.99

170c

Spring

705600079

$15.81

170d

Bleeding Screw

705600080

$16.87

170e

Pin Set (2)

705600081

$20.49

170f

Compression Boot

705600082

$10.06

170g

Compression Boot

705600083

$10.06

180

LH Rear Caliper Ass'y | Includes 91 to 91d

705601175

$338.99

180a

LH Brake Pad Kit

705600398

$51.99

180b

Piston Set

705600078

$38.99

180c

Spring

705600079

$15.81

180d

Bleeding Screw

705600080

$16.87

180e

Pin Set (2)

705600081

$20.49

180f

Compression Boot

705600082

$10.06

180g

Compression Boot

705600083

$10.06

250

Brake Pedal

705600724

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

300

O-Ring

293300144

$3.82

350

Inner Spacer

705600815

$11.60

360

Hex. Flange Screw M10 X 55

207605544

$3.38

370

Hex. Flange Elastic Nut M10

233201414

$1.58

380

Disc Brake

705601178

$51.99

385

Brake Disc

705600684

$43.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

440

Hex. Flange Screw M10 X 20

250001134

$1.89

445

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

485

Bracket

705601337

$2.69

490

Bracket

705601337

$2.69

495

Bracket

705601337

$2.69

500

LH Front Deflector

705600917

$7.90

510

Torx Screw M5 X 14

250000742

$1.47

520

Elastic Flange Nut M5

233251494

$2.11
