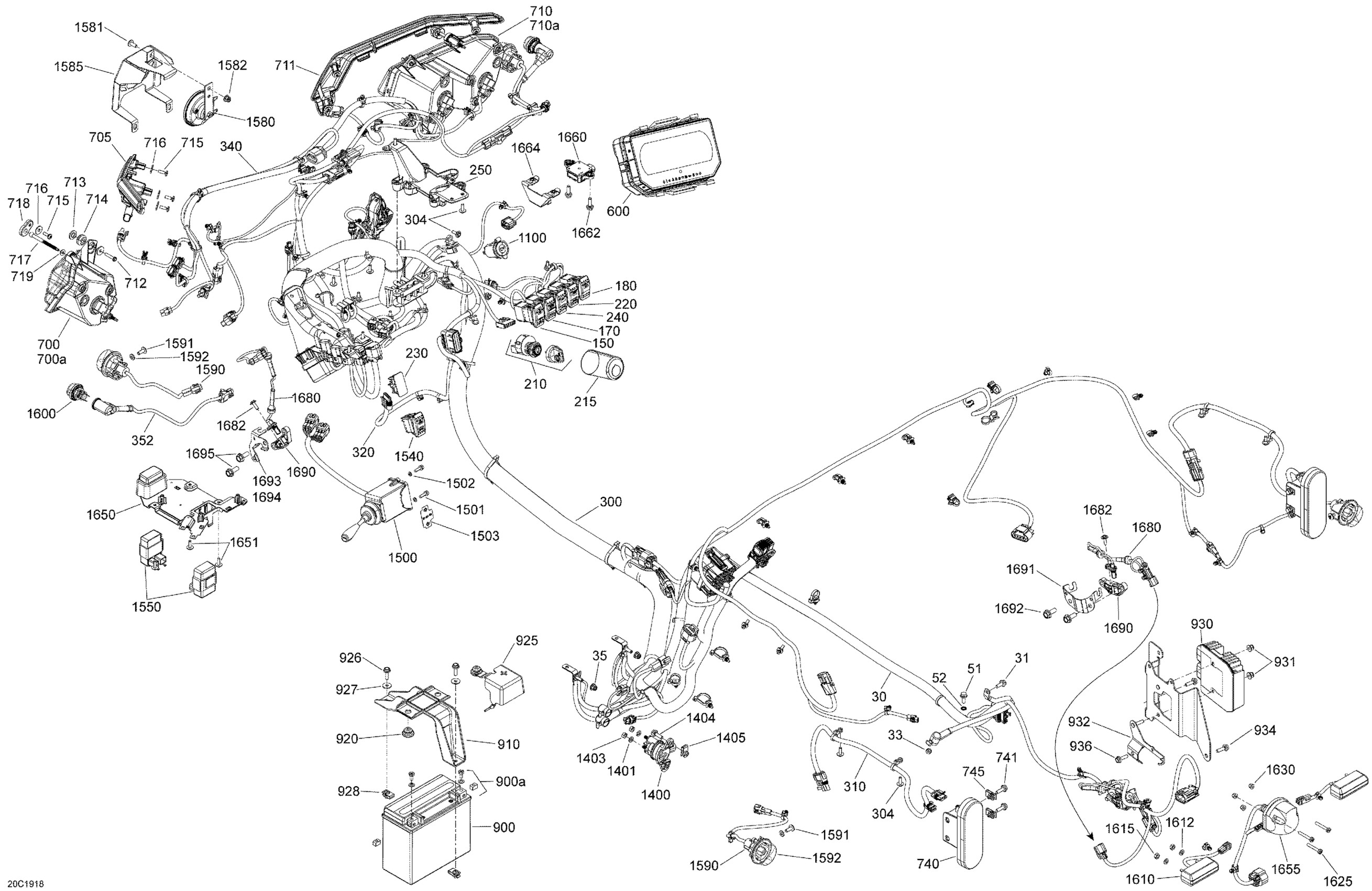

Can-Am 003 - Maverick Trail 1000 - DPS - T2B Series, 2019 10- Electric - Ssytem - Package DPS Diagram

#

Description
Price

30

Starter Wiring Harness

710006233

$169.99

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

33

Elastic Stop Nut M6

232561414

$0.55

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

52

External Serrated Lock Washer 6 mm

234461608

$1.15

150

Switch 2X4

710005489

$31.99

170

Differential Lock Switch

710005470

$46.49

180

Switch HDC

710006553

$24.99

210

Inter Allumage *Ignition

710007870

$55.99

215

Key Switch Protector

710005739

$2.69

220

Driving Mode Switch

710005909

$36.49

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

240

Cluster Navigator Switch

710006183

$37.49

250

Housing Support

710005672

$10.49

300

Main Wiring Harness

710006235

$929.99

304

Screw PT Type K-50 X 16

250000959

$2.11

310

Rear Harness

710006551

$43.99

320

Trottle Pedal Harness

710005929

$239.99

340

Front Wiring Harness

710006218

$109.99

352

Position Light Harness

710005676

$15.49

600

Speedometer

710006723

$459.99

700

LH Headlamp | Includes 700 TO 700a

710006422

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Signature Beam

710004994

$169.99

710

RH Headlamp

710006423

$199.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Signature Beam

710004995

$169.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.69

715

Torx Screw K50 X 16

250000720

$1.69

716

Stainless Steel Flat Washer

234062670

$2.11

717

Ajustment Screw

710005837

$6.35

718

Adjustment Guide

710005097

$9.59

719

O-Ring

293300192

$4.92

740

Tail Light

710004257

$91.99

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

910

Fixation Plate

710005673

$13.49

920

Stopper Rubber

705014429

$5.95

925

Battery Cable Cap

710005930

$10.49

926

Hex. Flange Screw M6 X 20

207662054

$1.01

927

Stainless Steel Flat Washer

234062670

$2.11

928

Panel Nut M6 X 1.0

250100198

$2.11

930

Voltage Regulator

710005842

$189.99

931

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

932

Voltage Regulator Attach

710006402

$10.49

934

Voltage Regulator Support

710006656

$11.99

936

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1100

12V Power Outlet

710005374

$33.99

1400

Starter Relay

278003012

$42.49

1401

Lock Washer Helical M6

234161601

$1.15

1403

Hex. Nut M6

232061600

$1.15

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1405

Panel Nut M6 X 1.0

250100198

$2.11

1500

Turn Signal | Europe

710001721

$209.99

1501

Hex. Forming Screw M5 X 16

210251650

$1.15

1502

Lock Washer 5 mm | Europe

234151401

$0.55

1503

Flasher Decal | Europe

704902614

$19.99

1504

Tuflok Plastic Rivet

293150230

$1.47

1540

Hazard Lights Switch

710006107

$19.49

1550

Flasher Unit

710003239

$78.49

1580

Horn

710004791

$38.99

1581

Torx Truss Screw M6 X 16

250000721

$1.69

1582

Hex. Flange Elastic Nut M6

233261494

$1.58

1585

Horn Bracket

710006055

$65.99

1590

Flasher | Europe

710002964

$35.99

1591

Torx Truss Screw M6 X 16

250000721

$1.69

1592

Flat Washer 6 mm

234061410

$1.36

1594

Dart Tie Rap 200MM

710003168

$7.09

1600

Day Light | Europe

710001726

$35.99

1600a

Cap Protector | Model-Europe

710003269

$12.11

1610

License Light

710002055

$58.49

1610a

Bulb

219800128

$2.46

1612

Lock Washer Helical M6

234161601

$1.15

1615

Hex. Nut M6

232061600

$1.15

1625

Phillips Screw M5 X 35

208653560

$2.22

1630

Hex. Flange Elastic Nut M5

233251414

$1.04

1650

Support Connector

710006056

$6.49

1651

Screw PT Type K-50 X 16

250000959

$2.11

1652

Screw PT Type K-50 X 16

250000959

$2.11

1655

Trailer Wiring Harness

710006245

$119.99

1660

Yaw Rate Sensor

710005658

$179.99

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

1664

Yaw Sensor Support

710006501

$34.99

1680

Speed Sensor

710006981

$83.99

1682

Screw PT Type K-50 X 16

250000959

$2.11

1683

Clip (double dart)

278002910

$11.12

1684

Clip

710001343

$9.09

1690

Sensor Support

705402088

$2.54

1691

ABS Harness Support

710006452

$19.99

1692

Hex Screw Washer Head M8 X 20

207582054

$3.17

1693

RH ABS Harness Support

710006554

$19.99

1694

LH ABS Harness Support

710006555

$19.99

1695

Hex Screw Washer Head M8 X 20

207582054

$3.17
