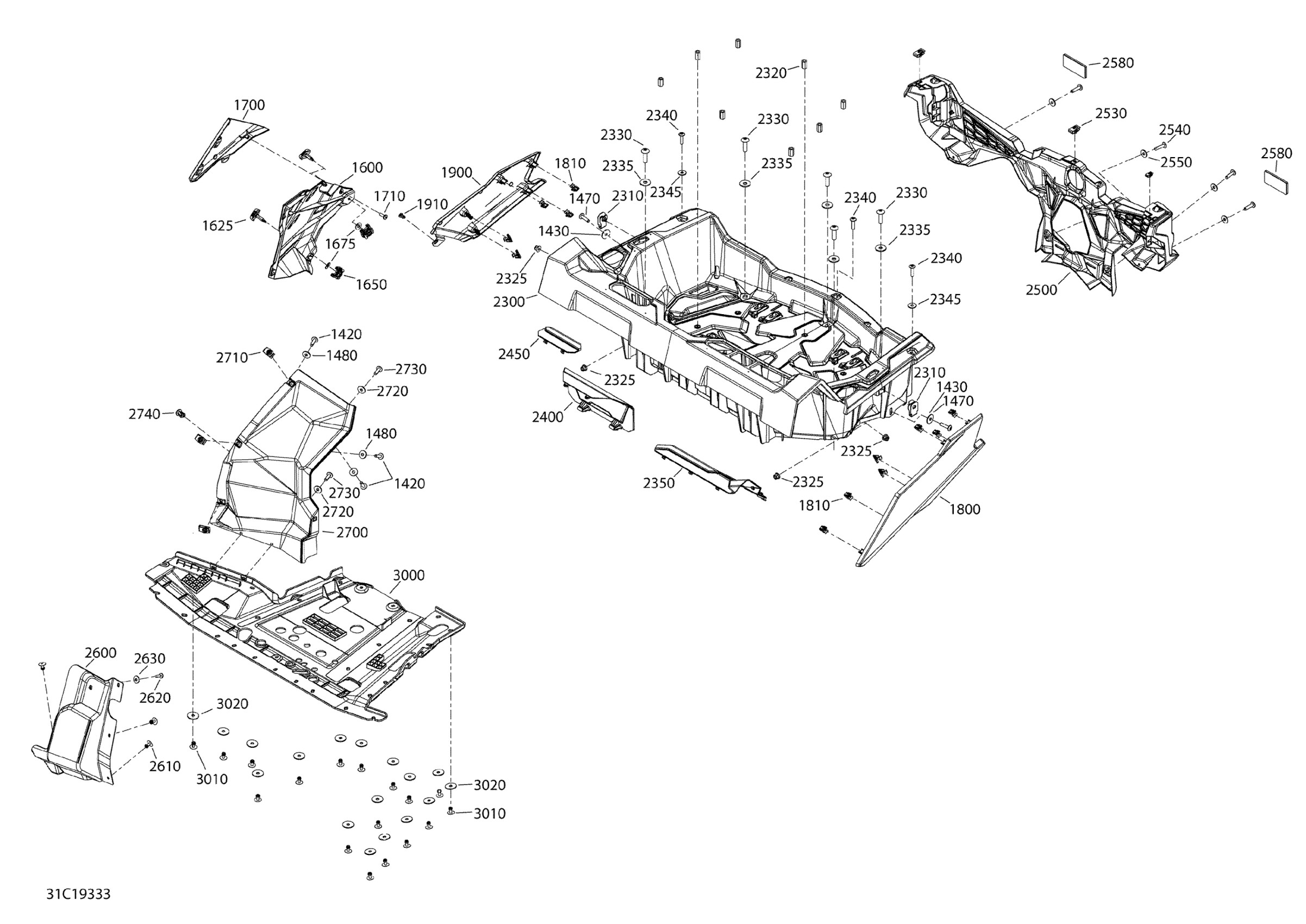

Can-Am 003 - Maverick Trail 1000 - DPS - T2B Series, 2019 09- Body Maverick Trail - 1000 - Red - Rear Section Diagram

Description

Price

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1470

Torx Truss Screw M6 X 25

250000807

$2.11

1480

Stainless Steel Flat Washer

234062670

$2.11

1600

Air Filter Acces Door

705011338

$75.99

1625

Quarter Turn

708400278

$4.29

1650

Clip

708400285

$3.99

1675

Washer

708400286

$3.99

1700

Red, Acces Panel Trim | DPS, Red Model

705016392

$109.99

1710

Torx Screw K50 X 16

250000720

$1.69

1800

Red, LH Rear Cargo Trim | DPS, Red Model

705012427

$189.99

1810

Clip

517306478

$1.09

1900

Red, RH Rear Cargo Trim | DPS, Red Model

705012428

$189.99

1910

Tuflok Plastic Rivet

293150230

$1.47

2300

Rear Box

705016885

$399.99

2310

Panel Nut M6 X 1.0

250100224

$2.11

2320

Hex. Coupling Nut M6

250100207

$2.00

2325

Hex. Flange Elastic Nut M6

233261466

$2.00

2330

Hex Torx Truss M8 X30

250000745

$3.17

2335

Stainless Steel Flat Washer

234082670

$2.11

2340

Torx Truss Screw M6 X 25

250000807

$2.11

2345

Stainless Steel Flat Washer

234062670

$2.11

2350

CVT Air Inlet Cover

705011339

$18.99

2400

Liquid Acces Cover

715006150

$38.99

2450

Air Intake Cover

705011340

$16.99

2500

Rear Fascia

705011426

$169.99

2530

Panel Nut M6 X 1.0

250100198

$2.11

2540

Torx Truss Screw M6 X 25

250000807

$2.11

2550

Stainless Steel Flat Washer

234062670

$2.11

2580

Red Reflector

520001820

$20.99

2600

LH Rear Wheel Arch Protector

705014231

$41.49

2610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Inner Fender

705011513

$41.49

2710

Panel Nut M6 X 1.0

250100198

$2.11

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Torx Screw M6 X 20

250000722

$1.68

2740

Tuflok Plastic Rivet

293150230

$1.47

3000

Rear Skid Plate

705014697

$98.49

3010

Pop Rivet 3/16”

293150087

$0.93

3020

Washer

224060251

$0.58
