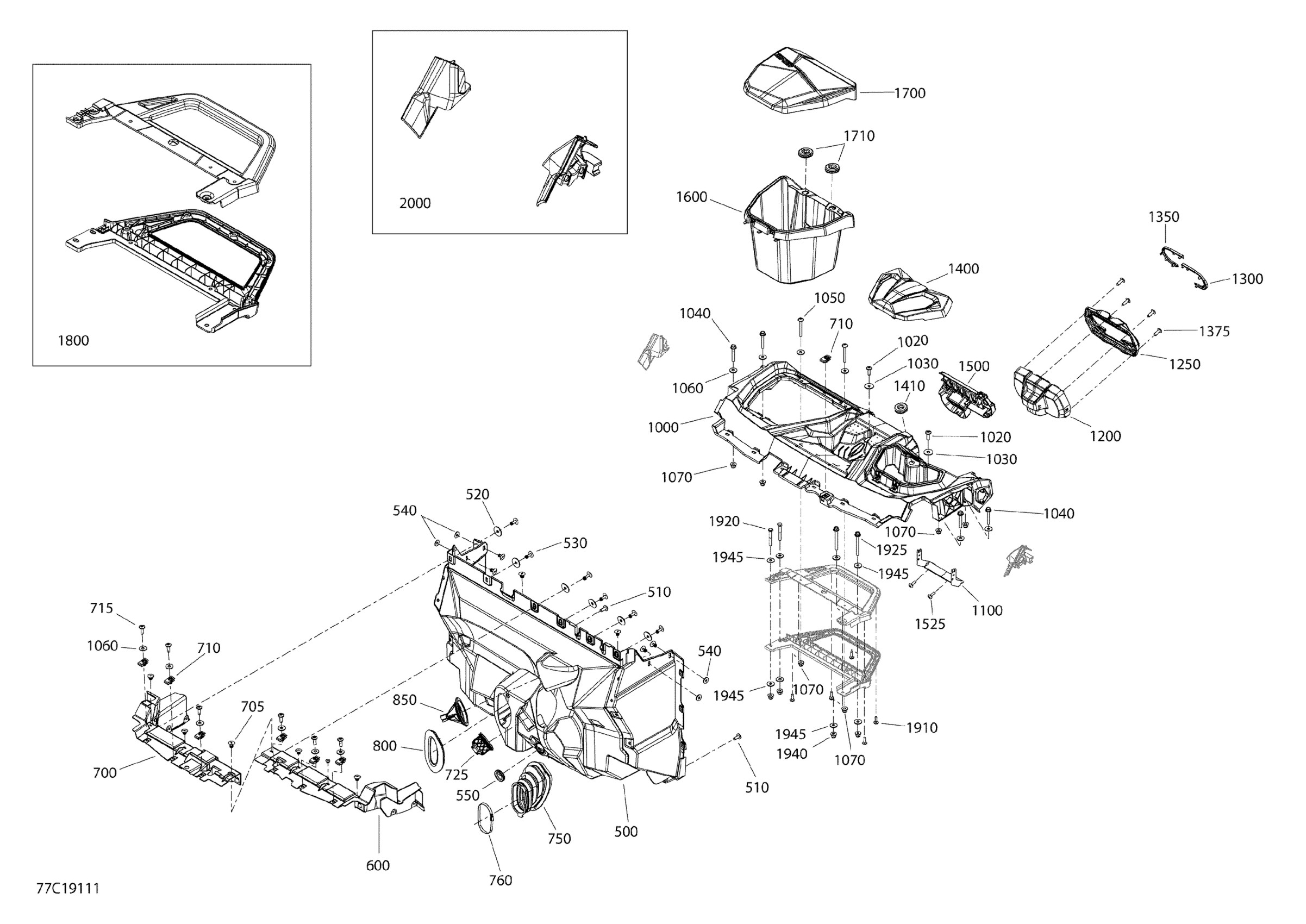

Can-Am 001 - Maverick Sport 1000R - DPS - T1B Series, 2019 09- Cab - Dash Section Diagram

Description

Price

500

Kit Lower Front Bulkhead

703501096

$689.99

510

Torx Truss Screw M6 X 16

250000721

$1.69

520

Flat Washer M6 X 25

250200044

$2.69

530

Pop Rivet 3/16"

293150100

$1.09

540

Washer M5

250200025

$0.74

550

Rubber Cover

293250242

$6.99

600

LH Upper Front Bulkhead

707900513

$18.99

700

RH Upper Front Bulkhead

707900514

$18.99

705

Pop Rivet 3/16"

293150100

$1.09

710

Panel Nut M6 X 1.0

250100198

$2.11

715

Torx Screw M6 X 20

250000722

$1.68

725

Steering Column Deflector

707900511

$10.49

750

Break Pedal Deflector

707900515

$20.99

760

Norma Gear Clamp

514052983

$15.89

800

Gas Pedal Deflector

707900516

$14.49

850

Front Rubber Deflector

707900517

$13.49

1000

Dashboard

715005843

$199.99

1020

Torx Screw M6 X 20

250000722

$1.68

1030

Flat Washer M6.6 X 22

250200162

$2.32

1040

Hex. Flange Screw M6 X 40

207664044

$2.22

1050

Torx Truss M6 X 50

250000868

$2.11

1060

Stainless Steel Flat Washer

234062670

$2.11

1070

Hex. Flange Elastic Nut M6

233261466

$2.00

1100

Dash Support

707900941

$9.79

1200

Rear Gauge Trim

709402141

$23.99

1250

Front Gauge Trim

709402142

$22.49

1300

Deep Black, LH Trim Gauge

705012349

$5.59

1350

Deep Black, RH Trim Gauge

705012351

$5.59

1375

Torx Truss Screw K40 X 12

250000577

$2.11

1400

Storage Cover

707900522

$16.49

1410

Grommet

517303756

$4.09

1500

Switch Support

707900523

$18.54

1525

Torx Screw K50 X 16

250000720

$1.69

1600

Glove Box

715005011

$57.99

1700

Glove Box Cover

715005847

$83.99

1710

Oblong Grommet

707900663

$2.79

1800

Passenger Handle Bar Kit

707900559

$34.99

1910

Torx Screw K50 X 16

250000720

$1.69

1920

Hex. Flange Screw M6 X 40

207664044

$2.22

1925

Hex. Flange Screw M6 X 60

250000778

$4.44

1940

Hex. Flange Elastic Nut M6

233261466

$2.00

1945

Stainless Steel Flat Washer

234062670

$2.11

2000

Front Cage Trim Kit

707900531

$28.99
