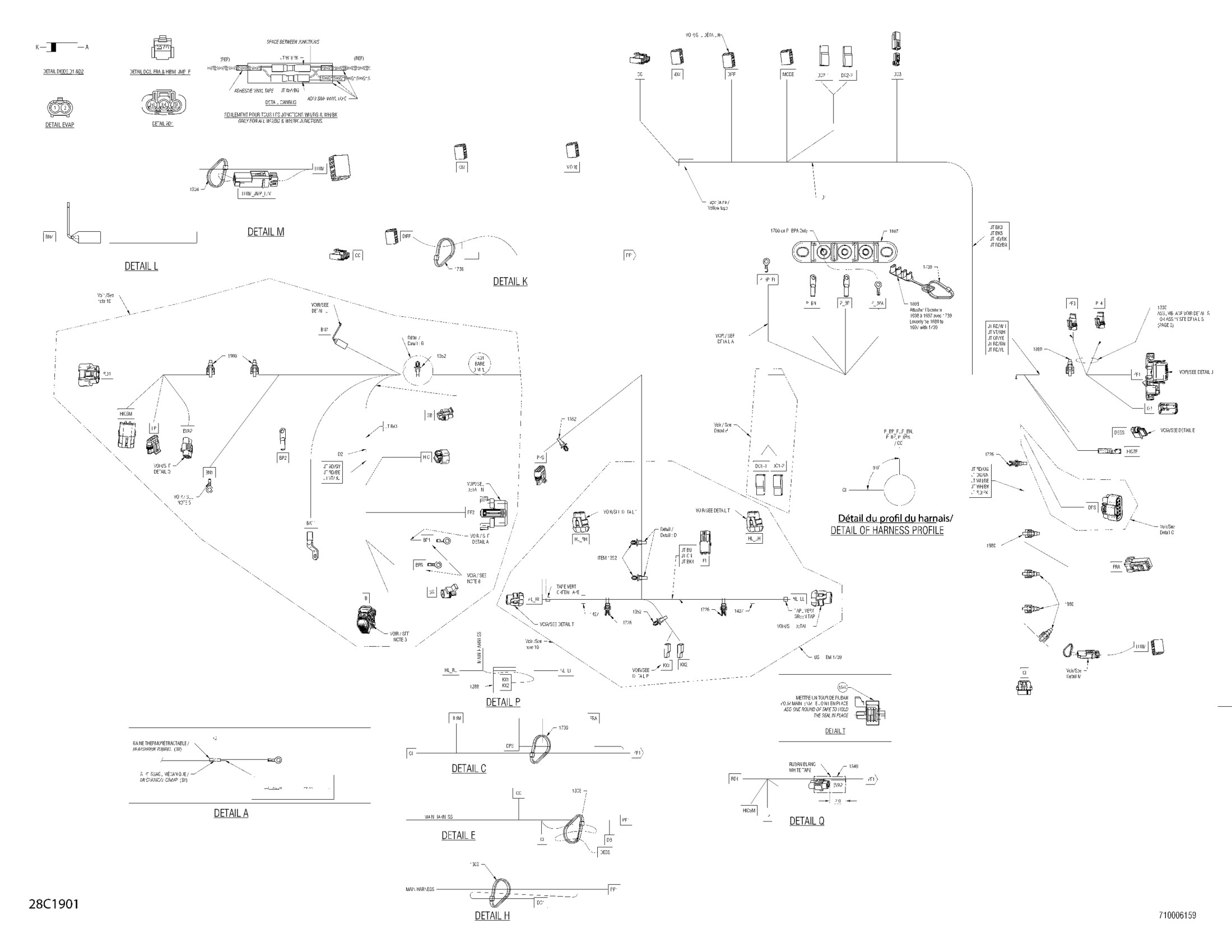

Can-Am 001 - Traxter HD5 - T1B Series, 2019 10- Main Harness 710006159 Diagram

#

Description
Price

300

Wiring Harness Main

710006159

$929.99

4X4

Housing

710002000

$7.90

4X4

Female Terminal

710005491

$2.09

4X4

Terminal

710003047

$3.49

4X4

Terminal

710003048

$4.39

B

Cover, 48 positions

710001591

$12.18

B

Female Terminal Housing, 48 Circuits

710001588

$48.49

B

Plug

710001592

$2.21

B

Plug

710001593

$2.21

B

Female Terminal

710001727

$3.19

B

Terminal

710001728

$6.79

B

Female Terminal

710001589

$2.21

BAT-1

Open Barrel | XT Models

710000519

$9.95

BAT-1

Protector Cap | STD Models

710001829

$9.95

BN1

Terminal

710000913

$5.61

BP1

Open Barrel

278000992

$2.21

BP2

Open Barrel | STD Models

710000518

$11.12

BPR

Terminal

710000913

$5.61

CC

Male Housing, 6 Circuits

710000849

$9.69

CC

Lock

710000848

$3.19

CC

Female Terminal

710000274

$9.59

CC

Terminal | Canada/Usa

710001635

$3.19

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

Plug

515175812

$2.19

CI

Female Housing

710000399

$16.49

CI

Wire Seal

515175803

$2.99

CI

Female Terminal

710001131

$8.89

D1

Diode

409012700

$11.12

D2

Diode

409012700

$11.12

DB

Female Housing 6 Circuits

710002706

$20.49

DB

Lock

710002705

$4.44

DB

Plug

710005437

$3.17

DB

Female Terminal

710005438

$4.29

DB

Female Terminal

710005439

$4.44

DC1_1

Female Terminal Housing, 1 Circuit

409010400

$7.62

DC1_2

Female Terminal Housing, 1 Circuit

409010400

$7.62

DC2_1

Female Terminal Housing, 1 Circuit

409010400

$7.62

DC2_2

Female Terminal Housing, 1 Circuit

409010400

$7.62

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS

Housing

710001161

$11.12

DESS

Lock

710001162

$3.19

DESS

Cap

710001225

$9.19

DESS

Wire Seal

710001163

$7.69

DESS

Female Terminal

710001164

$8.89

DIFF

Housing

710002000

$7.90

DIFF

Female Terminal

710005491

$2.09

DIFF

Terminal

710003047

$3.49

DIFF

Terminal

710003048

$4.39

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

EVAP

Wire Seal

710000402

$4.55

EVAP

Female Terminal

409012100

$4.55

FL-1

Fuse Link 21-30AMP

715002536

$16.86

FL-2

Fuse Link 41-50AMP

715002538

$21.99

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FP

Female Terminal

710001340

$5.89

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

710003896

$2.19

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIBM

Housing

710002000

$7.90

HIBM

Terminal

710003047

$3.49

HIBM

Terminal

710003048

$4.39

HIBM

Female Terminal

710005491

$2.09

HIBM_JMP_F

Female Housing, 2 Circuits

515175658

$16.18

HIBM_JMP_F

Female Terminal

515175231

$4.39

HIBM_JMP_M

Male Terminal Housing, 2 Circuits

515175654

$9.12

HIBM_JMP_M

Male Terminal

515175232

$1.58

HIC

Female Housing, 12 Circuits

710001930

$15.80

HIC

Lock

710001222

$2.09

HIC

Lock

710006333

$6.79

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC5M

Clip

293650187

$4.97

HIC5M

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

HIC5M

Wire Seal

278001065

$7.69

HIC5M

Male Terminal | XT Models

278000222

$3.19

HIC7_F

Insulated Sheath

278000770

$7.90

HIC7_F

Female Terminal

710000421

$6.11

HL_LH

Housing

710002578

$3.19

HL_LH

Lock

710002584

$4.39

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$1.04

HL_LL

Housing

710002578

$3.19

HL_LL

Lock

710002584

$4.39

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$1.04

HL_RH

Housing

710002578

$3.19

HL_RH

Lock

710002584

$4.39

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$1.04

HL_RL

Housing

710002578

$3.19

HL_RL

Lock

710002584

$4.39

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$1.04

JB-1

Cover

710004826

$20.99

JB-1

3-Positions Pole

710004825

$19.09

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.23

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX1

Female Terminal

409010100

$5.61

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX2

Female Terminal

409010100

$5.61

MODE

Housing

710002000

$7.90

MODE

Terminal

710003047

$3.49

MODE

Terminal

710003048

$4.39

MODE

Female Terminal

710005491

$2.09

P_BP_FL

Open Barrel

278000992

$2.21

P_BPA

Open Barrel

278000992

$2.21

PF1

Fusebox Support

710005753

$8.96

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Box Decal

710005773

$15.49

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Screw K40 X 10

241140060

$1.48

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

278001065

$7.69

PF1

Wire Seal

710000048

$7.69

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1

Female Terminal

515177177

$6.49

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R8

Relay

715900824

$21.99

PF1-R9

Relay, 50 AMP

515176775

$15.79

PF1-SPARE

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Fuse Box Cover

515177451

$14.24

PF2

Logo Fuse Relay

710006106

$66.99

PF2

Case Ass'y with seal, 24 positions

278002824

$35.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2_SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000113

$6.99

PF4-F21

Fuse

710001613

$8.79

PPS

Female Terminal Housing 6 Circuits

278002299

$9.10

PPS

Female Terminal

710001119

$5.39

RD1

Female Housing, 3 Circuits

710000879

$25.99

RD1

Lock

710005830

$4.23

RD1

Seal

710001932

$3.27

RD1

Terminal

710001934

$5.50

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Seal Wire

710001153

$2.21

SS

Female Terminal

710001164

$8.89

300

Wiring Harness Main | NXTM

710006160

$929.99
