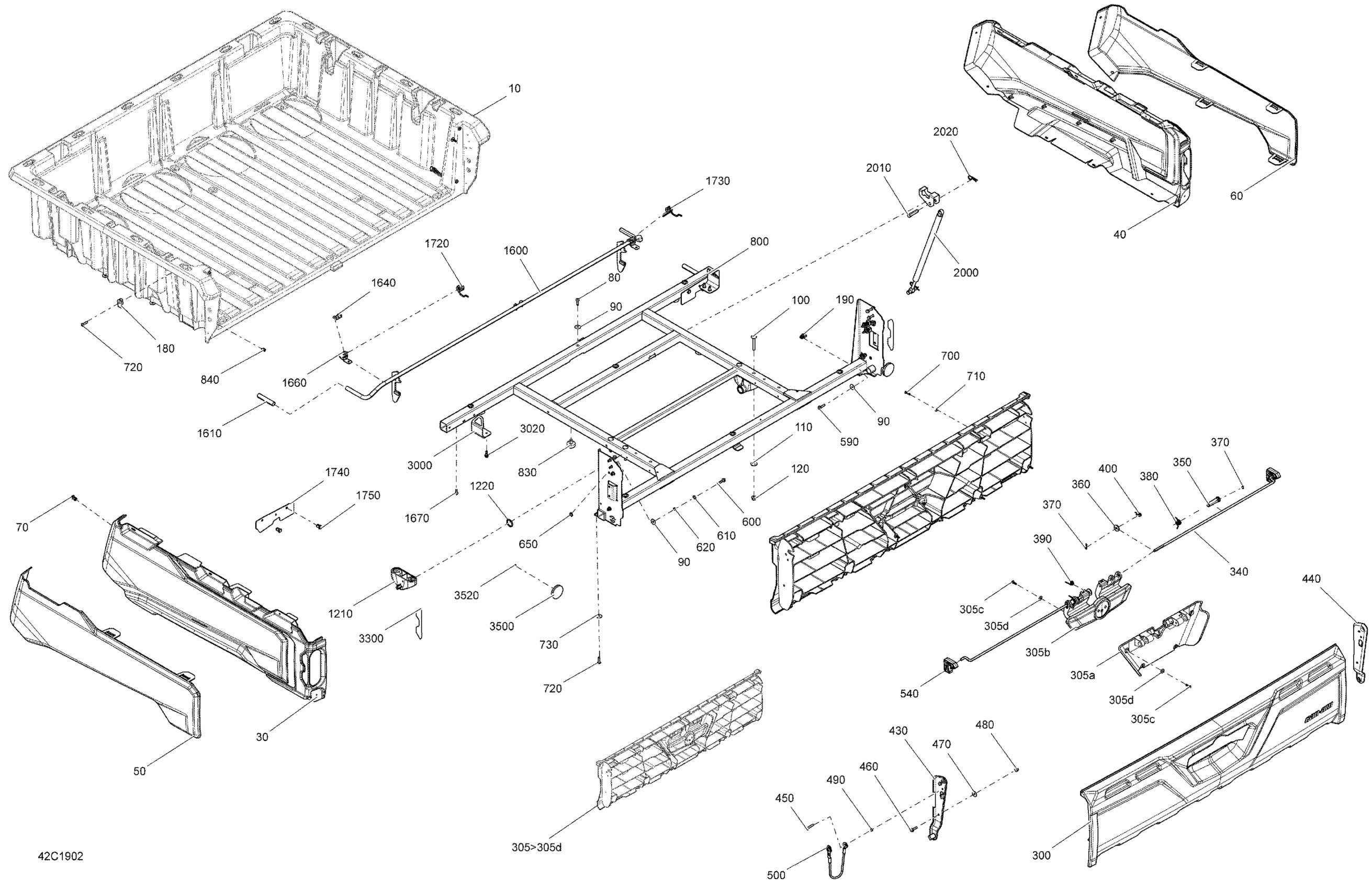

Can-Am 001 - Traxter HD5 - T1B Series, 2019 09- Rear Cargo Box - T1B - HD5 Diagram

#

Description
Price

10

Cargo Box Inside Kit

715006148

$519.99

30

LH Panel Exterior

708304328

$189.99

40

RH Panel

708302579

$184.99

50

Sunburst Yellow, LH Box Trim | Sunburst Yellow Models

708302469

$309.99

50

Timeless Black, LH Open Carrier Trim

708303601

$284.99

60

Sunburst Yellow, RH Trim Box | Sunburst Yellow Models

708302470

$309.99

60

Timeless Black, RH Open Carrier Trim

708303611

$289.99

80

Torx Screw M6 X 25 | XT Models

250000728

$4.44

90

Flat Washer M6.6 X 22

250200162

$2.32

100

Carriage Bolt M8 X 60

207786044

$14.21

110

Flat Washer 8 mm

234082410

$1.47

120

Hex. Flange Elastic Nut M8

233281414

$1.47

180

Panel Nut M6 X 1.0

250100224

$2.11

190

Panel Nut M6 X 1.0

250100198

$2.11

200

Deflector

708302584

$16.99

210

Pop Rivet 3/16”

293150108

$1.19

220

Washer

517124300

$0.19

300

Outside Tailgate

708301227

$124.99

305

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

$369.99

305a

Handle Support

708302913

$27.99

305b

Handle

708302911

$25.99

305c

Torx Screw Truss Head K50X20 T20

250000760

$2.11

305d

Washer M5

250200025

$0.74

340

Handle Rod

708301500

$6.59

350

Bushing Hinge

708304564

$3.39

360

Washer

708301653

$2.61

370

Hairpin Cotter

269800431

$1.29

380

Spring

705009468

$5.99

390

Spring

705009470

$13.49

400

Spring

705009471

$13.49

430

LH Tailgate Support

708304219

$24.49

440

RH Tailgate Support

708304221

$28.99

450

Hex. Flange Screw M6 X 35

207663554

$2.11

460

Hex. Flange Screw M6 X 25

207662554

$1.48

470

Flat Washer M6.6 X 22

250200162

$2.32

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

490

Bushing

708300737

$5.99

500

Cable

708301491

$31.99

540

Stopper Latch

708304023

$10.99

590

Hex. Flange Screw M6 X 25

207662554

$1.48

600

Hex. Flange Screw M6 X 35

207663554

$2.11

610

Flat Washer

224061121

$0.53

620

Bushing

708300737

$5.99

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

700

Torx Screw Truss Head K50X20 T20

250000760

$2.11

710

Washer M5

250200025

$0.74

720

Torx Truss Screw M6 X 25

250000807

$2.11

730

Flat Washer M6.6 X 22

250200162

$2.32

800

Cargo Box Frame

708302740

$339.99

830

Rubber Stopper

708001827

$6.89

840

Rubber Bumper

293830005

$8.09

1210

Support Pivot

708303735

$17.49

1220

O-Ring

293300131

$5.29

1600

Latch Ass'y

708302296

$85.99

1610

Cap Latch Lever

708300358

$6.59

1640

Half Ring

705500033

$8.29

1660

Clamp Retainer

708301479

$3.98

1670

Hex. Flange Screw M6 X 16

210261640

$2.11

1720

Spring

708301983

$8.69

1730

Spring

708301984

$4.79

1740

Deflector

708302267

$14.99

1750

Tuflok Plastic Rivet

293150230

$1.47

2000

Gas Shock Absorber

715007129

$54.99

2010

Clevis Pin

250400075

$5.99

2020

Hair Pin

414575600

$1.89

3000

Retaining Plate

708301480

$9.69

3020

Hex. Flange Screw M6 X 20

207662054

$1.01

3500

Red Reflector

705011221

$14.49

3520

Elastic Stop Nut M5

232551414

$0.87
